20. The DC Power to PCBA Cable routes to the
Power Inlet. Using a 15mm open faced wrench,
remove the securing washer from the Power Inlet.
NOTICE: Do not cut or pinch the cables.
21. Attach the new DC Power to PCBA Cable to the
Frame.
NOTICE: Do not cut or pinch the cables.
22. Route the new Cable along the old Cable, through
the two securing clips.
NOTICE: Do not cut or pinch the cables.
23. Connect the new Cable to the PCBA, and remove
the old DC Power to PCBA Cable from the
machine.
NOTICE: Do not cut or pinch the cables.

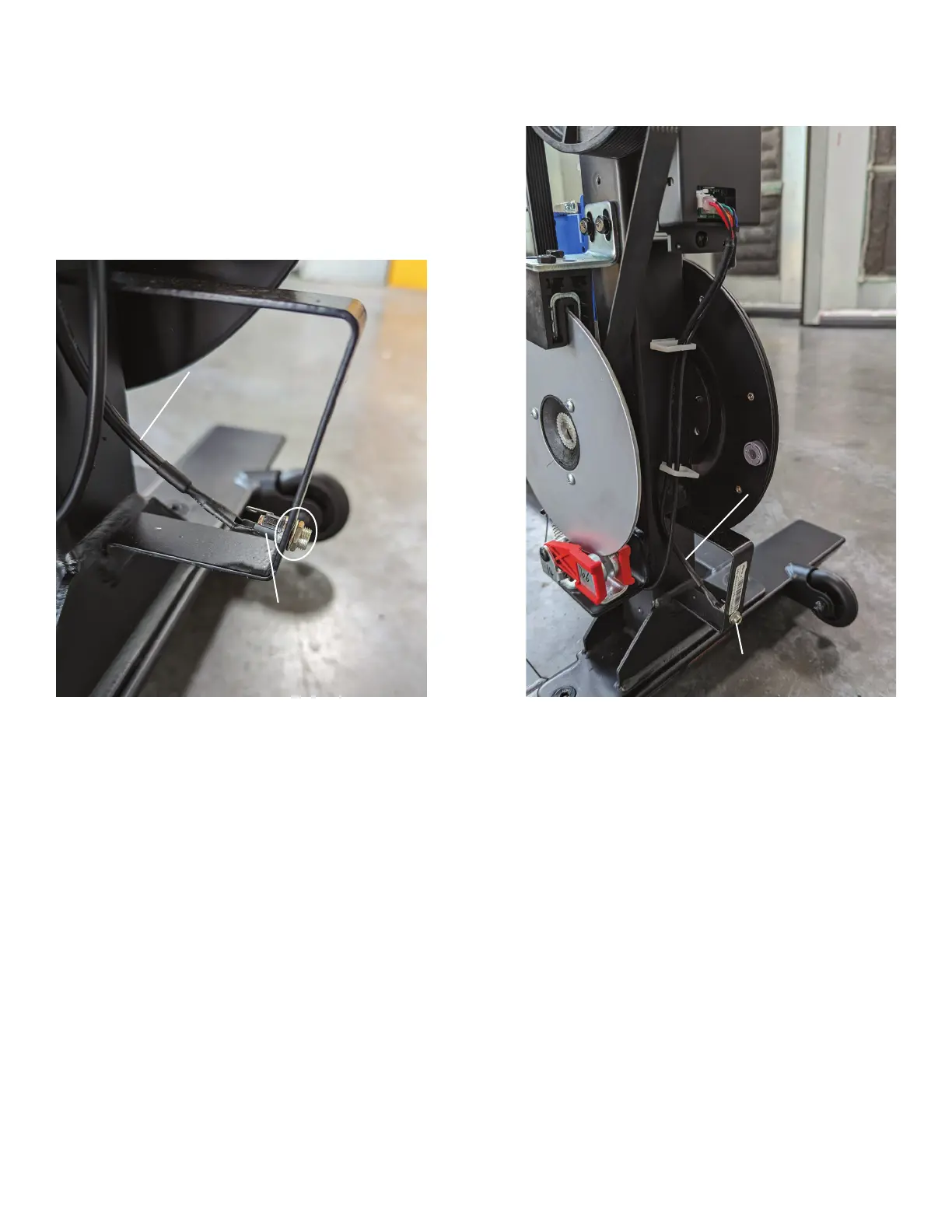

DC Power to
PCBA Cable
Power Inlet
DC Power to
PCBA Cable
Power Inlet
