52

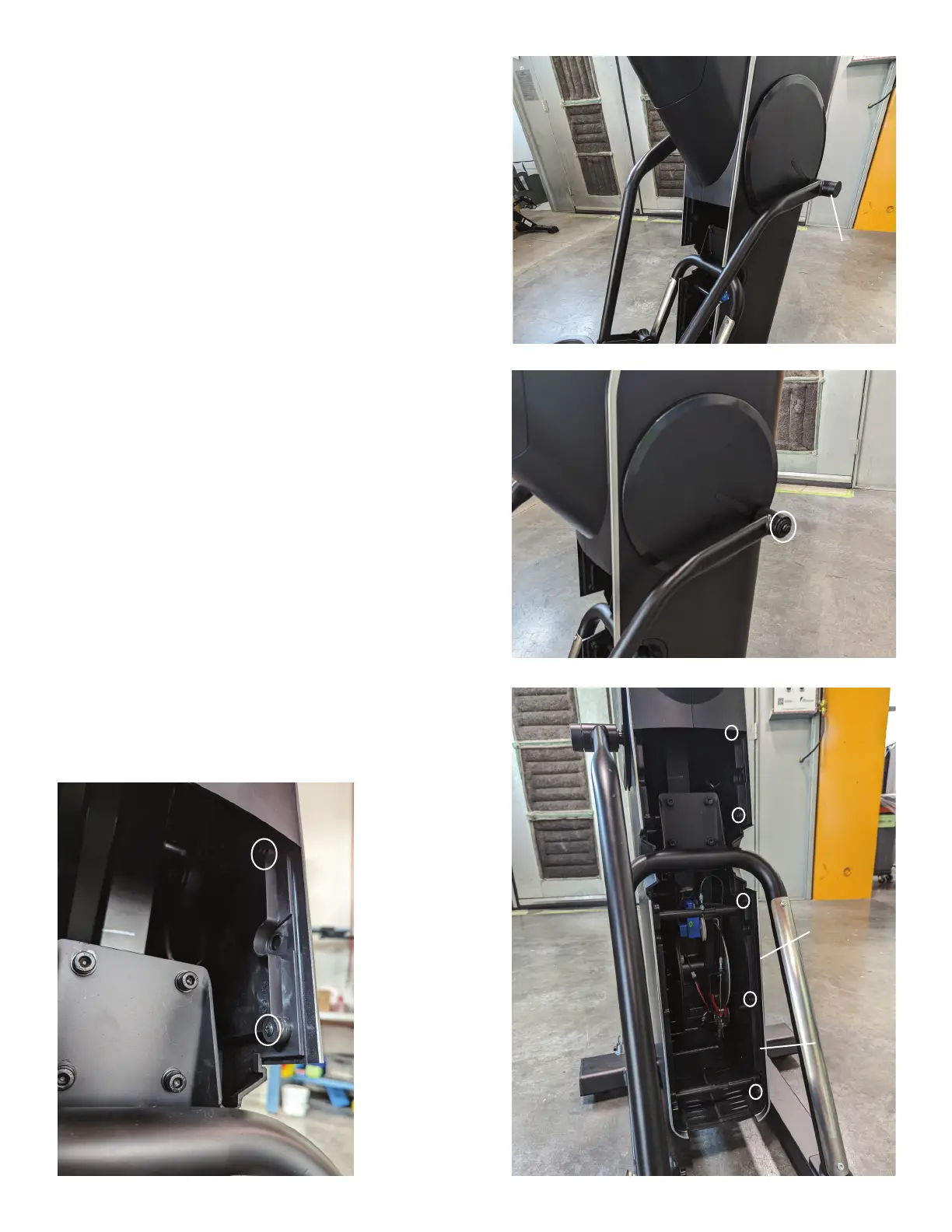

Note: The following images show the removal of the
Right Decorative Shroud. The procedure is the same for
the Left Decorative Shroud.
3. Remove the Cap from the hardware that secures
the Leg Assembly.
5. Using a Short #2 Phillips screwdriver, remove
the 5 screws (indicated by ovals) that secure the
Decorative Shroud to the Structural Shroud.
Note: The upper screw is slightly under the Structural
Shroud.
Decorative
Shroud
(outer)
Structural
Shroud
(inner)
Cap
4. Using a 14mm open faced wrench, remove the
hardware that attaches the Leg Assembly. Remove
the Leg Assembly from the Frame Assembly.
