Replacing Parts

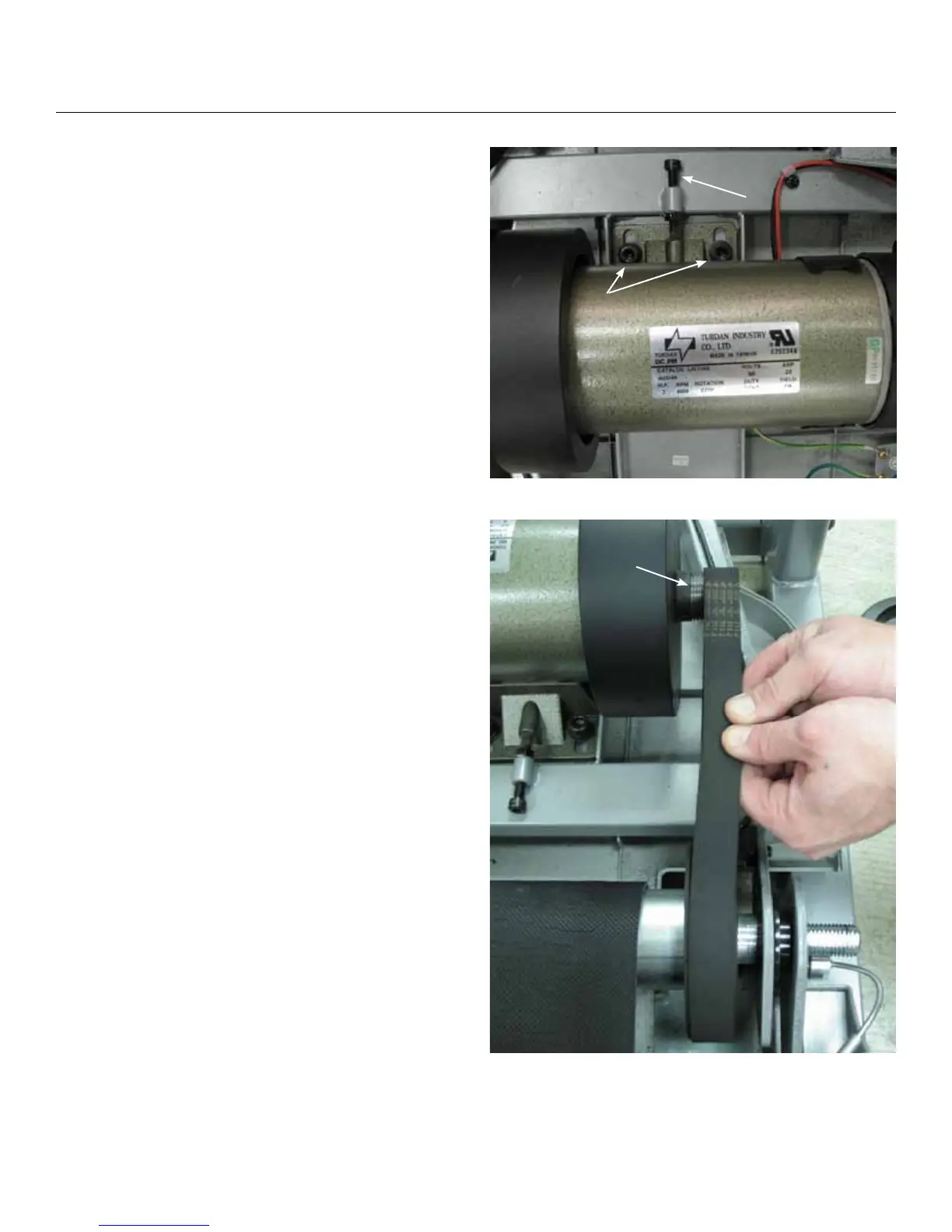

3. Loosen the motor mounts. Release motor belt tension
by loosening the motor tension bolt. (See Figure 3.)
4. Remove motor drive belt from the motor pulley
(Figure 4). Slowly turn the motor pulley to help
“walk” the belt off the pulley.
Figure 3
Motor Tension Bolt
Motor Mounts
Figure 4
Motor
Pulley
Walking Belt Replacement (cont.)
