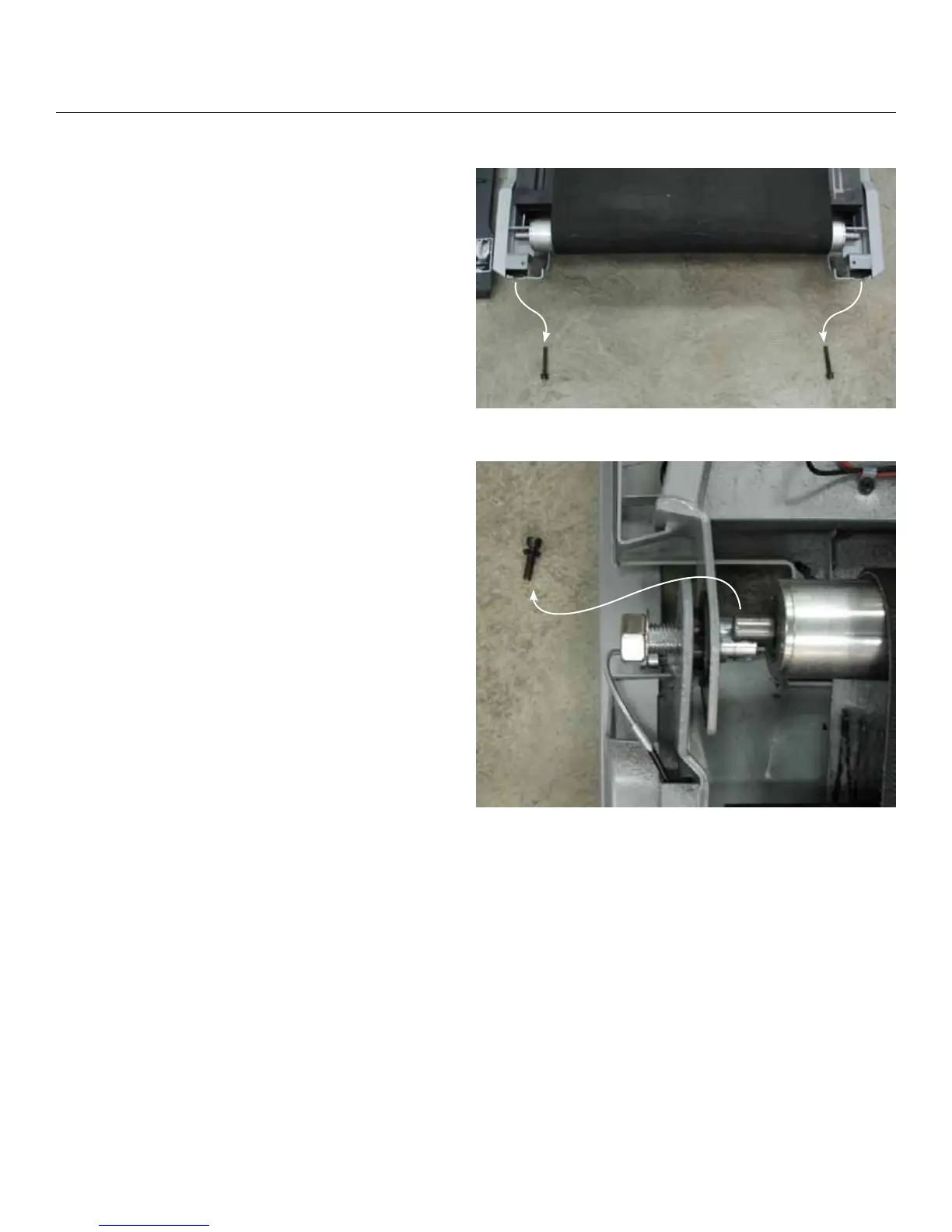

5. Remove the rear roller adjustment screws (Figure
5). You must loosen the screws equally to prevent
binding.
6. Remove rear roller.
7. Remove front roller bolts from the front roller axle
(Figure 6).
8. Remove front roller.
9. Lift deck into storage position. Refer to the
“Folding the Treadmill” section in this manual.
Replacing Parts
Figure 6
Figure 5
Walking Belt Replacement (cont.)
Service Manual
15
