Replacing Parts
10. Remove rear wheels from their brackets.
11. Carefully peel back the side decal and remove
hardware as shown (Figure 7). Remove the plastic
bottom cover.
12. Remove 4 nuts from below the deck (Figure 8).
13. Unfold the deck. Refer to the “Unfolding the
Treadmill” section in this manual.
14. Remove the 8 hex screws on the top surface of the
deck.

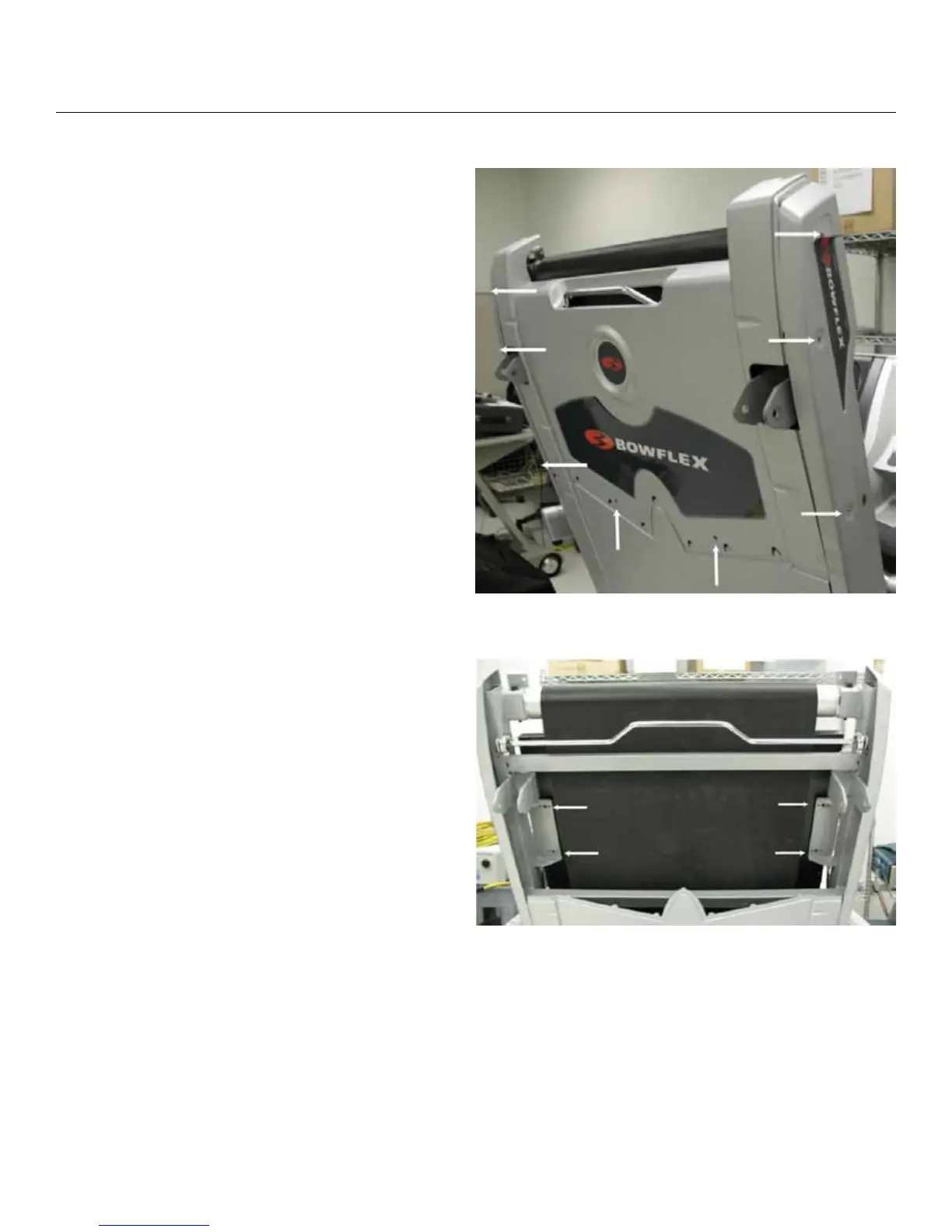

Figure 7
Figure 8
Walking Belt Replacement (cont.)
Service Manual
