Assembling Your Bowflex Ultimate
®
2

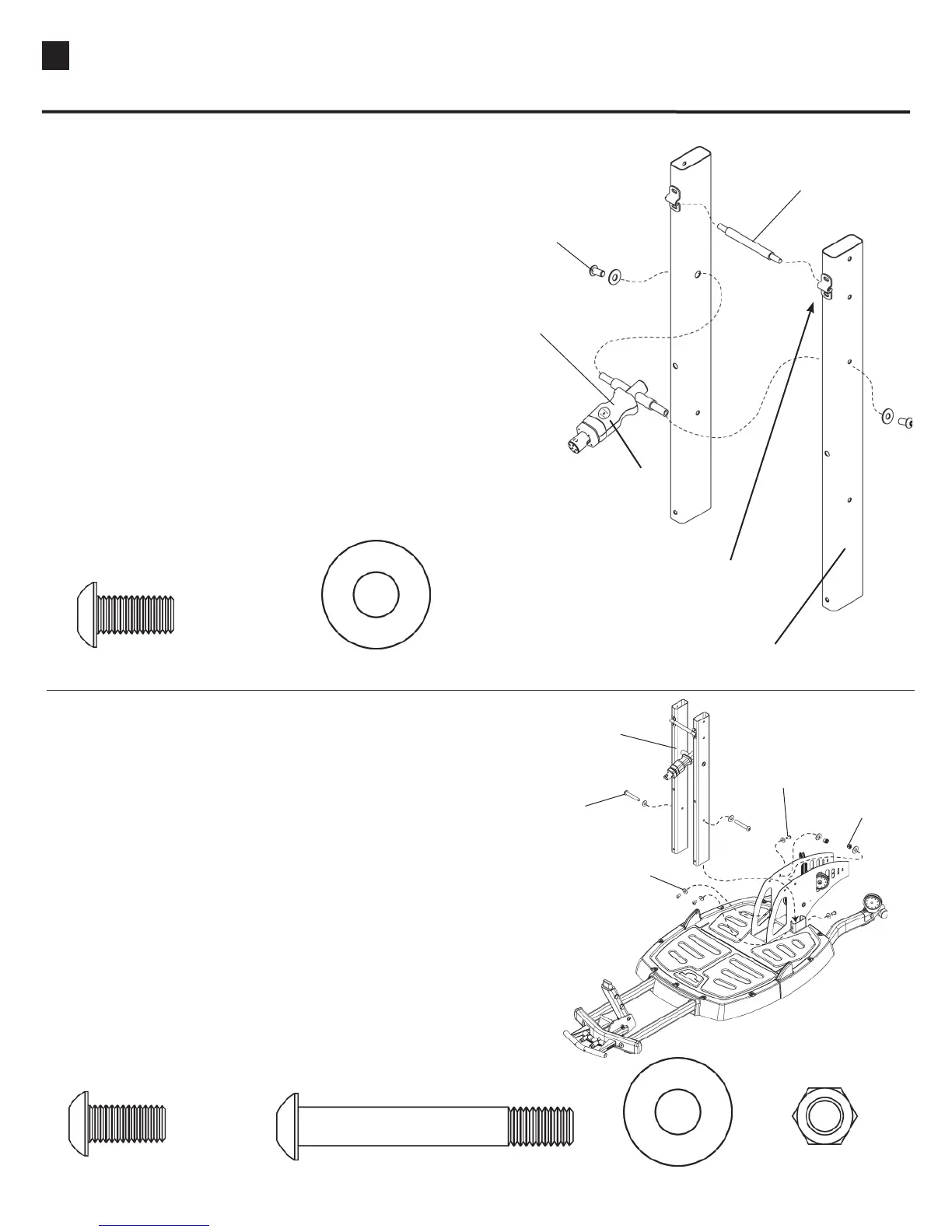

STEP 8
Parts:
• Lower Lat Tower Uprights (Box 4)
• Squat Holder (Box 4)
• Cross Brace (Box 4)
Tool:
• Hex Key (7/32”)
8-1 Insert Cross Brace and Squat Holder into Lower
Lat Tower Uprights. Make sure the Squat Holder
faces the the
front of the Uprights. The label is
on the front and the screw holes are on the back
of the holder.
8-2 Install but do not tighten the hardware until
Step 9.
Hardware (1:1):
Squat Holder
Pan Head Allen
Bolt
2 Pan Head Allen Bolt (3/8” X 3/4”)
2 Washers (3/8”)
8 Washers (3/8”)
Hardware (1:1):
STEP 9
Parts:
• Lower Lat Tower Assembly
(from step 8)
• Base Assembly
Tools:
• Hex Key (7/32”)
• Wrench (9/16”)
- or Adjustable Wrench
9-1 Place Lower Lat Tower over extrusions on
Base Assembly.
9-2 Install and completely tighten the hardware
from steps 8 and 9.
Pan Head Allen Bolt
3/4”
Lower Lat Tower
Assembly
Washer
Pan Head Allen Bolt
2 1/2”
Nylock Nut
4 Pan Head Allen Bolt (3/8” X 3/4”) 2 Pan Head Allen Bolt (3/8” X 2 1/2”) 2 Nylock Nuts
(Rod Pack Not Shown
For Clarity)
Label
The Cross Brace is on the
front of the Uprights
Cross Brace
(Do Not Tighten The Hardware For This Step Until Step 9 )
Lower Lat Tower Uprights
To Next Page
