20
Assembling Your Bowflex Ultimate
®
2

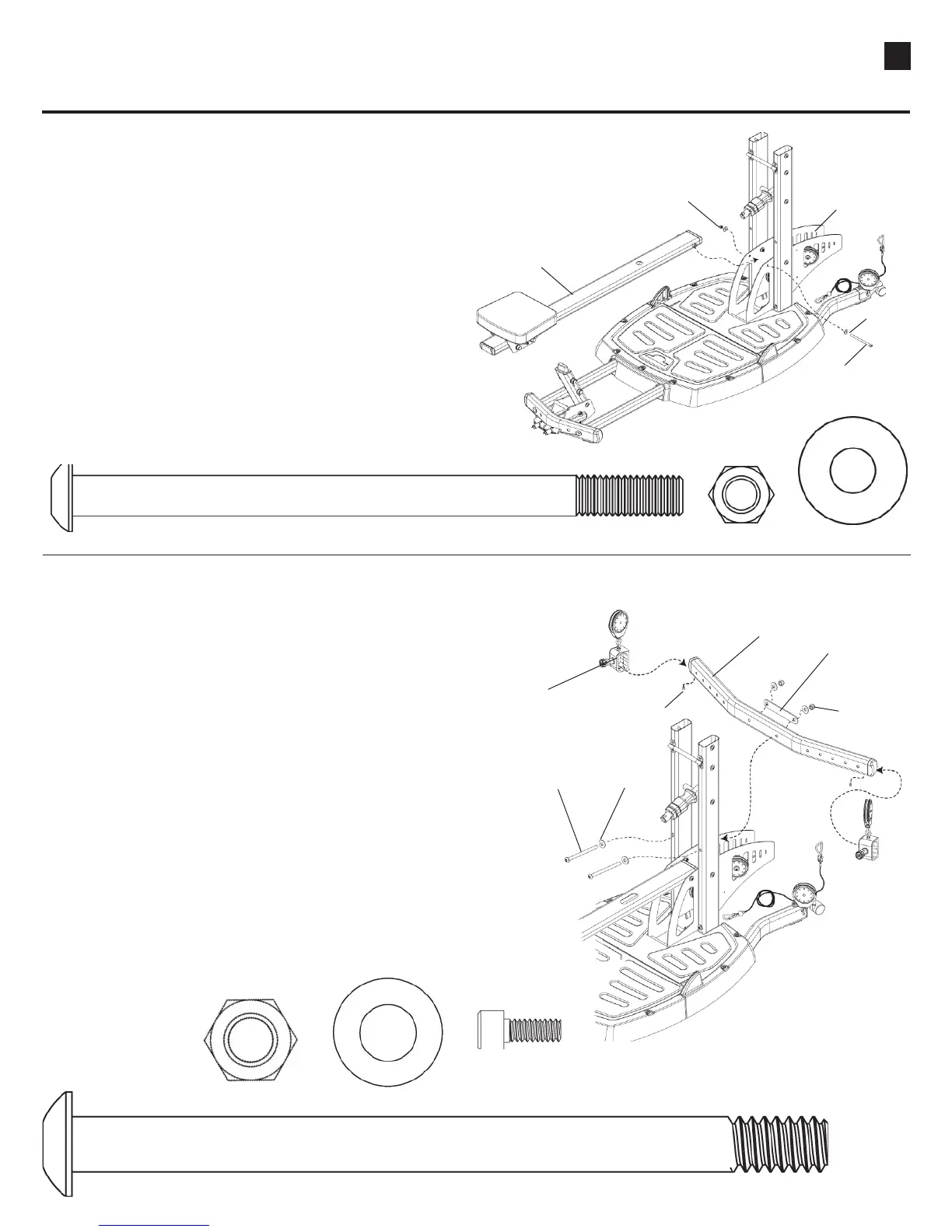

STEP 10
Parts:
• Seat Rail Assembly (Box 5)
• Base Assembly
Tool:
• Hex Key (7/32”)
• Wrench (9/16”)
- or Adjustable Wrench
10-1 Align holes on Seat Rail with holes
in Rod Box Assembly.
10-2 Install and completely tighten the hardware.
1 Pan Head Allen Bolt (3/8” X 5 1/2”)
2 Washers (3/8”)
Hardware (1:1):
Pan Head Allen
Bolt
Washer
Hex Nut
Seat Rail Assembly
Rod Box
Assembly
4 Washers (1/2”)
Hardware (1:1):
Pan Head Allen
Bolt
Washer
Hex Nut
Chest Bar
Pulley Slider
2 Pan Head Allen Bolt (1/2” X 6 3/4”)
2 Nylock Nut (1/2”)
STEP 11
Parts:
• Chest Bar (Box 4)
• Pulley Sliders (Box 4)
• Washer Plate (Box 4)
Tools:
• Hex Key (5/16”)
• Wrench (3/4”)
- or adjustable wrench
11-1 Align holes in Chest Bar, Washer Plate and Lat Tower
Uprights.
11-2 Install and completely tighten the Chest Bar hardware.
11-3 Slide the Pulley Sliders on (with pulleys facing up and pull
knob facing the seat rail) then install and tighten the
1/4”x1/2” Stop Screws.
Washer Plate
(Rod Pack Not Shown
For Clarity)
Stop Screw
1 Nylock Nut (3/8”)
(Rod Pack Not Shown
For Clarity)
2 Cap Screw (1./4 x 1/2”)
