Assembling Your Bowflex Ultimate
®
2

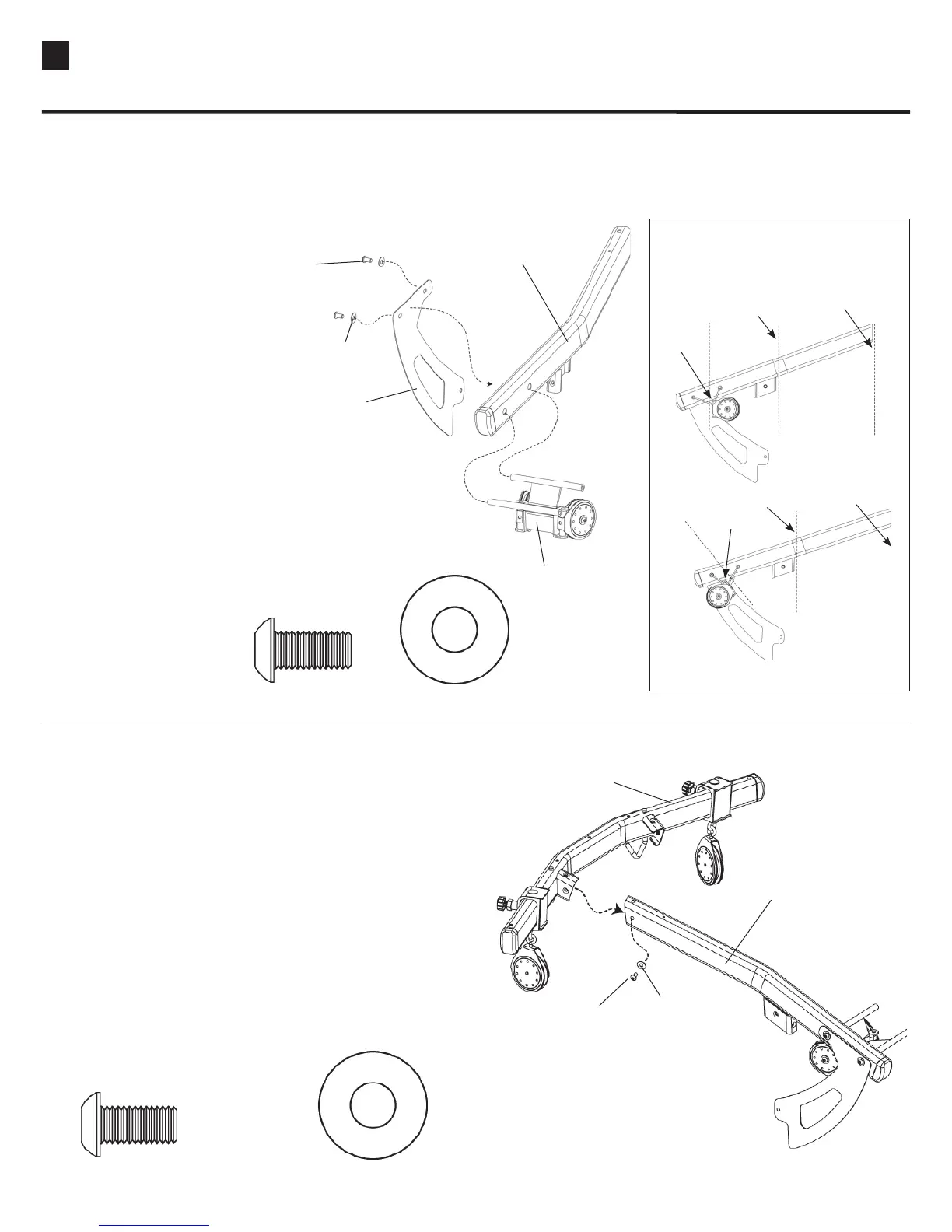

STEP 12
Parts:
• Left Lat Boom (Box 6)
• Rear Pulley Frame (Box 6)
• Side Plate (Box 4)
Tool:
• Hex Key (3/16”)
12-1 Insert RearPulley Frame into
holes in Left Lat Boom.
Make sure the Pulley Frame
Swivel is parallel to the planes
A and B shown in the Side View.
12-2 Align holes in Side Plate and Lat Boom.
12-3 Install but do not tighten hardware.
Hardware (1:1):
2 Pan Head Allen Bolt (3/8” X 3/4”)
2 Washers (3/8”)
Pan Head Allen
Bolt
Washer
Left Lat Boom
Side Plate
Rear Pulley
Frame
STEP 13
Parts:
• Pulley Frame Boom Assembly
(from step 12)
• Lat Bar (Box 6)
Tool:
• Hex Key (3/16”)
13-1 Insert left side of Lat Bar into Left Boom.
13-2 Install but do not tighten hardware.
1 Pan Head Allen Bolt (3/8” X 3/4”) 1 Washer (3/8”)
Hardware (1:1):
Pulley Frame, Left Boom
Assembly
Lat Bar
Pan Head Allen
Bolt
Washer
CORRECT
INCORRECT
Plane A
Plane B
Plane A
Plane B
Swivel
Swivel
Side View
NOTE: Before you continue, be sure you have a minimum of 88” (7’4”) of ceiling height to insert the
Upper Lat Assembly into the Lower Base (see step 17).
