22
Assembling Your Bowflex Ultimate
®
2

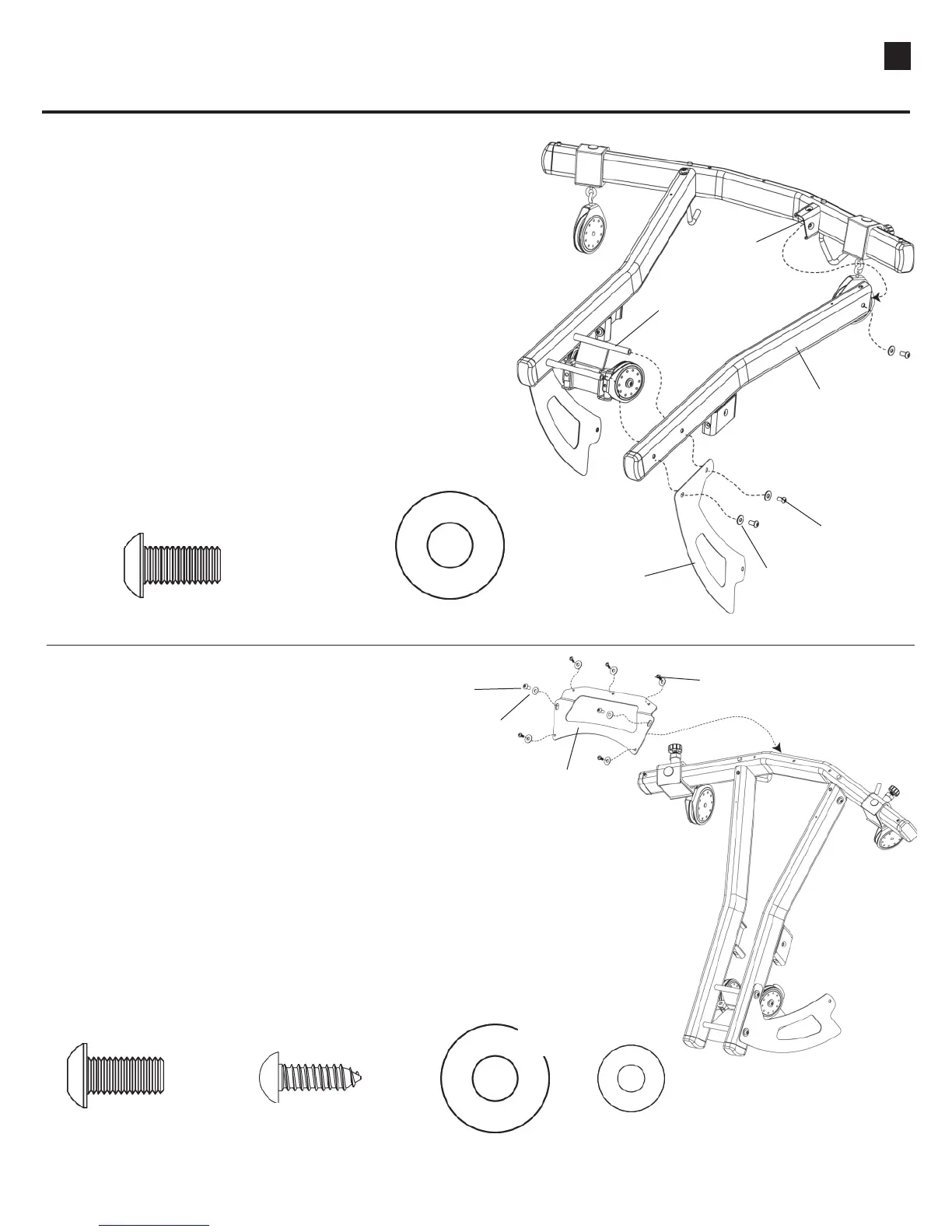

STEP 14
Parts:
• Lat Bar, Boom Assembly
(From step 13)
• Right Lat Boom (Box 6)
• Side Plate (Box 4)
Tool:
• Hex Key (3/16”)
14-1 Align holes in Right Lat Boom with Rear Pulley
Frame Cross Bars and insert right side of Lat Bar
and Pulley Frame Cross Bars into Right Lat Boom.
14-2 Align Side Plate with Right Lat Boom and install
but do not tighten hardware.
3 Pan Head Allen Bolt (3/8” X 3/4”) 3 Washers (3/8”)
Hardware (1:1):
Right Side
of Lat Bar
Right Lat Boom
Pan Head Allen
Bolt
Washer
Pulley Frame
Cross Bars
STEP 15
Parts:
• Lat Bar, Boom Assembly
(From step 14)
• Top Plate (Box 6)
Tools:
• Hex Key (3/16”)
• Phillips Head Screwdriver
15-1 Align holes in Top Plate with Lat Bar and Booms.
15-2 Install but do not tighten hardware.
2 Pan Head Allen Bolt
(3/8” X 3/4”) 2 Washers (3/8”)
Hardware (1:1):
5 Self Tapping Screws
(1/4” X 3/4”)
Washer
Pan Head Allen Bolt
Pan Head
Screw
Top Plate
5 Washers (1/4”)
Side Plate
