Assembling Your Bowflex Ultimate
®
2
STEP 17 – Upper Assembly is very heavy!
Use two people for this step!
Parts:
• Upper Lat Assembly
(from step 16)
• Base Assembly
(from step 11)
Tool:
• Hex Key (7/32”)

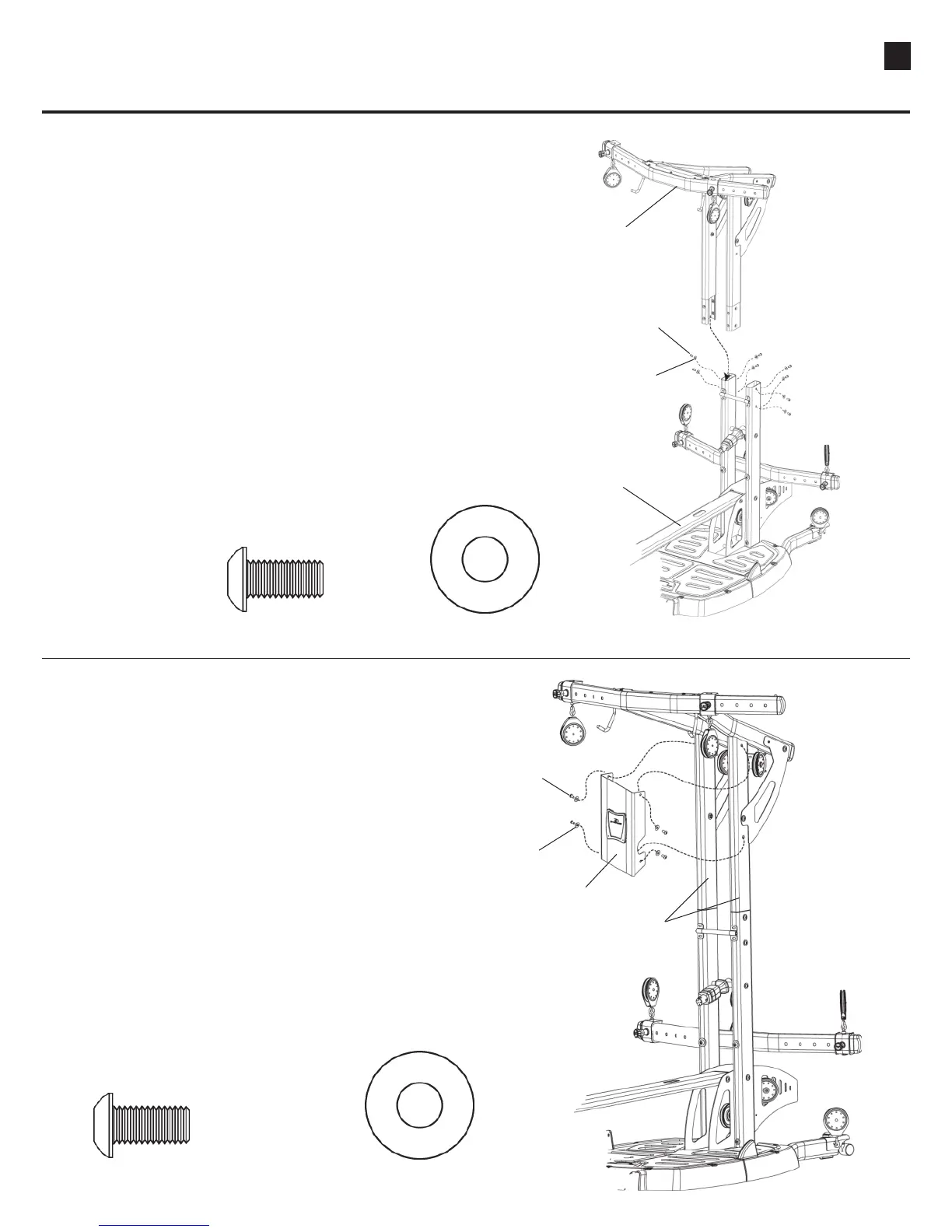

17-1 Insert Upper Lat Uprights into Lower Lat Uprights.
17-2 Install and completely tighten the hardware.
Hardware (1:1):
Upper Lat Assembly
Base Assembly
8 Pan Head Allen Bolt (3/8” X 3/4”) 8 Washers (3/8”)
STEP 18
Parts:
• Front Face Plate (Box 6)
• Assembled Unit
(from step 17)
Tool:
• Hex Key (7/32”)
18-1 Align holes in Face Plate and Uprights.
18-2 Install and completely tighten hardware.
Hardware (1:1):
4 Pan Head Allen Bolt (3/8” X 3/4”) 4 Washers (3/8”)
Pan Head Allen
Bolt
Washer
Lat Tower Uprights
Pan Head Allen
Bolt
Washer
Front Face Plate
(Rod Pack Not Shown
For Clarity)
(Rod Pack Not Shown
For Clarity)
