Bowflex The Bowflex Ultimate 2 - Page 26

25
Assembling Your Bowflex Ultimate
®
2
STEP 19
Parts:
• Squat Frame (Box 2)
• Shoulder Bars (Box 2)
Tool:
• Hex Key (3/16”) and (5/32”)
• Wrench (1/2”) & (7/16”)
- or Adjustable Wrench

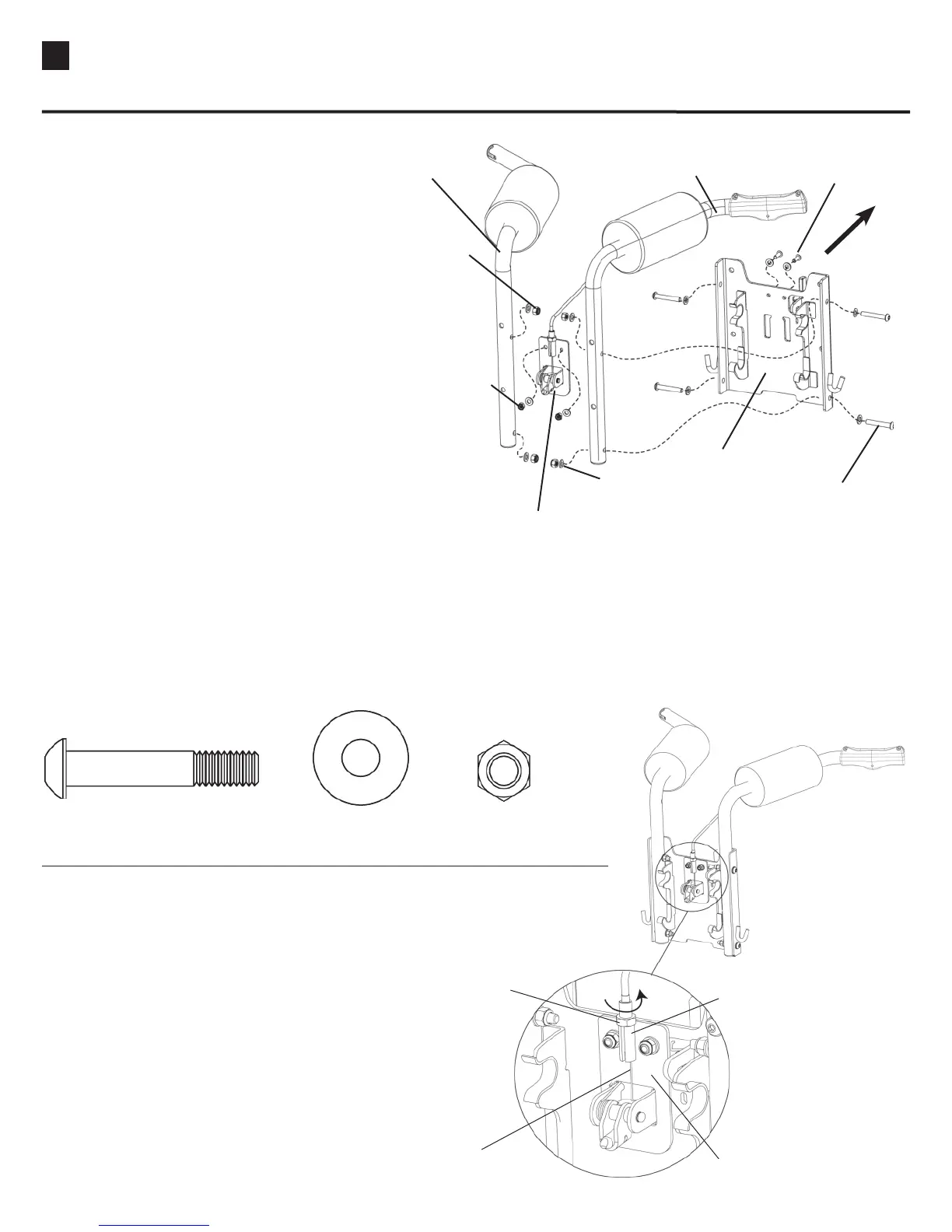

19-1 Position Shoulder Bars against back of
Squat Frame with bend in arms pointing
towards the front of the frame.
19-2 Install and completely tighten the side screws,
washers and nylock nuts.
19-2 Remove the hardware securing the Lock Pin
Assembly to the Squat Frame.
19-3 Align holes in Lock Pin Assembly and
Squat Frame.
19-4 Re-install and completely tighten Lock Pin
Assembly hardware.
Hardware (1:1):
Left Shoulder Bar
Front
Right Shoulder Bar
(has handle and cable)
Side Screw
Button Head (5/16” x 1 3/4”)
Squat Frame
Lock Pin Assembly
1/4” Nylock Nut
Washer
Button Head Screw
(1/4” x 3/4”)
5/16” Nylock Nut
4 Pan Head Allen Bolt (5/16” X 1 3/4”)
8 Washers (5/16”)
Cable Adjustment
The Release Cable should be adjusted so
that there is enough tension to keep the
cable from laying on the metal frame. In
most cases this adjustment will be fine out
of the box. If the cable needs adjustment,
loosen the locknut and turn the Adjusting
Barrel counter-clockwise until cable is taut.
The release cable may stretch with use.
Check the cable tension regularly and
adjust if needed.
Metal Frame
Release Cable
Adjusting Barrel
Lock
Nut
4 Nylock Nut (5/16”)
