26
Assembling Your Bowflex Ultimate
®
2

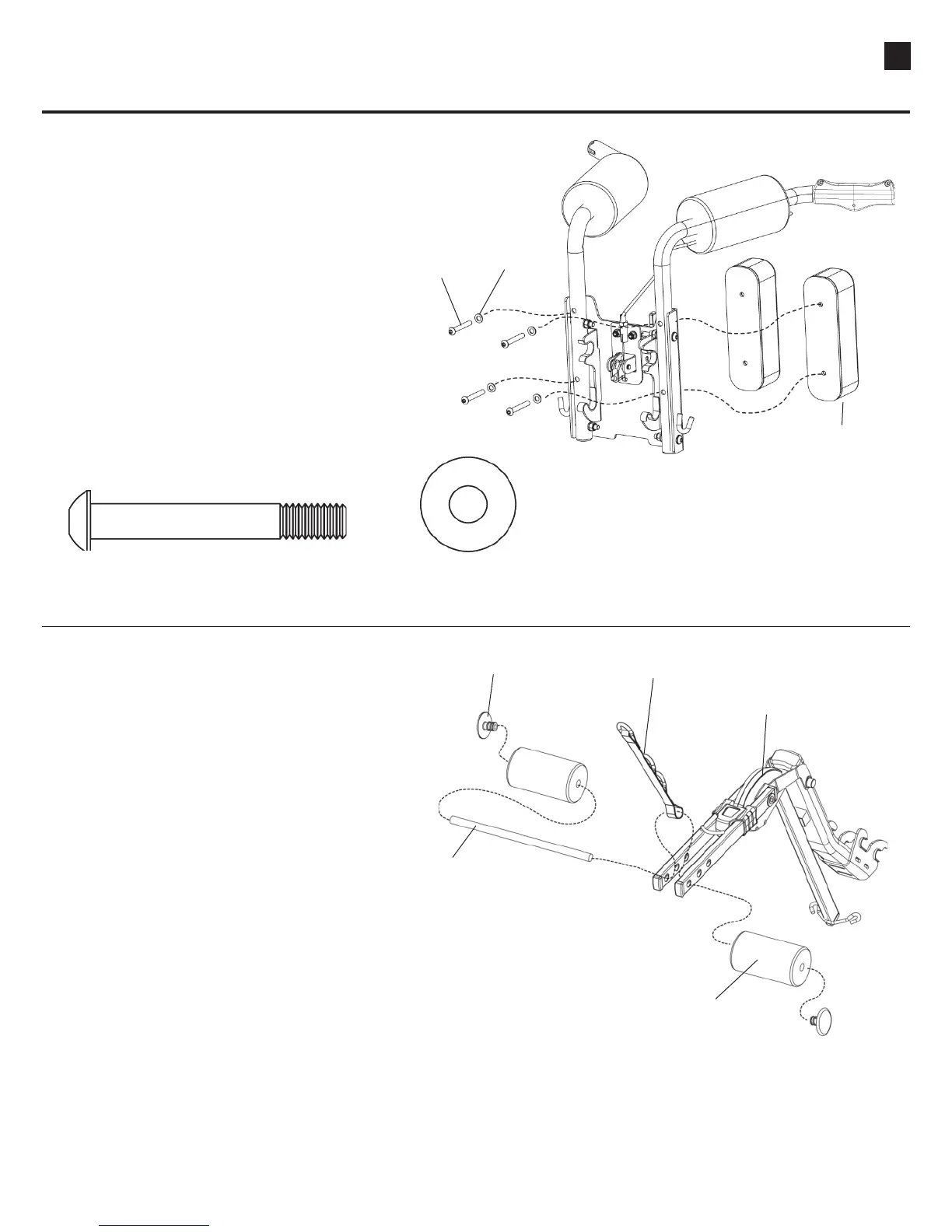

STEP 21
Parts:
• Leg Extension Pivot Arm Assembly (Box 7)
• Roller Pads (Box 7)
• Webbing with Steel Ring (Box 7)
• Roller Shaft (Box 7)
• End Caps (Box 7)
21-1 Insert Roller Shaft through hole in one of
the rectangular arms. Place the Web
-
bing with Steel Rings between the two
rectangular arms, and continue to slide
the Shaft through the Webbing and hole
in opposite arm.
21-2 Slide Roller Pads and End Caps onto Roller Shaft.
Roller Pad
Roller Shaft
Leg Extension Pivot Arm
Assembly
Webbing with Steel Rings
STEP 20
Parts:
• Squat Assembly
(from step 19)
• Squat Back Pads (Box 2)
Tool:
• Hex Key (3/16”)
20-1 Align holes in Squat Back Pads and
Squat Assembly.
20-2 Install and completely tighten hardware.
Hardware (1:1):
4 Pan Head Allen Bolt (5/16” X 2 1/4”) 4 Washers (5/16”)
Pan Head Allen
Bolt
Washer
Squat Back
Pad
End Cap
