Assembling Your Bowflex Ultimate
®
2

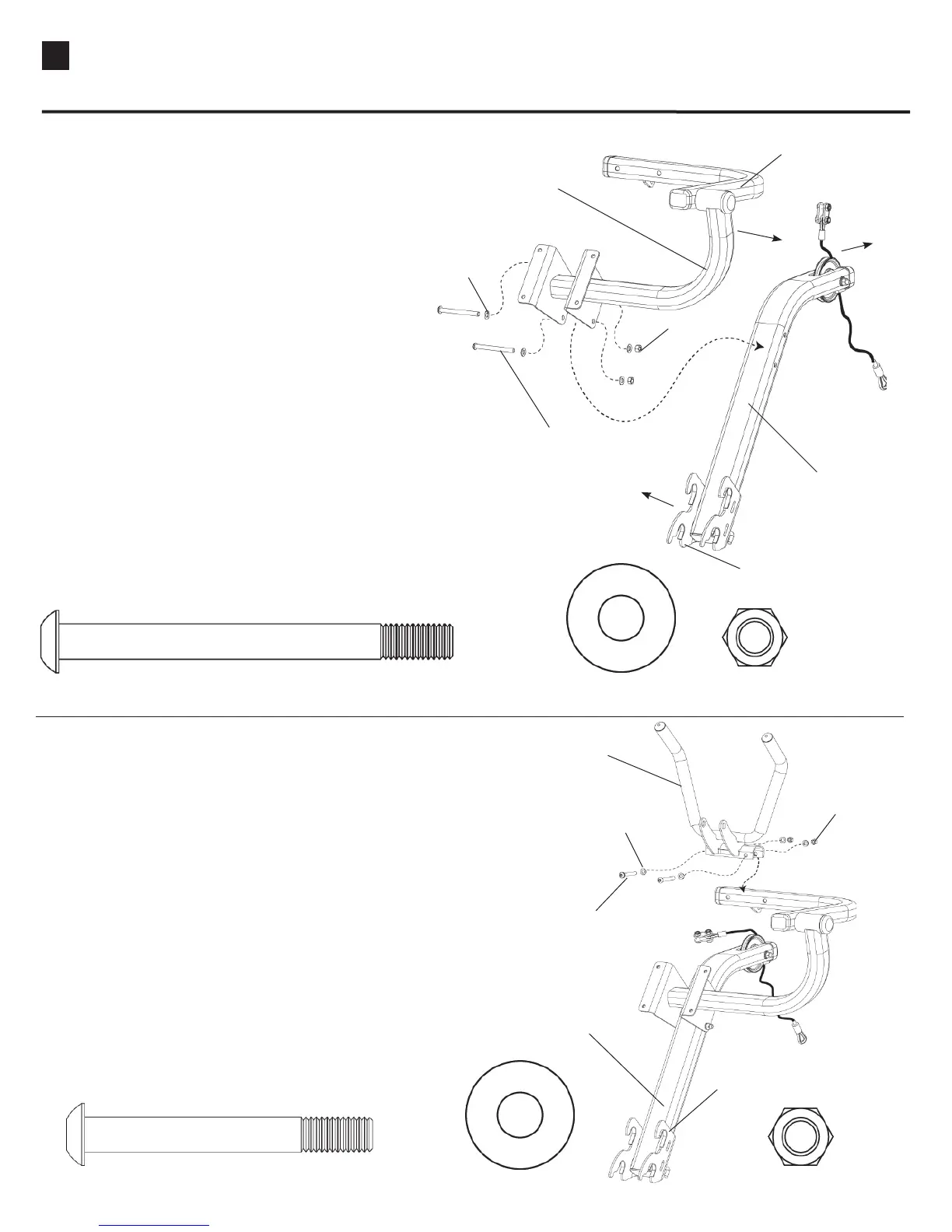

STEP 22 (optional attachment)
Parts:
• Ab Crunch Frame (Ab Box)
• Ab Crunch Pivot Arm (Ab Box)
Tool:
• Hex Key (7/32”)
• Wrench (9/16”)
- or Adjustable Wrench
22-1 Place Ab Crunch Frame on floor with hooks
on the top and pulley end pointing away
from you.
22-2 Align Ab Crunch Pivot Arm on Ab Crunch
Frame with the pivot mechanism to the right
side as shown.
22-3 Install and completely tighten hardware.
Hardware (1:1):
2 Pan Head Allen Bolt (3/8” X 4”) 4 Washers (3/8”)
Hooks on top
Pulley
pointing
away
Pivot Arm pointing to right
Pan Head Allen
Bolt
Washer
Nylock Nut
Ab Crunch Frame
2 Nylock Nuts (3/8”)
STEP 23
Parts:
• Ab Crunch Assembly
(from step 21)
• Ab Handle Bars (Ab Box)
Tool:
• Hex Key (7/32”)
• Wrench (9/16”)
- or Adjustable Wrench
23-1 Place the Ab Handle Bars on the Ab Pivot Arm with
the Handle Bars pointing toward the same side as
the hooks on the Ab Frame as shown.
23-2 Install and completely tighten hardware.
Hardware (1:1):
2 Pan Head Allen Bolt (3/8” X 3”)
4 Washers (3/8”)
2 Nylock Nut (3/8”)
Pan Head Allen
Bolt
Washer
Nylock Nut
Hooks
Ab Frame
Ab Handle Bars
Hardware for this step is in the hardware bag in the AB BOX.
Hardware for this step is in the hardware
bag in the AB BOX.
Ab Crunch Pivot
Arm
