Bowflex The Bowflex Ultimate 2 - Page 29

28
Assembling Your Bowflex Ultimate
®
2
STEP 25
Parts:
• Ab Crunch Assembly
(from step 23)
Tool:
• Wrench (1/2”)
- or Adjustable Wrench
25-1 Undo the 1/2” bolt from the bracket at the upper
end of the cable and use the same 1/2” bolt to
attach the bracket to the tab on the Pivot Arm.
Ab Pivot Arm
Tab
Bolt

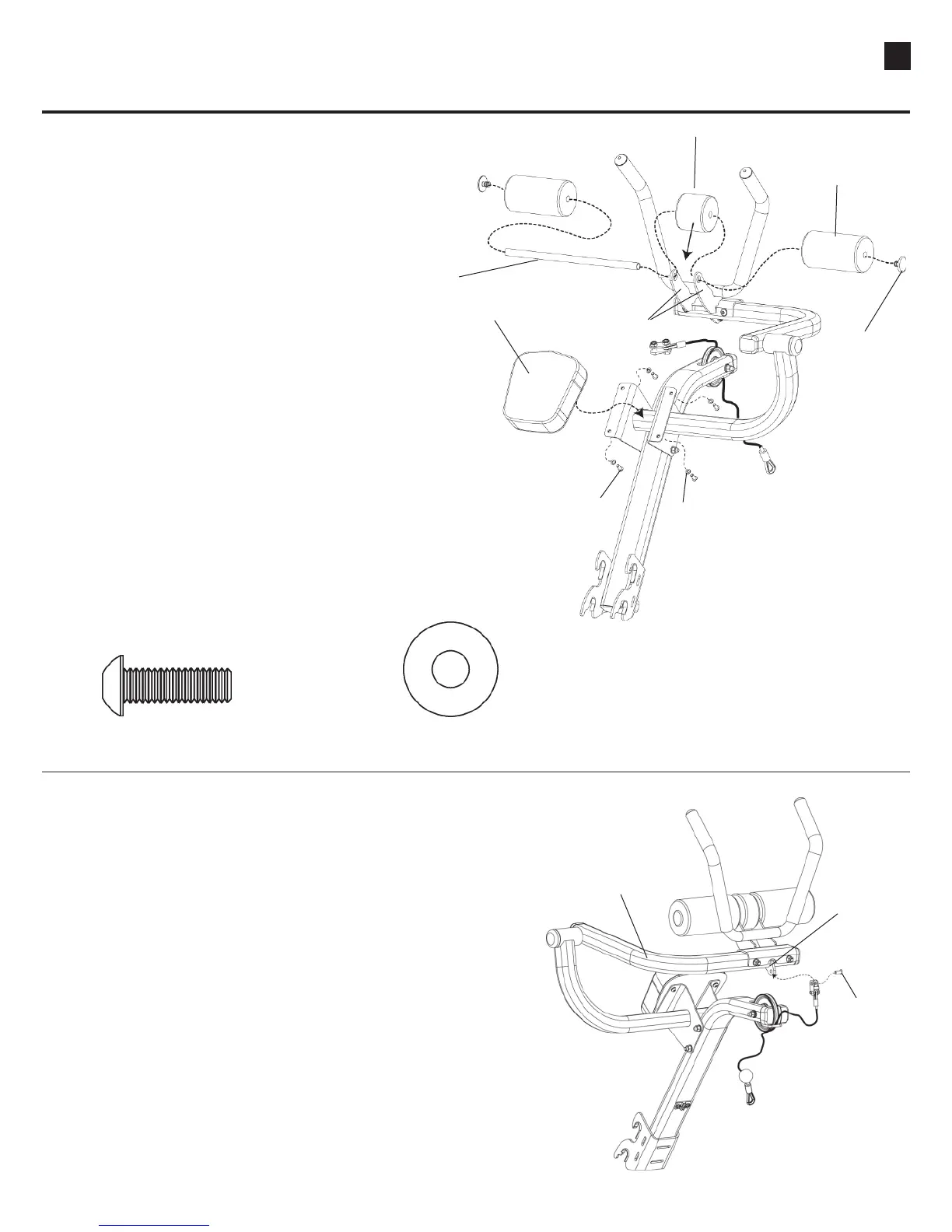

STEP 24
Parts:
• Ab Crunch Assembly
(from step 22)
• Ab Back Pad (Ab Box)
• Roller Pads (Ab Box)
• Middle Pad (Ab Box)
• Roller Pad Shaft (Ab Box)
• End Caps (Ab Box)
Tool:
• Hex Key (3/16”)
24-1 Place the Middle Pad between the arms on the
bracket. Slide the Roller Pad Shaft through bracket
and the Middle Pad then install Roller Pads and
End Caps.
24-2 Align the Ab Back Pad with the wider end pointing
toward the Handlebars.
24-3 Install and completely tighten hardware.
Hardware (1:1):
4 Pan Head Allen Bolt (5/16” X 1”)
4 Washers (5/16”)
Pan Head Allen Bolt Washer
Ab Back Pad
Roller Pad
End Cap
Roller Pad
Shaft
Middle Pad
Bracket Arms
Hardware for this step is in the
hardware bag in the AB BOX.
