STEP 26
Parts:
• Seat Frame (Box 7)
• Leg Extension Seat Pad (Box 7)
Tool:
• Hex Key (3/16”)

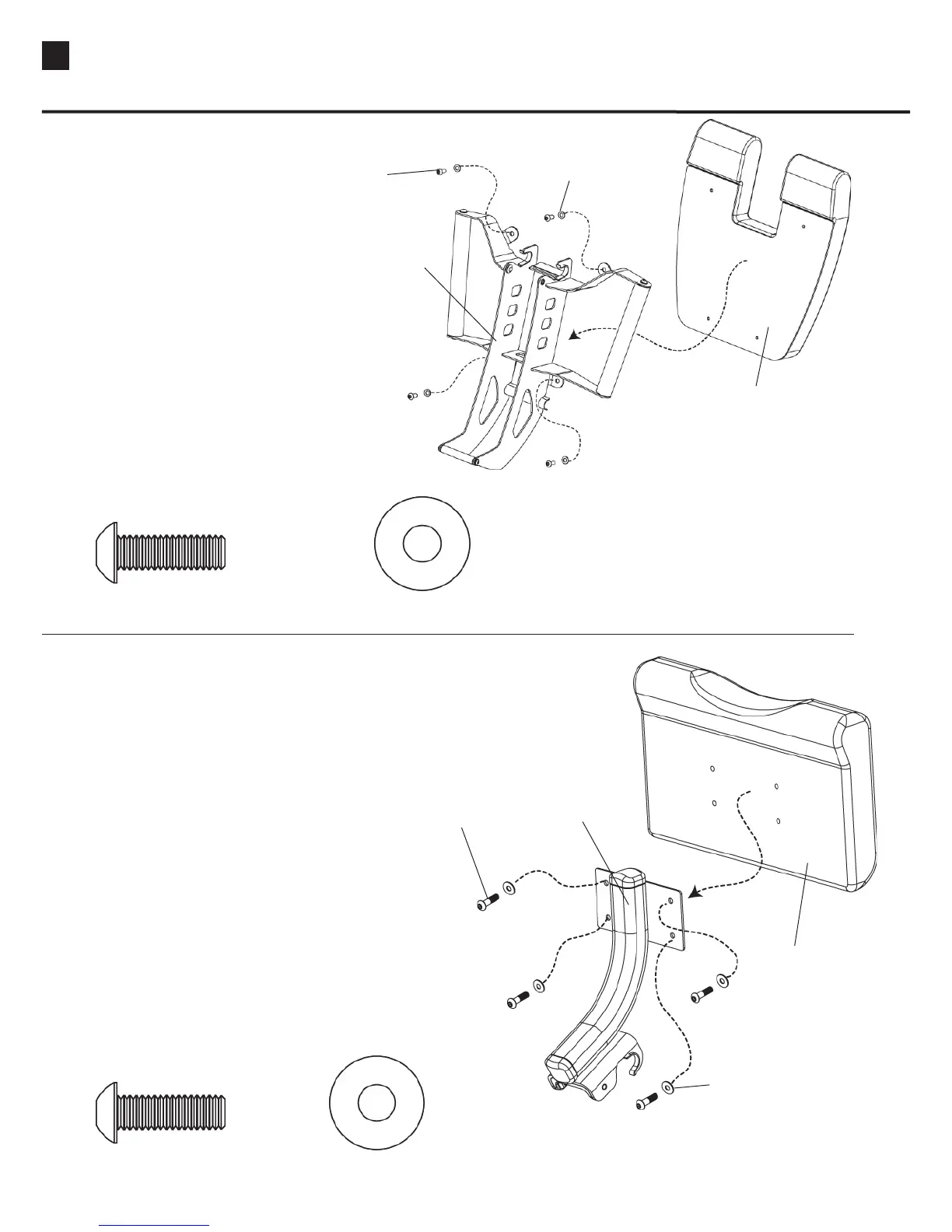

26-1 Align holes in Leg Extension Seat Pad
and Seat Frame.
26-2 Install and completely tighten hardware.
Hardware (1:1):
4 Pan Head Allen Bolt (5/16” X 1”)
4 Washers (5/16”)
Pan Head Allen
Bolt
Washer
Leg Extension
Seat Pad
Seat Frame
STEP 27
Parts:
• Preacher Curl Frame (Box 7)
• Preacher Curl Pad (Box 7)
Tool:
• Hex Key (3/16”)
27-1 Align holes in Preacher Curl Pad and
Preacher Curl Frame.
27-2 Install and completely tighten hardware.
Hardware (1:1):
4 Pan Head Allen Bolt (5/16” X 1”) 4 Washers (5/16”)
Pan Head Allen
Bolt
Washer
Preacher Curl
Pad
Preacher Curl
Frame
Assembling Your Bowflex Ultimate
®
2
Hardware for this step is in the
hardware bag in BOX 7
Hardware for this step is in the
hardware bag in BOX 7
