31

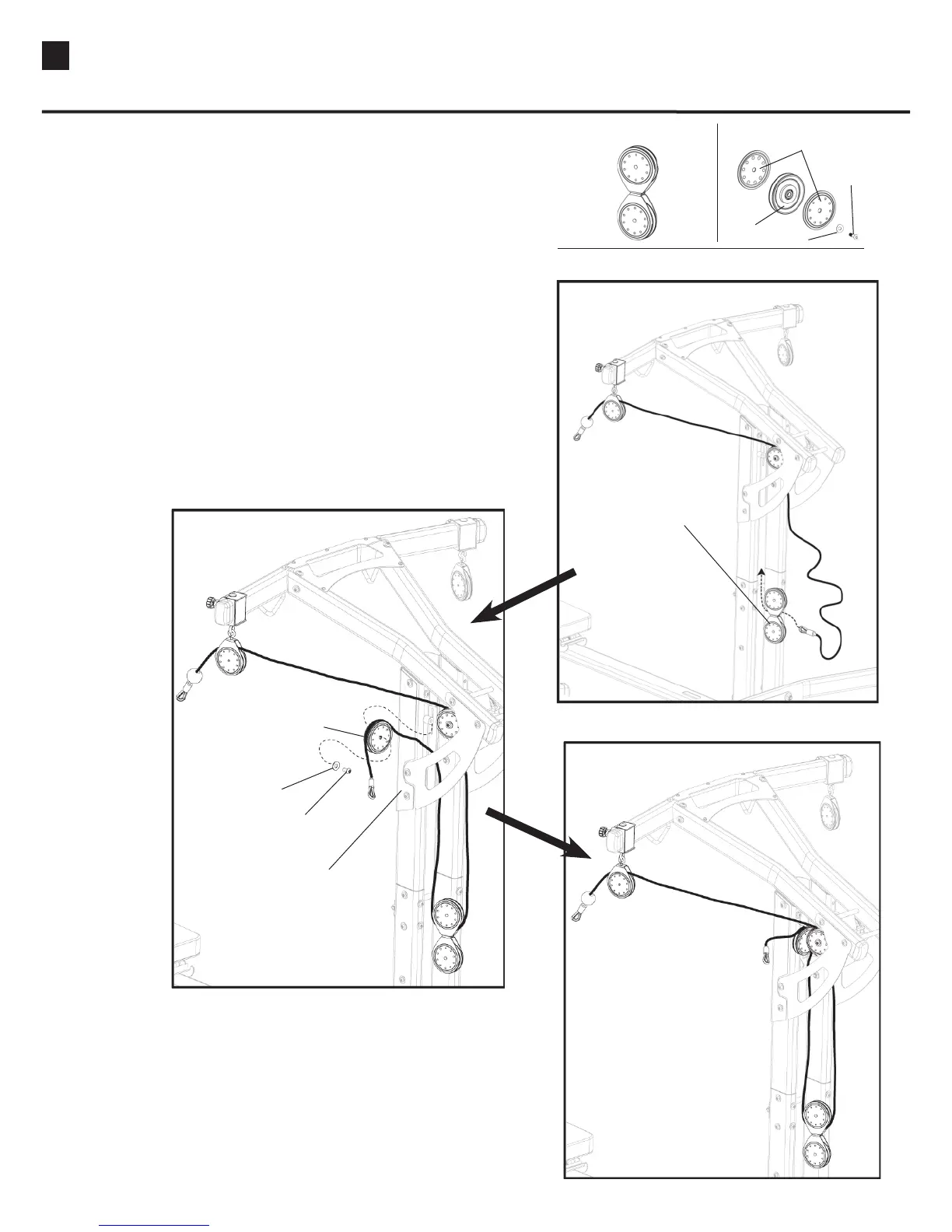

Cable Installation STEP 2
a. In Box 4 Locate a Floating Pulley Assembly and a
Single Pulley Assembly with two Cheeks.
(See Figure A)
b. Feed the cable through the Floating Pulley Assembly.
(See Figure B)
c. Route the cable behind the Side Plate and wrap over
the Single Pulley Assembly.
(See Figure C)
d. Install Single Pulley with cable on the back side of
the Lat Tower as shown.
(See Figure D)
Figure A
Route Cable Through
Floating Pulley Assembly
Figure B
Route Cable Through
Behind Side Plate
Wrap Cable Over
Single Pulley Assembly
Pan Head Al-
len Bolt
Washer
Tool:
• Hex Key (7/32”)
Figure C
Figure D
(Rod Pack Removed For Clarity)
Installing Your Bowflex Ultimate
®
2 Cables
Floating Pulley Assembly Single Pulley Assembly
Cheeks
Button Head Screw
Washer
Pulley
To Next Page
