Maintenance
To decrease the possibility of slipping, be sure the Treadle area is free from grease or oil. Clean off any excess
oil from the machine surfaces.
Walking Belt Alignment
The walking belts need to be adjusted if they are out of center enough to cause a rubbing or scraping sound. Adjust-
ments can be made at the Front Roller of each Treadle.
Adjusting the Walking Belts – While operating the machine, notice where the belts run on each Treadle. The Walking
Belt Adjustment Bolts are on the front end of each Roller. If the belt is tracking too far to the right, use a 5mm hex
wrench to turn the right walking belt adjustment bolt clockwise on that belt in a half turn increment. Secure the hex

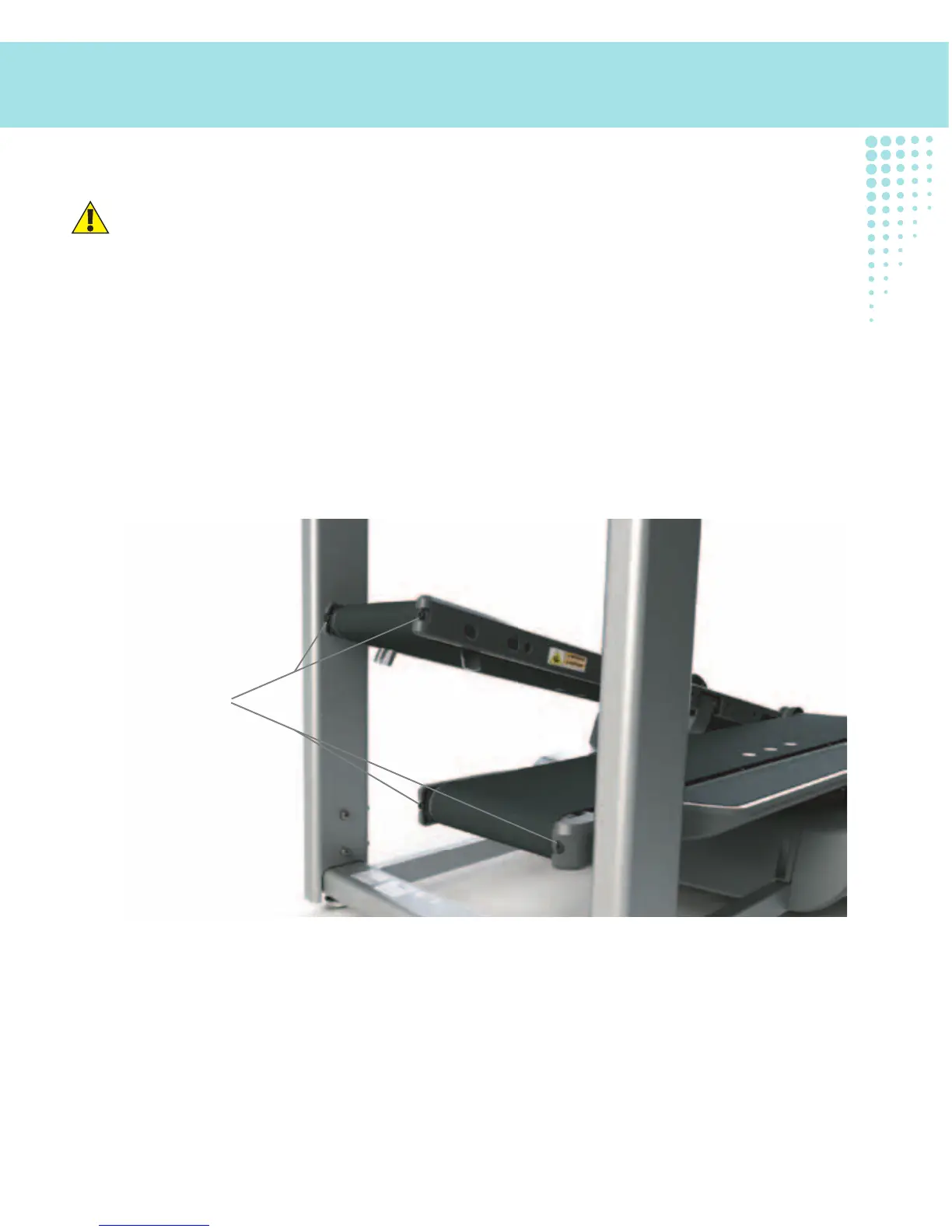

Walking Belt
Adjustment Bolts
wrench and operate the walking belts for approximately 30 seconds, noticing if the walking belt is adjusted. Repeat as
necessary until adjusted.
If the belt tracks too far to the left, do the same thing on the left walking belt adjustment bolt.
Note: Do not turn the bolts counterclockwise when you adjust the belt alignment.
