Features
 Available in 48kHz HD audio when noise cancellation is enabled.
 Wide-range 20-20,000Hz frequency response – delivering exceptionally high-quality
sound.
 Built-in rechargeable lithium-ion battery provides 10+ hours of recording.
 Switchable mono/stereo output.
 3.5mm TRS analogue output, USB-C and iOS Lightning digital output – universal
compatibility with cameras, smartphones, and computers.
 Rotating clasp-type fur windshield, making it hard to fall off.
 The receiver’s clasp allows the adapter to be easily removed.

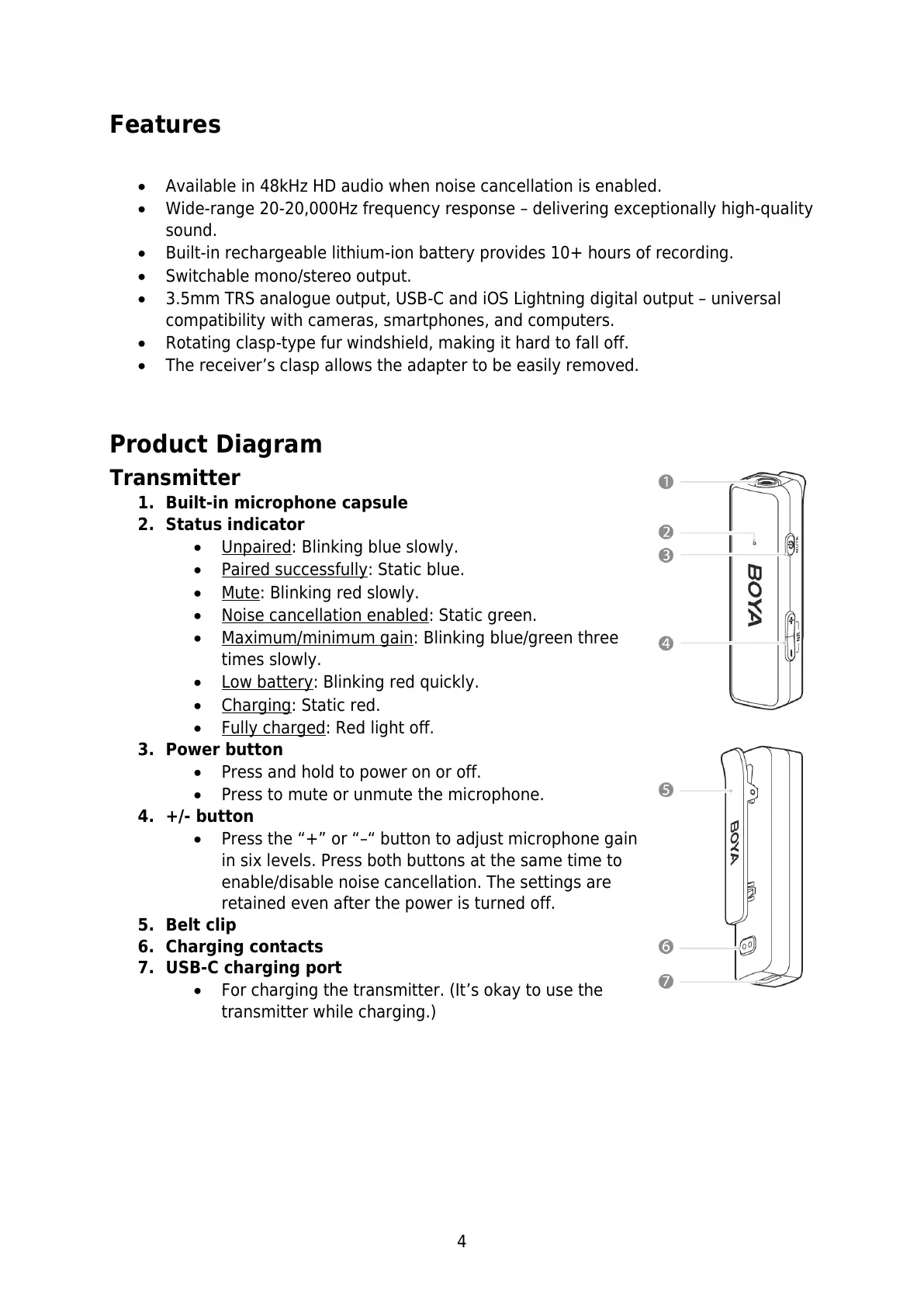

Product Diagram
Transmitter
1. Built-in microphone capsule
2. Status indicator
 Unpaired: Blinking blue slowly.
 Paired successfully: Static blue.
 Mute: Blinking red slowly.
 Noise cancellation enabled: Static green.
 Maximum/minimum gain: Blinking blue/green three
times slowly.
 Low battery: Blinking red quickly.
 Charging: Static red.
 Fully charged: Red light off.
3. Power button
 Press and hold to power on or off.
 Press to mute or unmute the microphone.
4. +/- button
 Press the “+” or “–“ button to adjust microphone gain
in six levels. Press both buttons at the same time to
enable/disable noise cancellation. The settings are
retained even after the power is turned off.
5. Belt clip
6. Charging contacts
7. USB-C charging port
 For charging the transmitter. (It’s okay to use the
transmitter while charging.)
