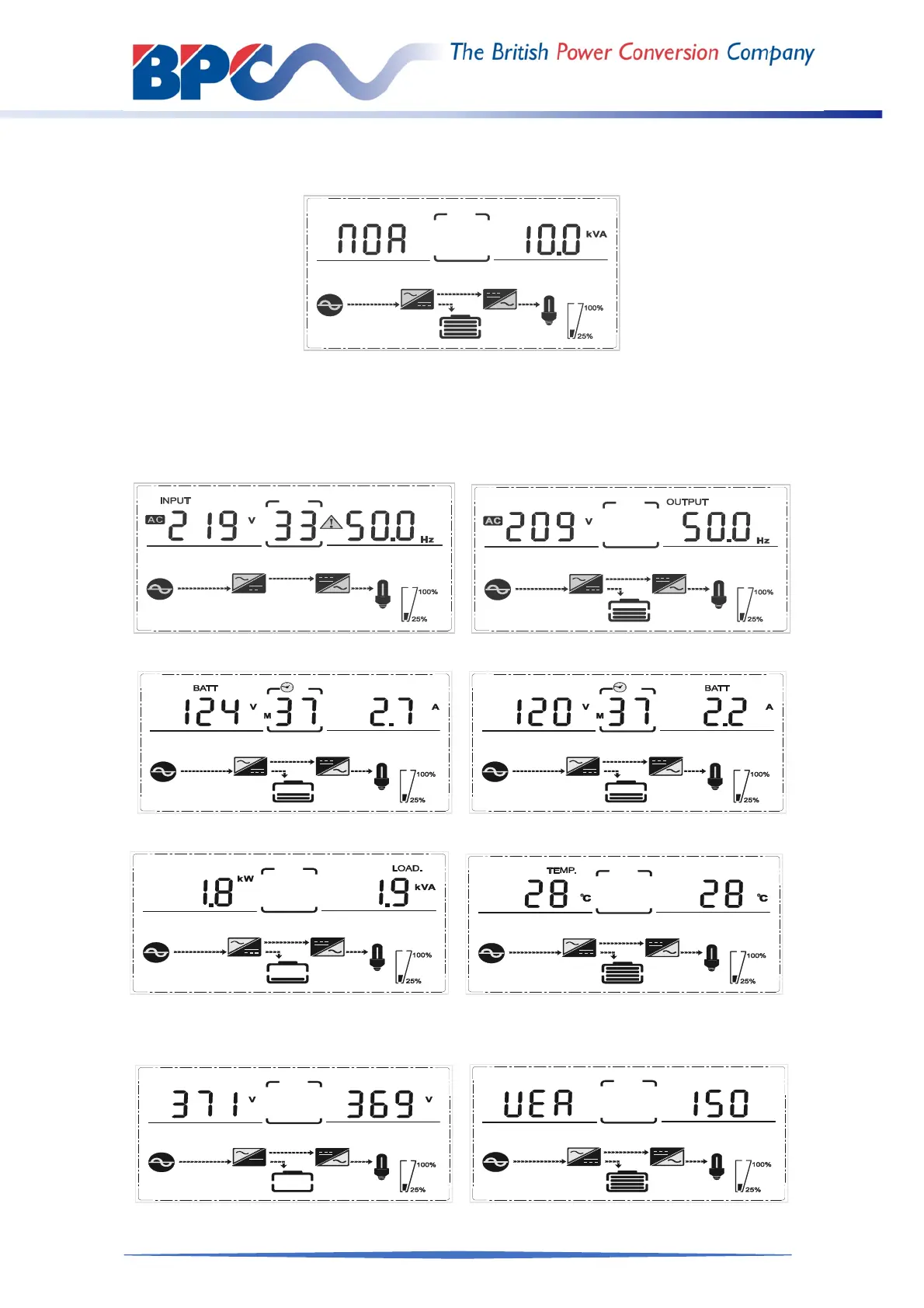

1. When the UPS is connected with the Utility or Battery at cold start mode, it shows as
drawing below:
(1) Operational Status and mode
1) Operational Status and mode When the UPS at single mode, it shows “NOA” or
“ECO”or“CF”, but If the UPS at parallel mode, it shows “PAL” instead.
2) Press “DOWN” button, the UPS goes to next page as shown below.
（2）Input voltage （3）Output voltage
（4）Bat + voltage (Positive) （5）Bat – voltage (Negative)
（6）Load (7) PFC/ Ambient temperature (up)
Internal temperature（down）
( 8 ) Bus voltage （9）Software version
To Next Page
