3．Installation
3.1 Unpack checking
1. Don’t lean the UPS when moving it out from the packaging
2. Complete a visual check to see if the UPS has been damaged during the
transportation, do not switch on the UPS if any damage is found. Please contact the
dealer right away.
3. Check the accessories according to the packing list and contact the dealer in case of
any missing parts.
3.2 UPS Module Overview

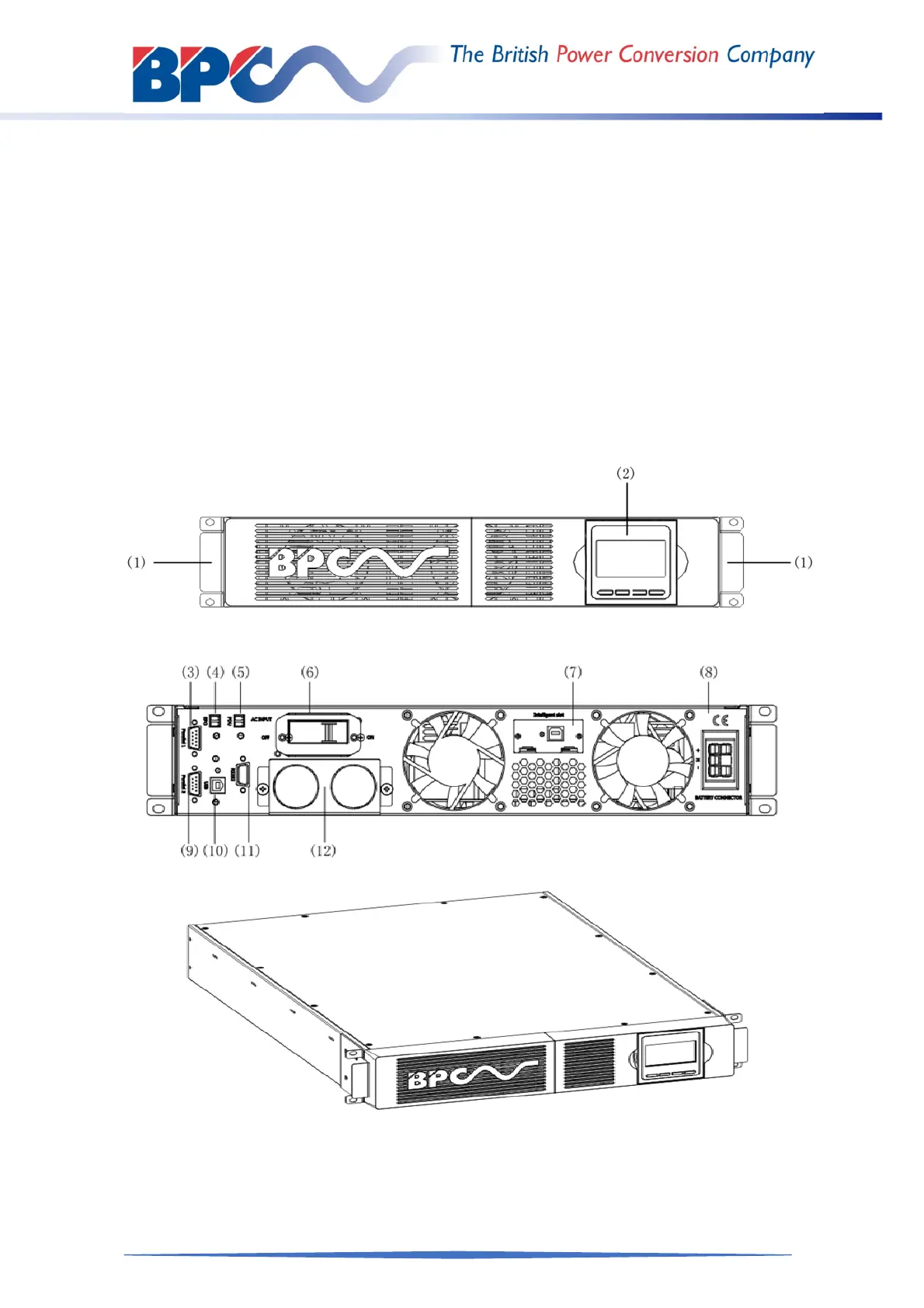

Front View
Side View
(1) Handles (2) LCD Display (3) Parallel Port 1 (4) EPO (5) PDU
(6) Input breaker （7）Intelligent slot （8）Battery Slot (9) Parallel Port 2
(10) USB (11) COM（RS232） (12) terminal
Rear View
To Next Page
