3 Chassis installation
3.1 Mounting of the Modulator
Note: The following is applicable to installations and
confi gurations without TRS function.
The unit should be orientated and positioned so that the
Power Cable connections face towards the required
installation option (confi guration) of the trailer.
See Figs. 20 to 23.

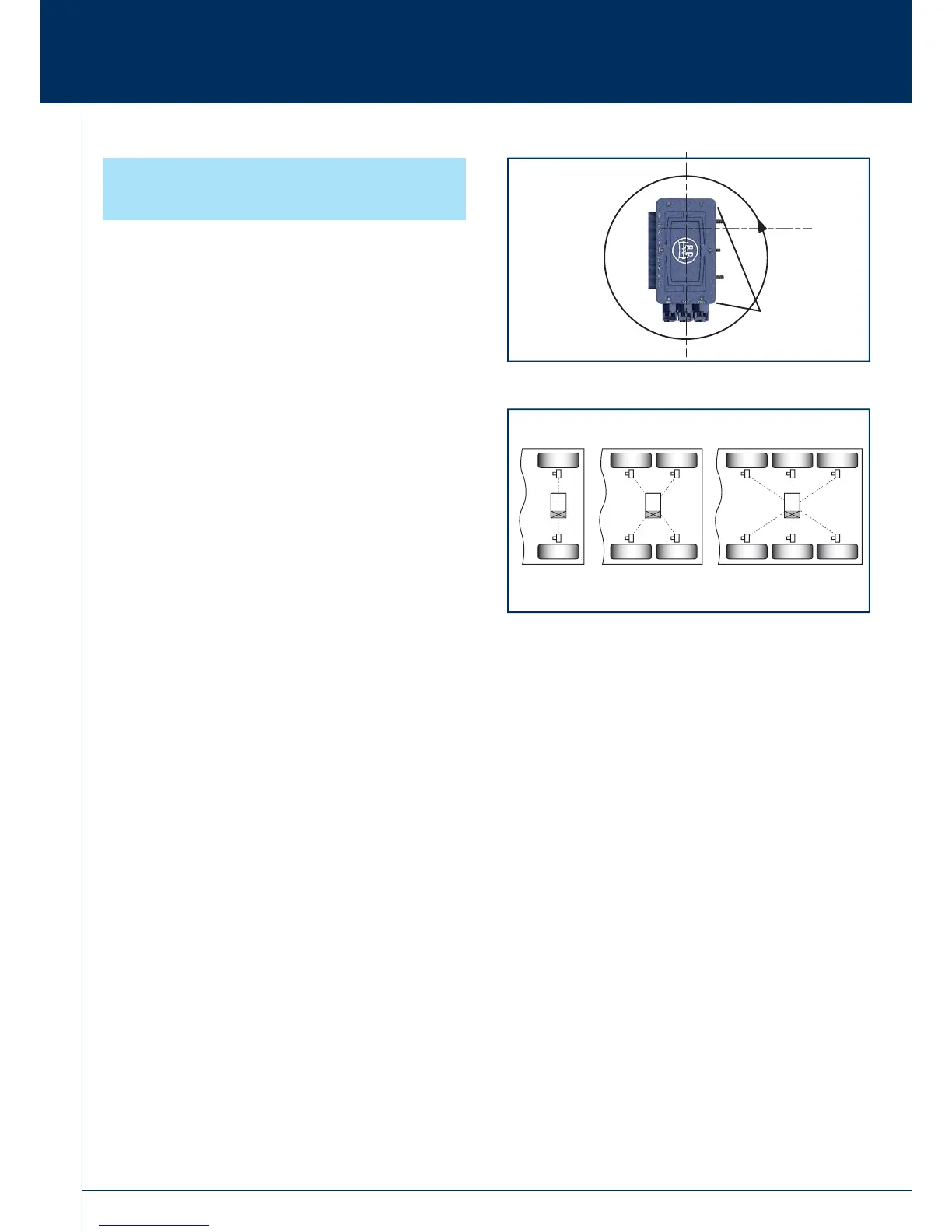

The distance between port (1) and the air reservoir should be
as short as possible (Fig. 24).
Mount the Modulator centrally to the brake chambers (Fig. 25).
A : Single axle
B : Tandem axle
C : Tri-axle
For corrosion reasons do not attach the Modulator directly onto
stainless steel.
AB C
Fig. 25
Fig. 24
22
21
(1)
360º
22
21
22
21
3.1.1 Position without Trailer
Roll Stability (TRS) function
