BPW ECO Tronic EBS - 5.3 Soft Docking

80
5 Installation and Operating Instructions
5.3 Soft Docking
Increased control into reversing through
innovation and engineering
Reversing into docking bays has always been an area where
damage is likely to occur to the vehicle or the dock if the vehicle
is allowed to hit the dock at speed.
BPW offers added security with Soft Docking, when linked to
the ECO Tronic EBS which can apply the brakes automatically
when reversing into a loading bay.
Benefi ts:
• Independent from truck braking system
• Measures braking power to match load and speed
• Audible and visual reversing aids
• Silent mode for night deliveries
The system cannot replace the driver’s responsibility to ensure
a clear passage when manoeuvring. BPW cannot be held
responsible for any accidents encountered when using the
system.

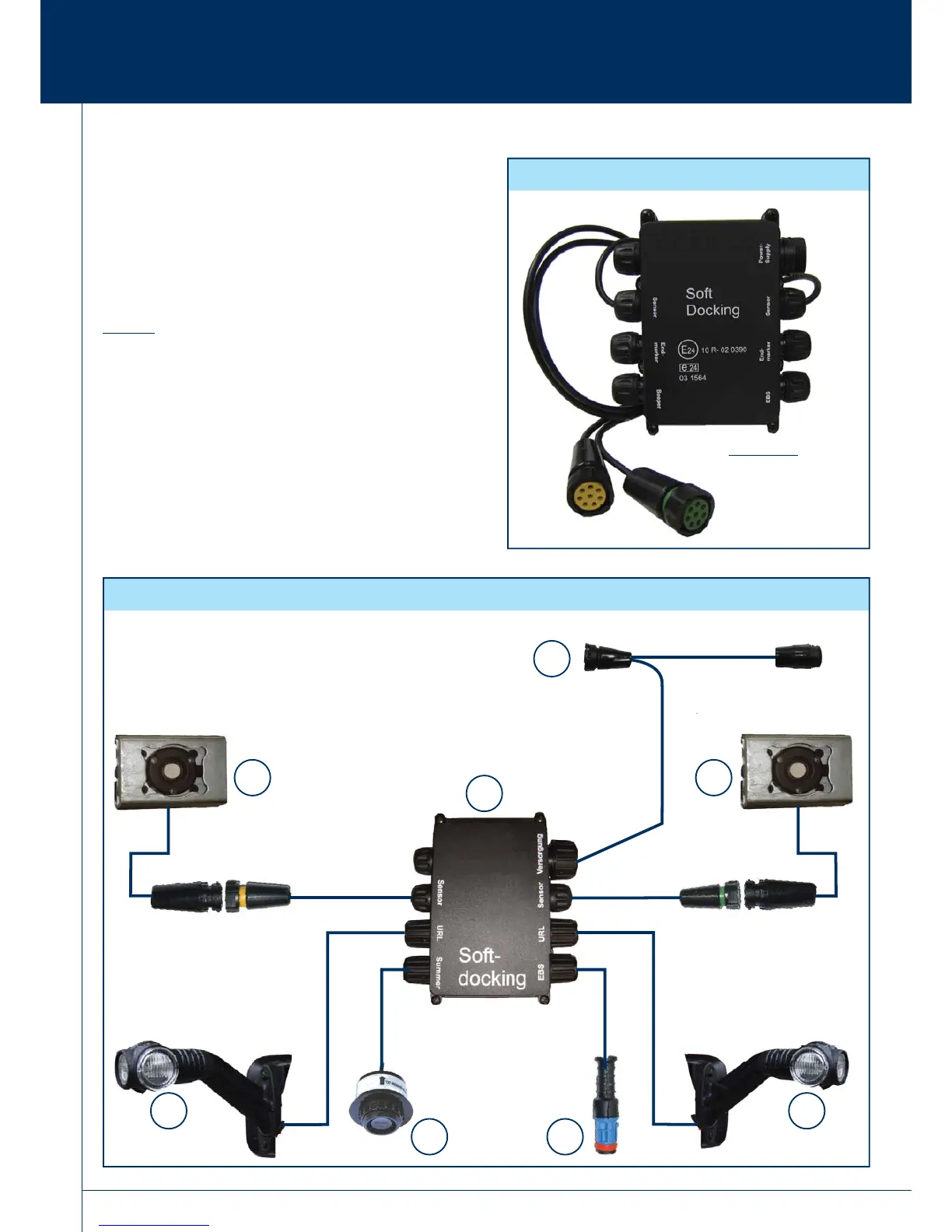

Soft Docking
Fig. 140
2.
3.
200 mm
12 x 1 + 3 x 2.5 mm
2
8000 mm
7 x 1 mm
2
1500 mm
4 x 0.75 mm
2
8 pol.SW 8 pol.GE
8 pol. GN 8 pol. SW
1000 mm
4 x 0.75 mm
2
1000 mm
4 x 0.75 mm
2
2100 mm
2 x 1 mm
2
2100 mm
2 x 1 mm
2
7000 mm
3 x 0.75 mm
2
4000 mm
2 x 1 mm
2
4. 6.
5.
5.
3.
1.
1500 mm
4 x 0.75 mm
2
1. Soft Docking junction box including the electronics.
2. Power Supply Cable
3. Adjustable sensor in protective housing
4. Reversing Alarm (Audible warning system)
5. Warning lights (visual warning signals)
6. Auxiliary cable to EBS
Components
Dimensions
Width: 234.5 mm
Height: 155.5 mm
Fig. 141
