45
DIN connector
ILAS
®
-E
3.2 Electrical wiring
Traction assist is made operative by a 24 V (constant or
intermittent) supply to the yellow wire in the 3 core auxiliary
cable connected to AUX 2 or AUX 3 and programmed as
ILAS
®
-E Front.
AUX 4, 5 or SAUX A,B,C can be used as an alternative.
Function: On request for traction assist, front axle lifts.
The front axle drops when either :
• The vehicle speed exceeds 30 km/h or
• The suspension pressure reaches more than 130% of the
laden bag pressure.

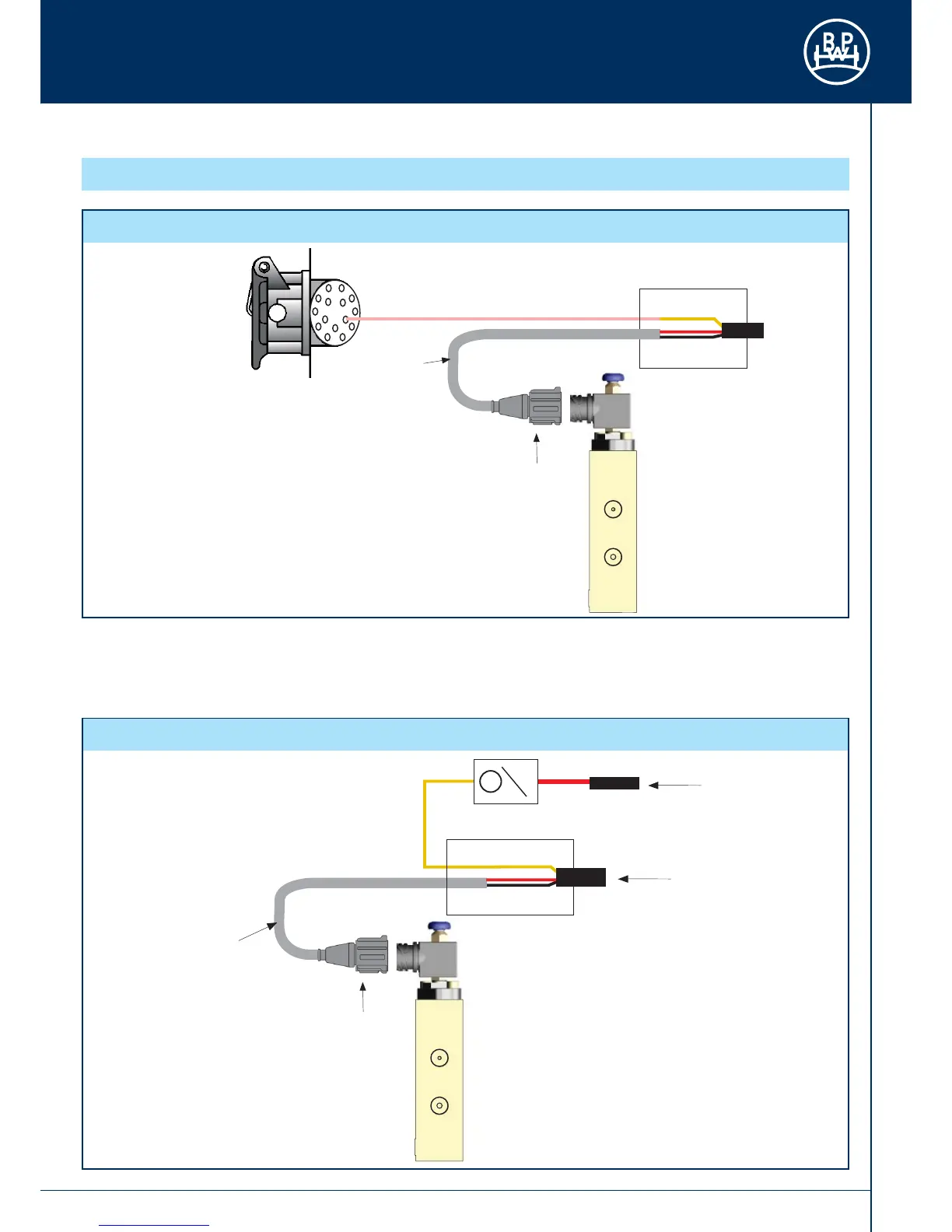

Fig. 80
2 Core cable
1.5 mm²
ISO 12098
(15 Pin)
12
24 V Pink 1.5 mm²
Junction box
Yellow
24 V from Truck
Traction Assist
switch
from
AUX 2 or 3
2 Core
cable
1.5 mm²
Yellow
From AUX 2/3
From AUX
1/2/3
Side-of-Vehicle
switch
Yellow 1.5 mm²
Red
Junction box
Fig. 81
Traction assist using ILAS
®
-E, option 1
Traction assist using ILAS
®
-E, option 2
ILAS
®
-E
3.2.17 Auxiliary equipment wiring
DIN connector
