BPW ECO Tronic EBS - 5.2.5 ILAS-E - Identification of Ports and Fixings

76
5 Installation and Operating Instructions
Weight: approx. 0.8 kg
Port No. Description Notes
1
Reservoir port
3
Exhaust port
11
Air bags, no lifted axles
21.1
Air bag of lifted axle
21.2
Air bag of lifted axle
22.1
Air bag respect. lifting cylinder of axle lift device
22.2
Air bag respect. lifting cylinder of axle lift device
5.2.5 ILAS
®
-E
- Identifi cation of ports and fi xings
65 mm
41 mm
18.4 mm
9.2 mm
14 mm
17 mm
67 mm
34 mm
137 mm
204. mm
40.5 mm
49.5 mm

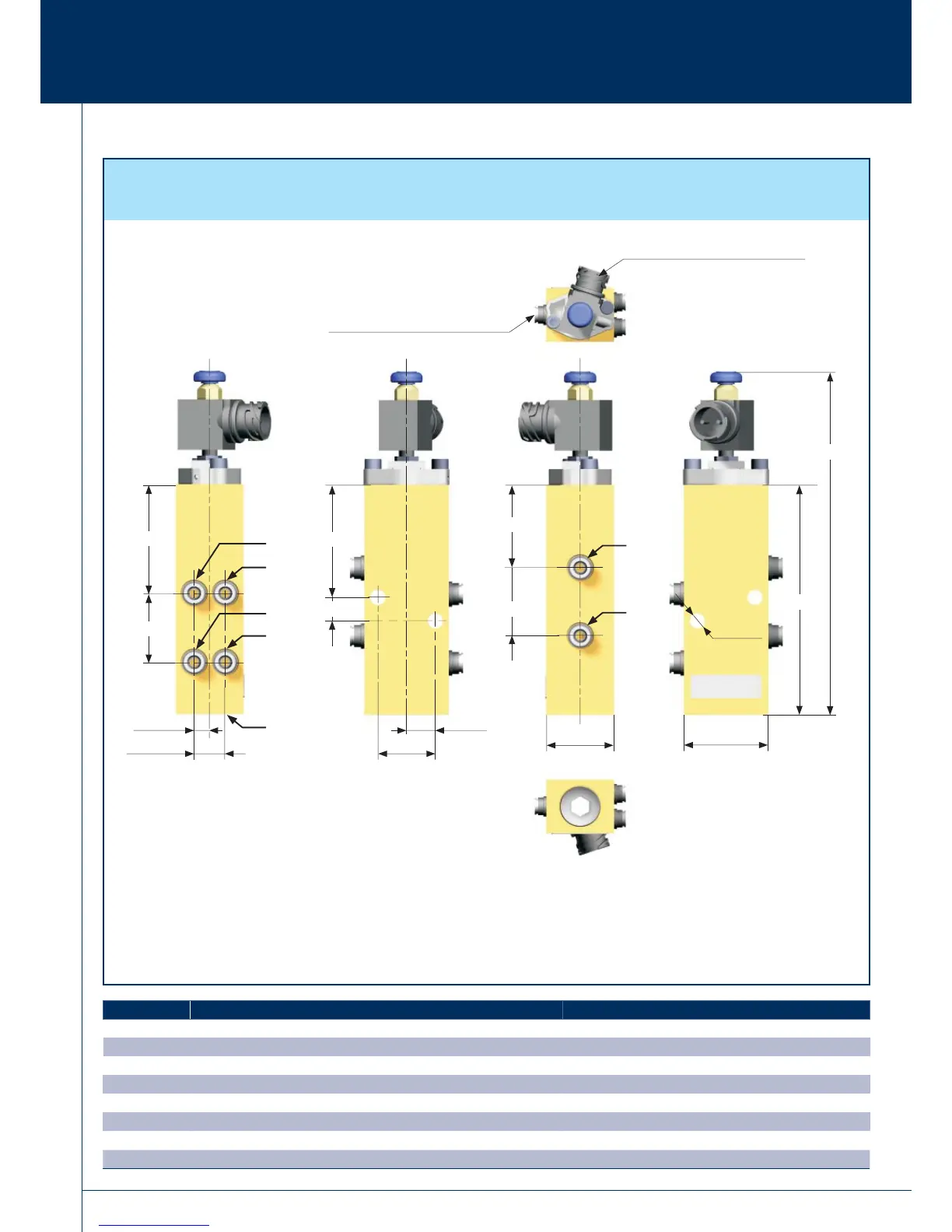

1
11
22.2
21.2
22.1
21.1
All ports
Push-in fi ttings for tube
DIN 7424 - 8x1 - 23 mm deep
3
Ø 9 mm
40 mm
50 mm
Bayonet connection according
to DIN 72585
Fig. 134
Note:
The installation of a maximum of one single-circuit lifting axle
is permitted within a three or four axle suspension.
