83

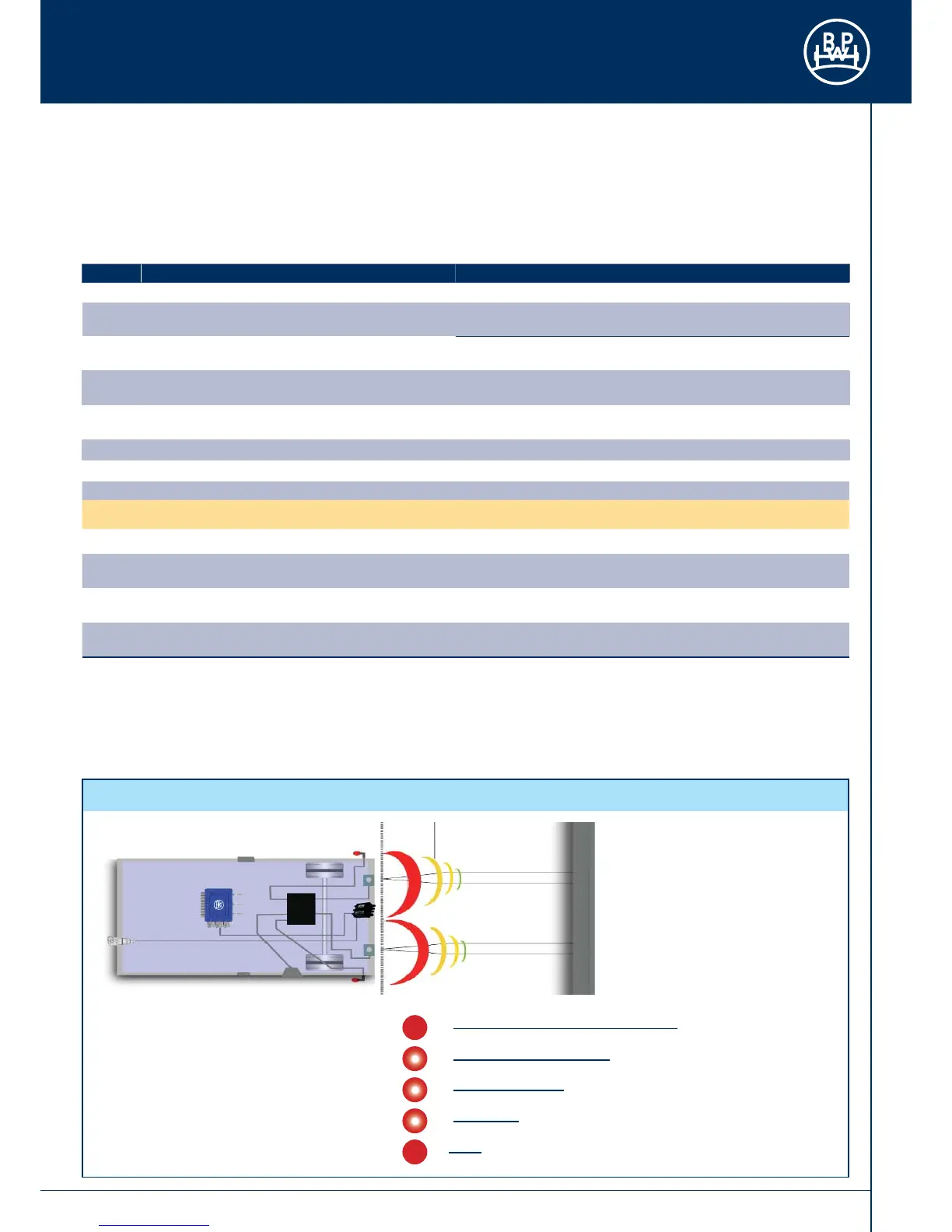

Fig. 148
Working range
Step Activity Result
1
Ignition on / Tail light on LED outline marker has to shine
2
Engage reverse gear
LED outline marker is deactivated when the radar is at 3 m from
the obstacle.
3
Place the test sample in perpendicular to a sensor
within a range of 3 m behind the vehicle
LED outline marker: slow fl ashing frequency
Reverse alarm: slow beep
4
Remove the test sample from the vehicle until the
beeping and LED outline are extinguished.
Completed phase 1 (see picture below) (area greater than 3 m)
5
Move the test sample slowly inwards towards the
trailer sensor
Run through the complete range of phases as shown within
diagram below.
6
Repeat step 4 with the second sensor See step 3/4
7
Repeat step 5 with the second sensor See step 5
Testing of the silent mode (night silent switch off)
8
Place the test sample in the distance as in step 3.
9
Engage the reverse gear twice (within 2 seconds) LED outline marker: slow fl ashing frequency
Reverse alarm: no signal
10
Let the system work for min. 10 seconds. After this,
disengage the reverse gear.
11
Engage reverse gear once only.
LED outline marker: slow fl ashing frequency
Reverse alarm: returns to slow beep frequency
> 3 meters
2.0 - 3.0 meters
Permanent Tone / Lamp
8 Beeps per sec (8 Hz) / Flashes
5 Beeps per sec (8 Hz) / Flashes
3 Beeps per sec (3 Hz) / Flashes
No Beep / Flashes
< 0.5 meters
0.5 - 1.0 meters
1.0 - 2.0 meters
Please note during the function test
that the test sample will be moved
always perpendicular to the respective
sensor axis.
The maximum detectable distance is
3 m from the sensor and detection is
shown below in fi ve phases. Please
study the sketch below.
Principle of operation
The controlled automatic braking commences at 1 meter
distance from the dock. The system is equipped with distance
sensors and distance from the dock is fi rst detected when the
trailer is in reverse and less than 3 meters away from the dock.
5.3 Soft Docking
The braking command is delivered from the ECO Tronic EBS
via an auxiliary port. The braking at 1 meter distance lasts for 2
seconds before the system releases the brakes giving control
back to the driver.
Functional Test
After the installation is completed you should test the system
thoroughly. For this test you require a test sample (preferred
material is a cardboard box approx. 500 x 500 mm, if there
is no box available, you can use a similar object material with
a smooth surface). Please ensure that there are no obstacles
situated within the range of 4 m x 4 m behind the vehicle. The
test procedure must be carried out in the following steps:
