DIGGING CHAIN OPTIONSDIGGING CHAIN OPTIONS

DIGGING CHAIN OPTIONSDIGGING CHAIN OPTIONS

DIGGING CHAIN OPTIONS

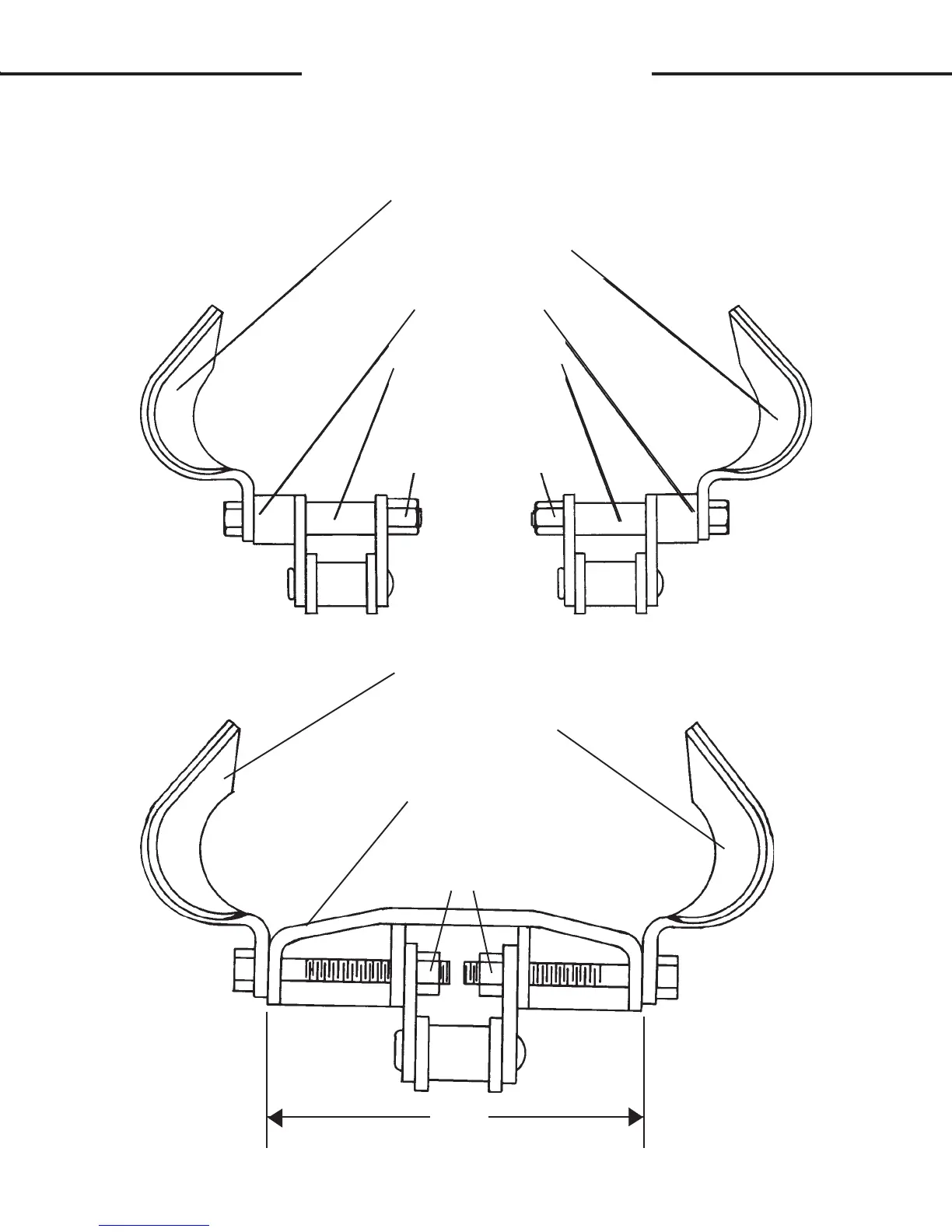

2.00" PITCH DIGGING TOOTH STATION BREAK DOWN

J

J

DIRT TOOTH, LEFT

PART #54431

DIRT TOOTH, RIGHT

PART #54432

SPACER BAR

PART #54439

1.81" SPACER TUBE

PART #54440

4.50" CAPSCREW

PART #1351

WITH NUT #1692

DIRT TOOTH, LEFT

PART #54431

DIRT TOOTH, RIGHT

PART #54432

10" CHAIN SPACER

PART #54441

3.25" CAPSCREW

PART #1347

WITH NUT #1692

6.50

5810

3-2-92

8" RIGHT STATION8" LEFT STATION

10" STATION
