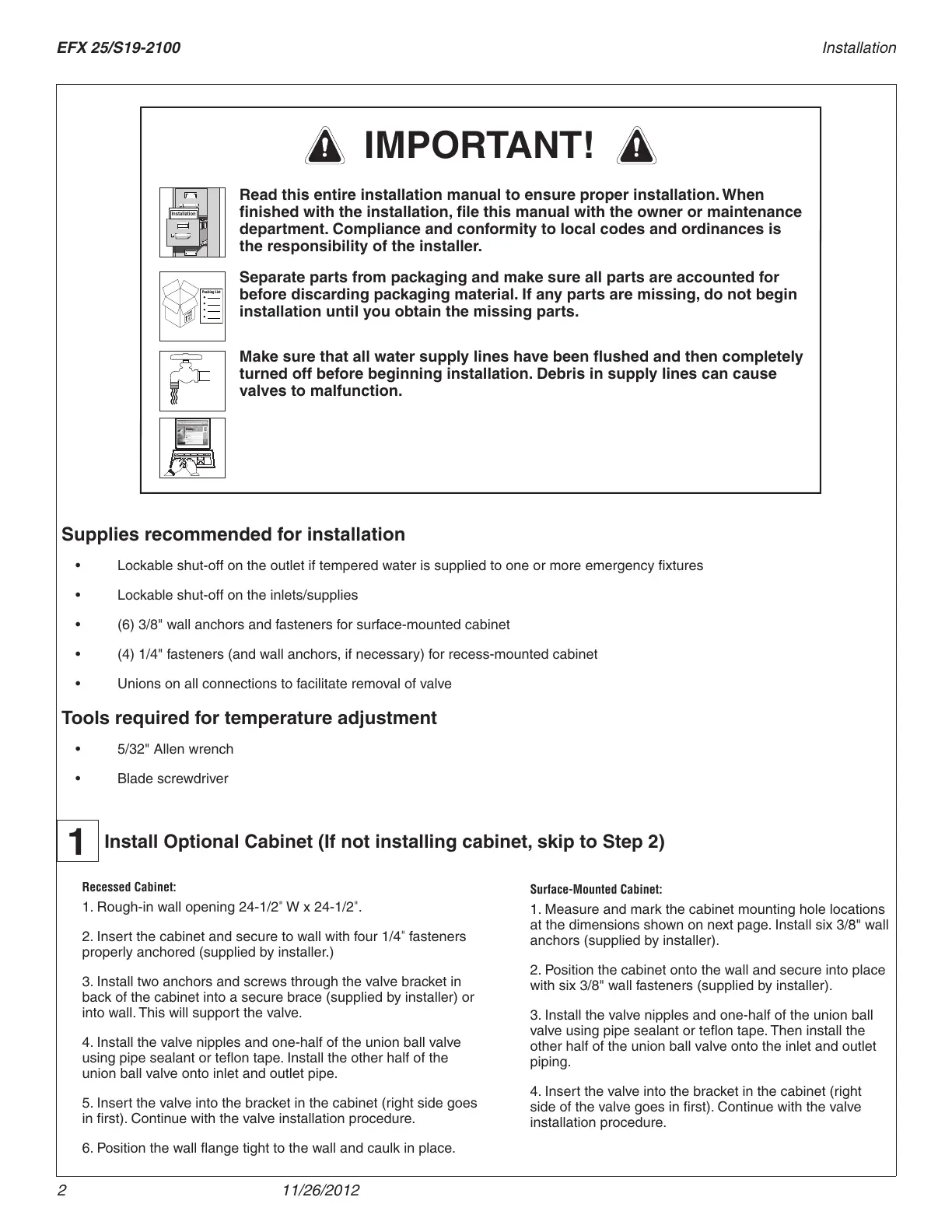

EFX 25/S19-2100 Installation
2
11/26/2012
Supplies recommended for installation
Tools required for temperature adjustment
1
Install Optional Cabinet (If not installing cabinet, skip to Step 2)
Recessed Cabinet:
" W x 24-1/2".
" fasteners
properly anchored (supplied by installer.)
4. Install the valve nipples and one-half of the union ball valve
using pipe sealant or teflon tape. Install the other half of the
union ball valve onto inlet and outlet pipe.
Surface-Mounted Cabinet:
anchors (supplied by installer).
3. Install the valve nipples and one-half of the union ball
valve using pipe sealant or teflon tape. Then install the
other half of the union ball valve onto the inlet and outlet
piping.
installation procedure.
IMPORTANT!
Read this entire installation manual to ensure proper installation. When
finished with the installation, file this manual with the owner or maintenance
department. Compliance and conformity to local codes and ordinances is
the responsibility of the installer.
Separate parts from packaging and make sure all parts are accounted for
before discarding packaging material. If any parts are missing, do not begin
installation until you obtain the missing parts.
Make sure that all water supply lines have been flushed and then completely
turned off before beginning installation. Debris in supply lines can cause
valves to malfunction.
