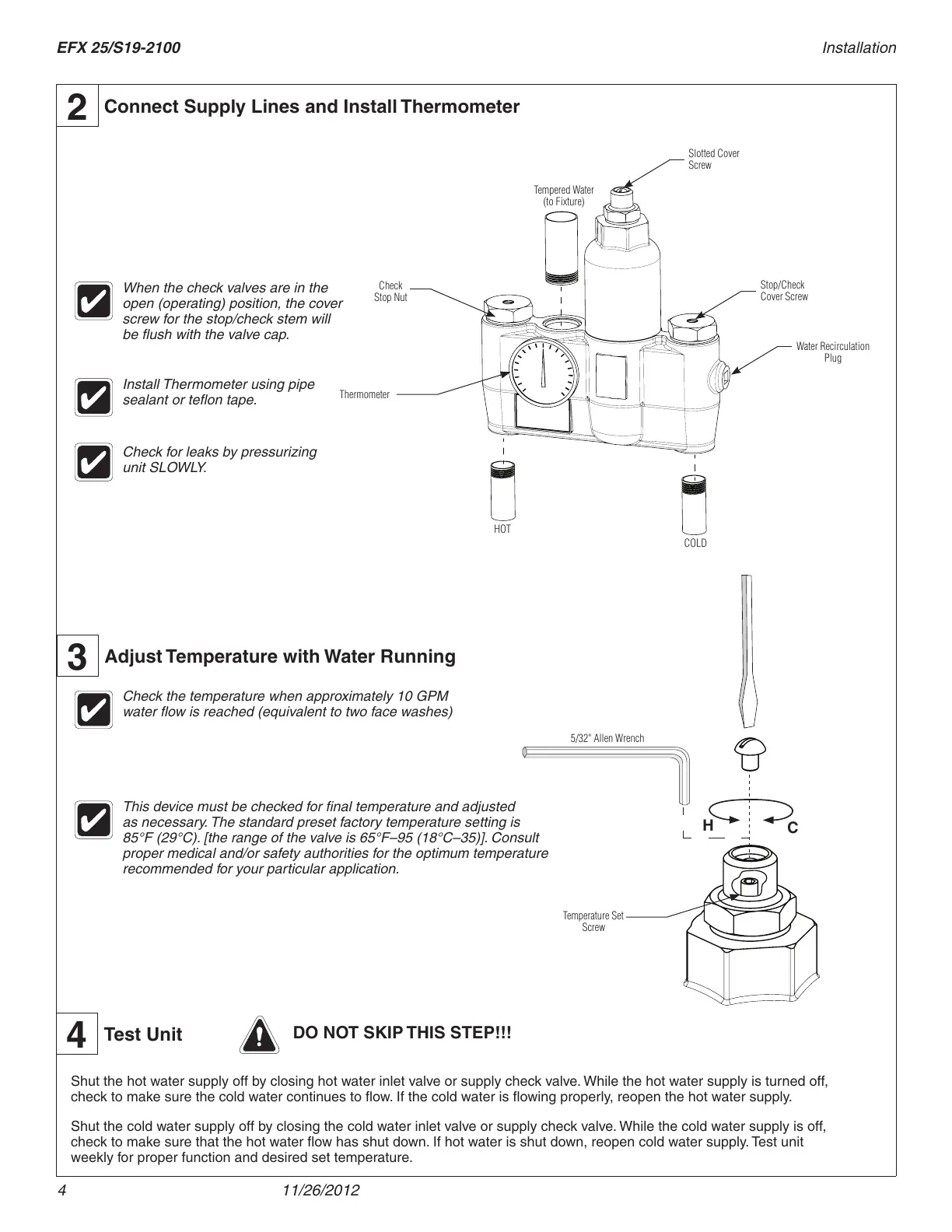

EFX 25/S19-2100 Installation
4
11/26/2012
2
Connect Supply Lines and Install Thermometer
3
Adjust Temperature with Water Running
When the check valves are in the
open (oper
a ting) position, the cover
screw for the stop/check stem will
be flush with the valve cap.
Check for leaks by pressurizing
unit SLO
WLY.
Install Thermometer using pipe
sealant or teflon tape
.
Check the temperature when approximately 10 GPM
w
ater flow is reached (equivalent to two face washes)
Stop/Check
Cover Screw
Check
Stop Nut
Water Recirculation
Plug
Thermometer
Tempered Water
(to Fixture)
HOT
COLD
C
H
4
Test Unit
DO NOT SKIP THIS STEP!!!
This device must be checked for final temperature and adjusted
as necessar
y. The standard preset factory temperature setting is
proper medical and/or safety authorities for the optimum temperature
recommended for your particular application.
5/32" Allen Wrench
Slotted Cover
Screw
Temperature Set
Screw
To Next Page
