Braeburn 1220 - About Your Thermostat; Thermostat Display Elements; Thermostat Location

1
Single Stage Heat / Cool
Conventional and Heat Pump
5 Setting User Options
6
Operating Your Thermostat
7 Additional Operation Features
8 Thermostat Maintenance
For installation by experienced service
technicians only.
Up to 2 Heat / 2 Cool
Conventional and Heat Pump
Read all instructions before proceeding.
2

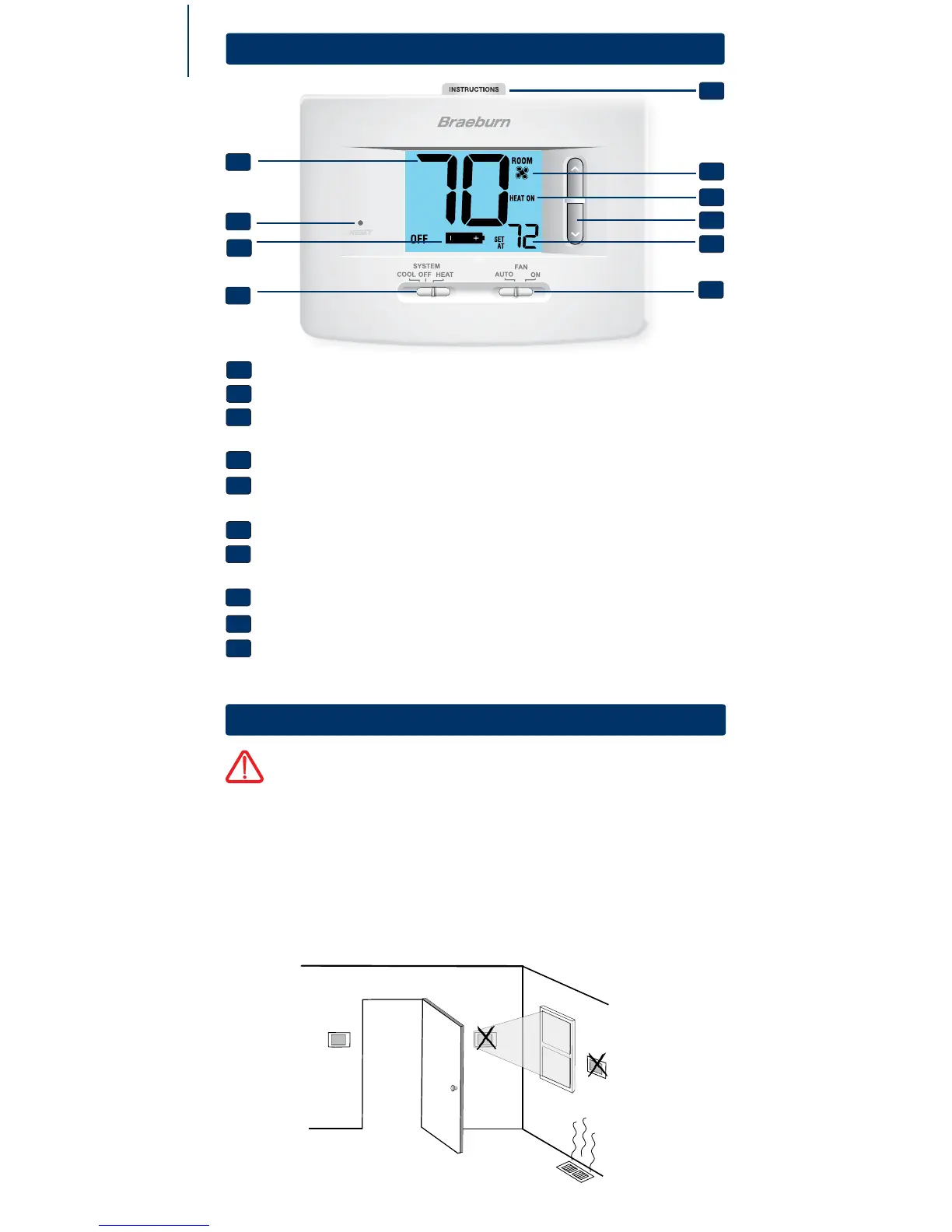

About Your Thermostat
Room Temperature........... Displaysthecurrentroomtemperature
Reset Button..................... Resetsthermostatbacktofactorydefaults
Low Battery Indicator...... Indicateswhenthebatteriesneedto
  bereplaced
System Switch.................. Selectssystempreference
Quick Reference
Instructions ......................Storedinslotattopofthermostat
Fan Indicator.................... Indicateswhenthesystemfanisrunning
System Status Indicator...Displaysinformationaboutthestatusof
   thesystem
Arrow Buttons.................. Usedtoincreaseordecreasesettings
Set Temperature...............Displaysthecurrentsetpointtemperature
Fan Switch........................Selectsthesystemfanmode
Battery Compartment............... Locatedinthebackofthethermostat
1
2
3
4
5
1
2
3
3
Installation
Warning
Disconnect power before beginning installation.
Thermostat Location
Installthethermostatapproximately5feet(1.5m)abovetheoorinan
areathathasagoodamountofaircirculationandmaintainsanaverage
roomtemperature.
Avoidinstallationinlocationswherethethermostatcanbeaffectedby
drafts,deadairspots,hotorcoldairducts,sunlight,appliances,concealed
pipes,chimneysandoutsidewalls.
