7. DASH METER
FUNCTIONS

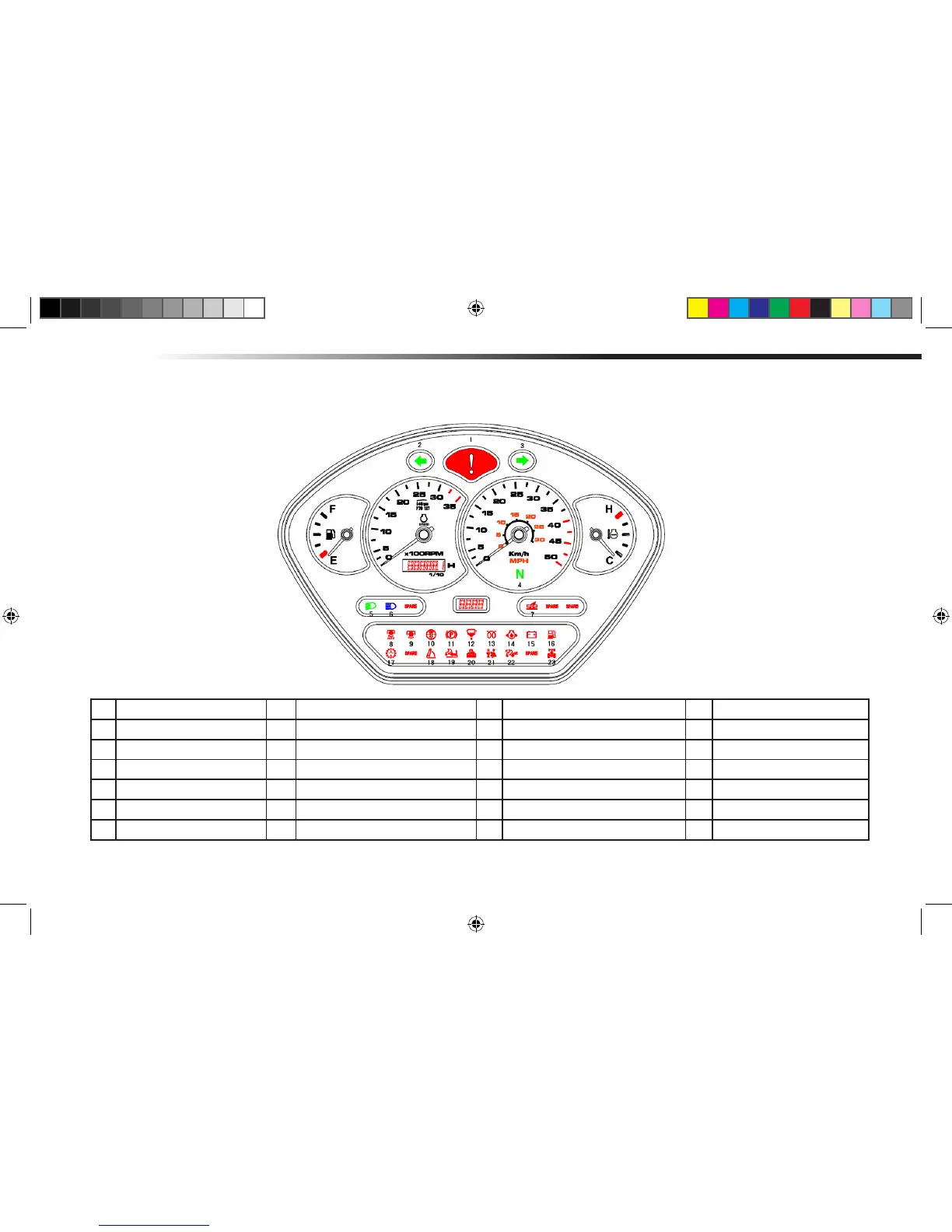

1 WARNING 2 DIRECTION LAMP (LH) 3 DIRECTION LAMP (RH) 4 NEUTRAL INDICATOR
5 HIGH-BEAM 6 LOWER-BEAM 7 BRAKE PEDAL CONNECTION 8 N/A
9 PTO 10 N/A 11 PARKING BRAKE 12 N/A
13 PRE-HEAT 14 OIL PRESSURE 15 CHARGING 16 FUEL EMPTY
17 T/M WARNING 18 3PT HITCH LIFT UP 19 TOWING POWER 20 N/A
21 N/A 22 N/A 23 MFWD A FUEL GAUGE
B RPM INDICATOR C SPEED METER D COOLANT TEMP GAUGE E ERROR CODE DISPLAY
A B C D
E
