Brasch GSE Generation 2 - Page 43

IOM01
Rev 1.0 – December 22, 2020 43
50/100 Configuration
(Factory Default)
2-SPEED Configuration

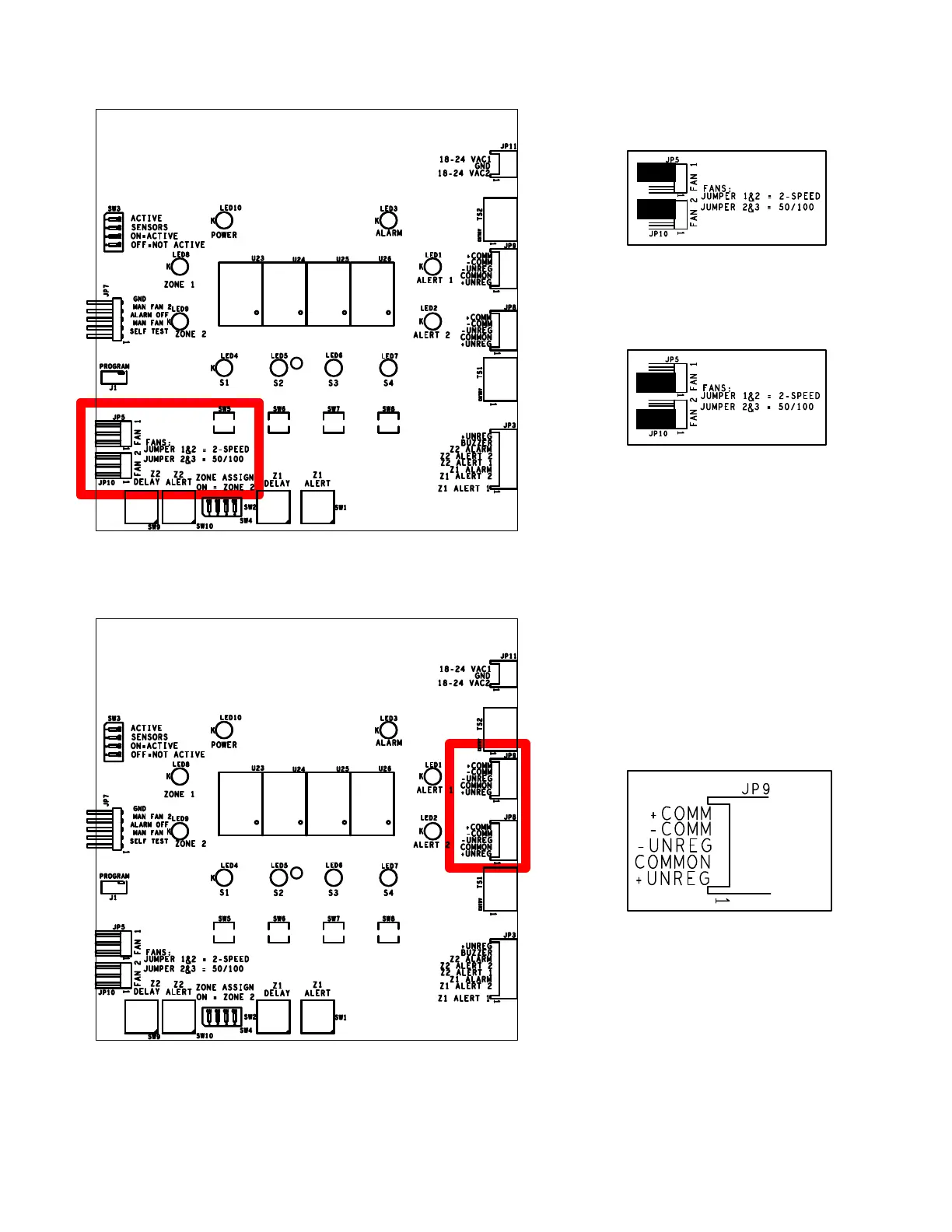

Figure 9: Fan Settings
Brown
Blue
Black
Green
Red
Figure 10: Sensor Wiring Color Code – Control Board
