Bray 92 Series User Manual

11
All information herein is proprietary and condential and may not be copied or reproduced without the expressed written consent of BRAY INTERNATIONAL, Inc.
The technical data herein is for general information only. Product suitability should be based solely upon customer’s detailed knowledge and experience with their application.
Series 92-93 Pneumatic Actuator
Operations and Maintenance Instructions
22
7
3
6
21
16
15
13 14 12
10
20
11
19
24
23
8
9
1
2
5
17 18 4
Item No Qty. Description
1 1 Body
2 2 Piston
3 1 Pinion
4 2 End Cap
5 12 max. Spring Cartridge
6 1 Upper Pinion Bearing
7 1 Lower Pinion Bearing
8 1 Retaining Ring
9 1 Washer, Acetal
10 2 Bearing Pad, Acetal
11 2 Guide Ring, Acetal
12 2 Lock Nut
Item No Qty. Description
13 2 Travel Stop Screw
14 2 O-ring, Travel Stop
15 1 Spacer, Int. Travel Stop
16 1 Cam, Internal Travel Stop
17 8 Hex Head Cap Screw
18 8 Washer, Stainless Steel
19 2 O-ring, Piston
20 2 O-ring, End Cap
21 1 O-ring, Upper Pinion
22 1 O-ring, Lower Pinion
23 1 Position Indicator Pointer
24 1 Flat Head Screw

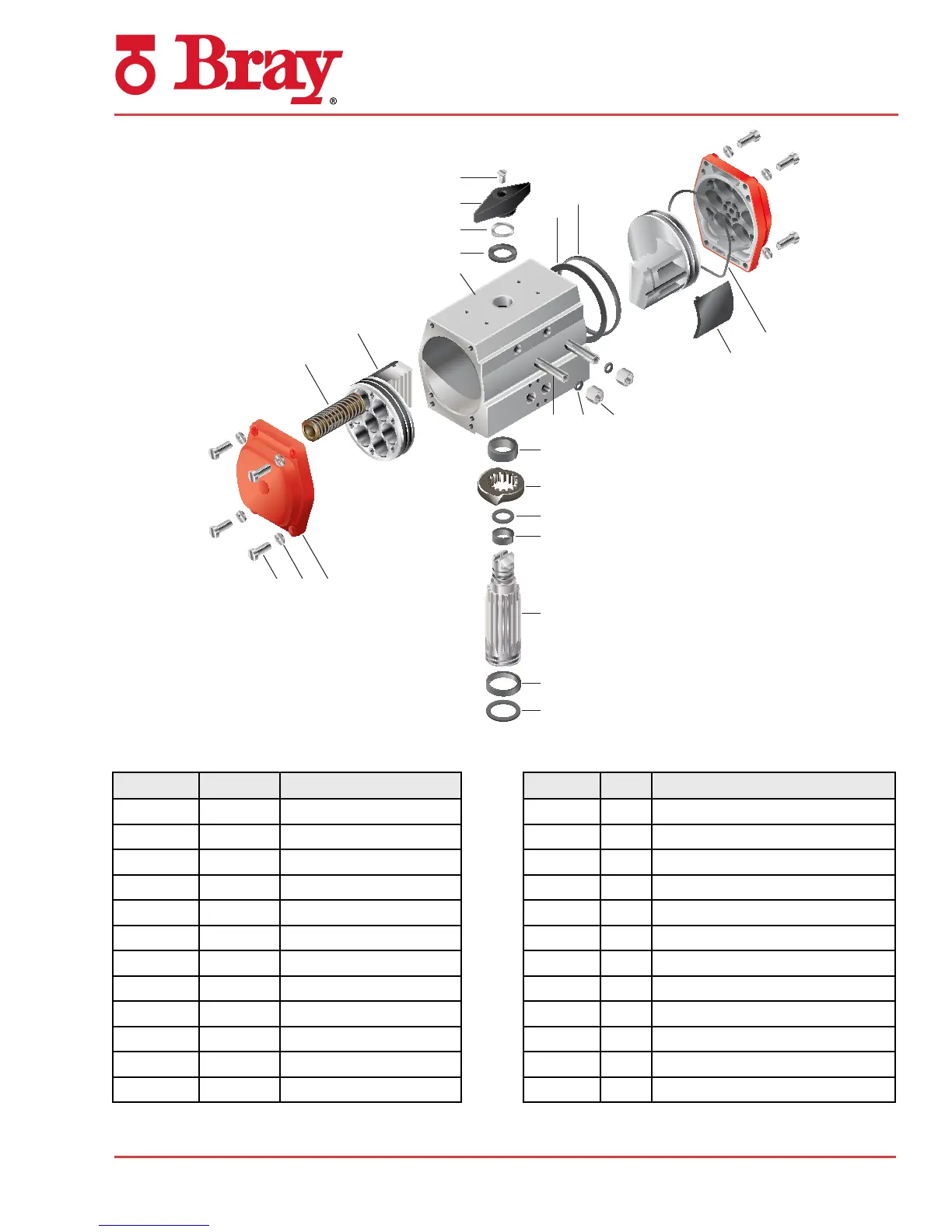

Figure 3: Series 92/93 exploded-view

Bray 92 Series Specifications

General

Output	Relay
Control Mode	PID, On/Off
Power Supply	100-240V AC
Input Voltage	24V AC/DC, 100-240V AC
Output Current	4-20mA
Protection Class	IP65
