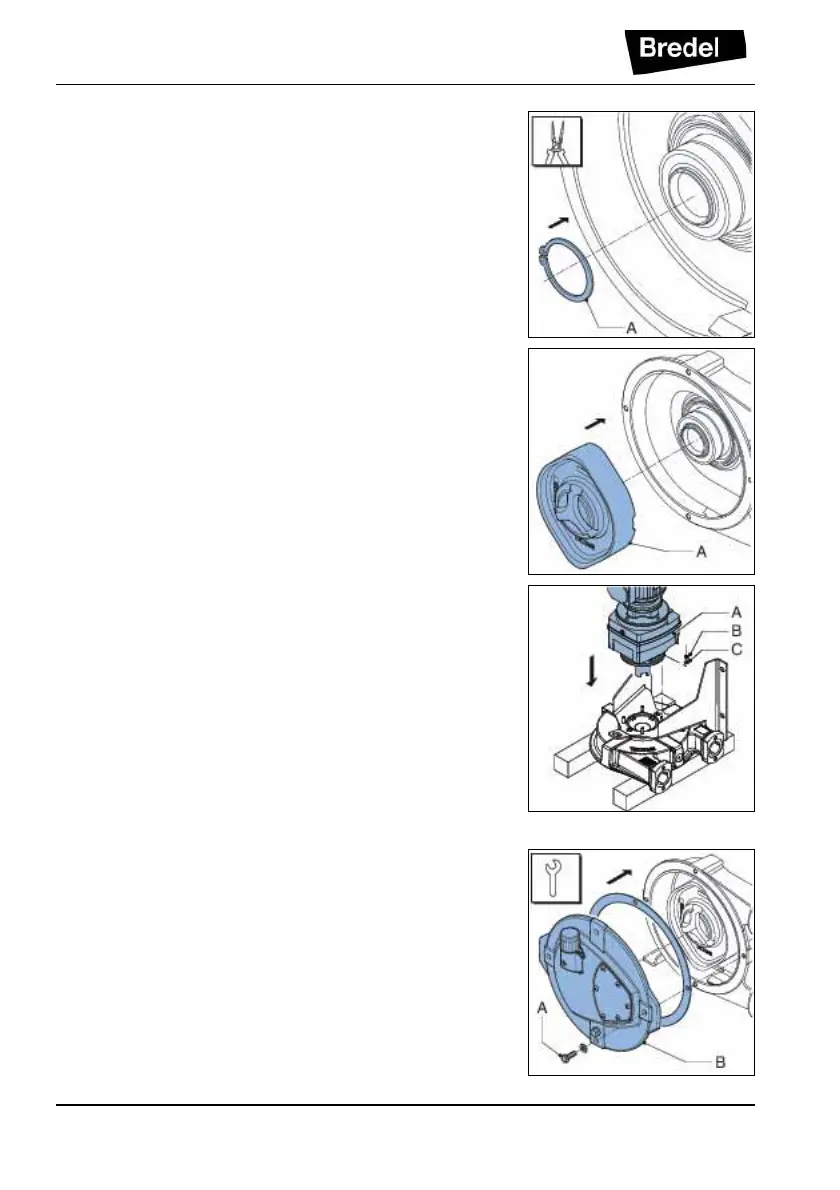

15. Mount the circlip (A).
16. Fit the rotor (A). The rotor is placed on the
bearings with a loose fit. Press the rotor on the
hub until it clicks on the retaining ring.
17. Put the hose pump on two blocks.
18. Fit the pump drive (A) with the nuts (B) and
washers (C). Tighten to the specified torque
settings. Refer to § 11.1.6.
19. Put the hose pump upright on the support.
20. Check the position of the rotor. If necessary
press the rotor on the hub until it clicks on the
retaining ring.
21. Refit the cover (B). Make sure that the 4 bolts
(A) are refitted and that they are tightened in the
correct order, diagonally opposite each other.
Refer to § 11.1.6.
22. Switch on the electrical supply to the pump.
23. Fit the (new) pump hose. Refer to § 7.6.3.
