8

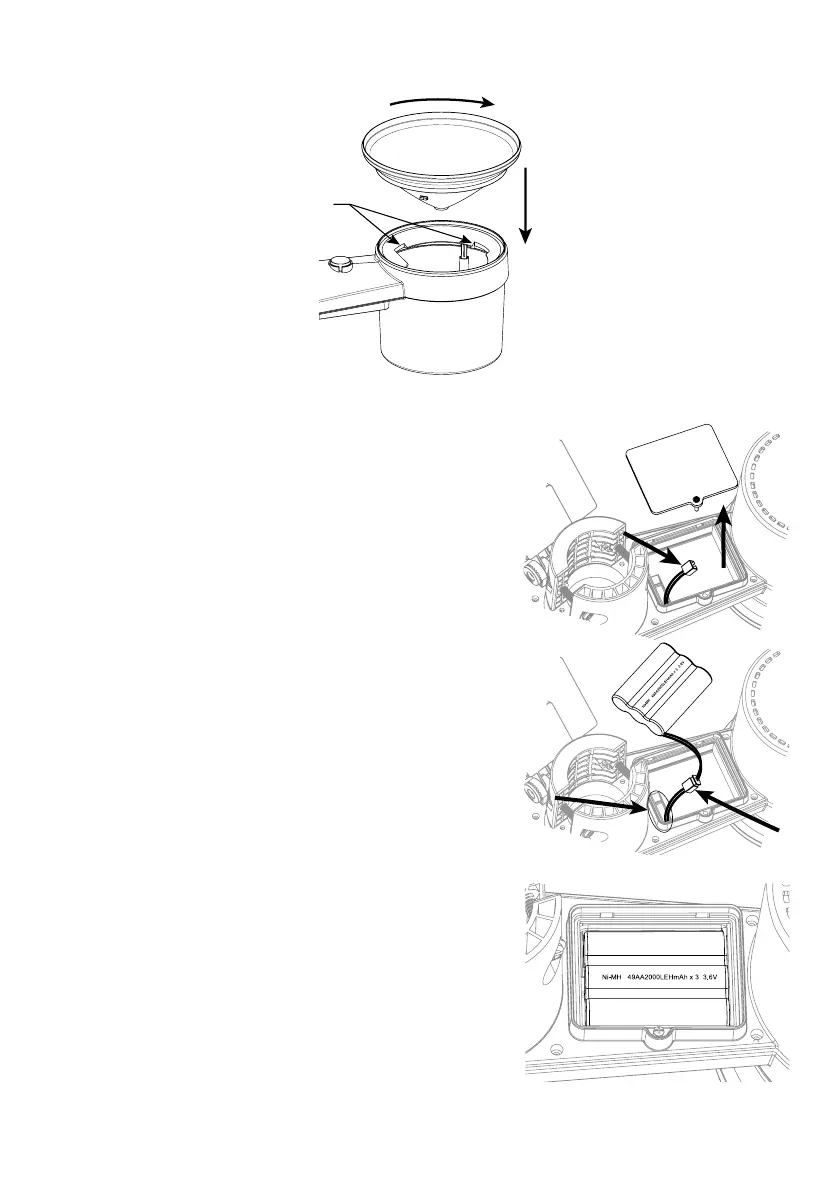

3.1.2 INSTALL RAIN GAUGE FUNNEL
Insert the funnel into the rain gauge and turn it clockwise to attach the funnel to the sensor.
Lock
grooves
Step 2
Step 1
3.1.3 INSTALL RECHARGEABLE BATTERIES
Step 1: Unscrew the battery door at bottom of unit and
take out the cable socket.
Step 2: Connect the Ni-MH rechargeable battery plug to
the socket.
Step 3: Make sure the red LED indicator on the back of
the sensor array is turn on and then begin ashing every
12 seconds.
Step 4: Adjust the cable and socket into shallow hole
and put the battery pack into the battery compartment.
