brevini Dana E Series - Types

12
PART LIST OF STANDARD TYPE GEAR UNITS
Dana Incorporated IMM-0017EN - Installation and Maintenance Manual
4.4 E....03 TYPES
IMPORTANT:

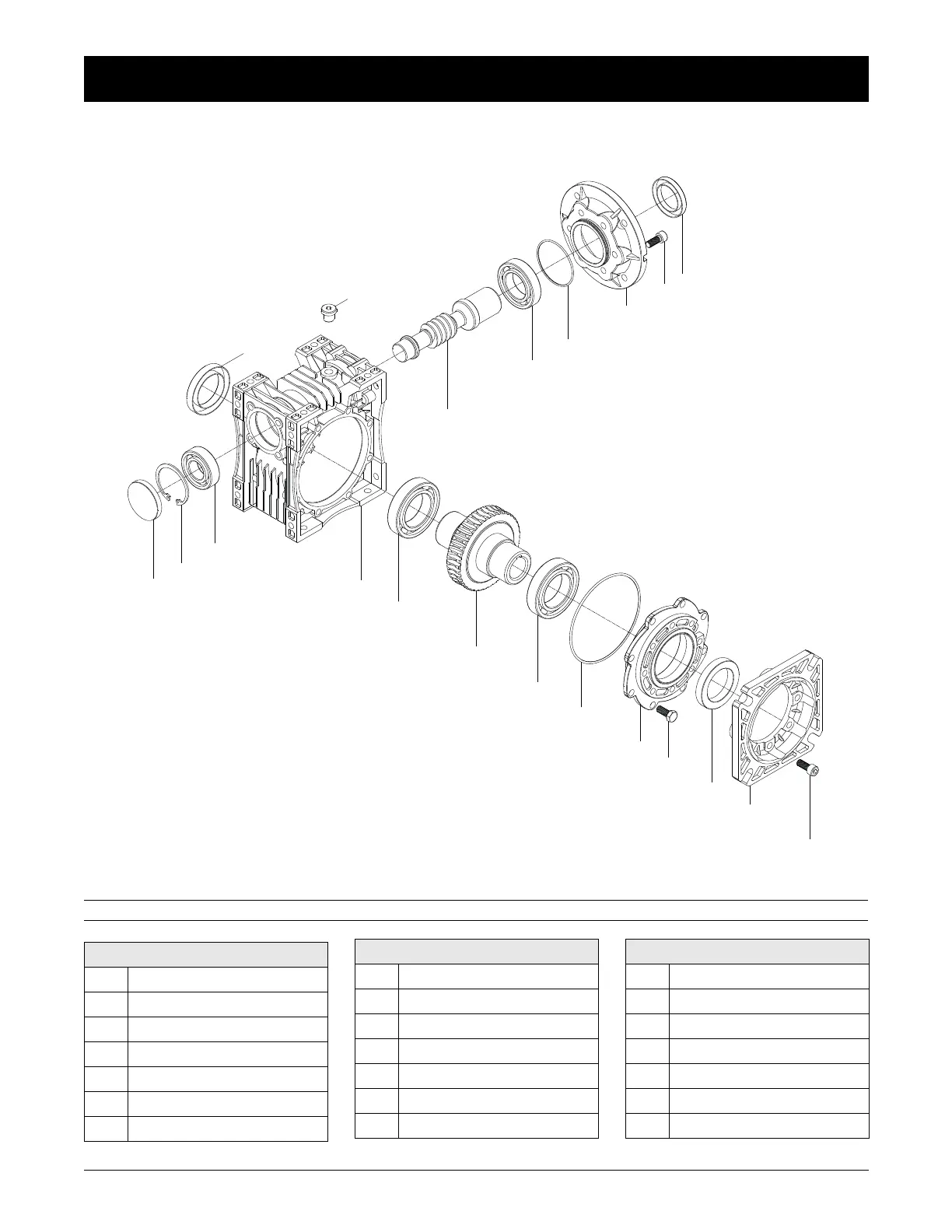

Standard E...03... type basic part diagram. Parts may differ for special applications.
2
1
9
8
3
4
5
6
7
10
13
12
11
14
15
16
17
18
19
20
21
Standard Part List
1Bolt
2Flange
3Seal
4Bolt
5Side Cover
6O-Ring
7Bearing
8Worm Wheel
9Bearing
10 Housing
11 Closing Cap
12 Circlips
13 Bearing
14 Seal
Standard Part List
15 Oil Plug
16 Worm Gear
17 Bearing
18 O-Ring
19 Motor Flange
20 Bolt
21 Seal
Standard Part List
