brevini Dana E Series - Types

14
PART LIST OF STANDARD TYPE GEAR UNITS
Dana Incorporated IMM-0017EN - Installation and Maintenance Manual
4.6 E....05 TYPES
IMPORTANT:

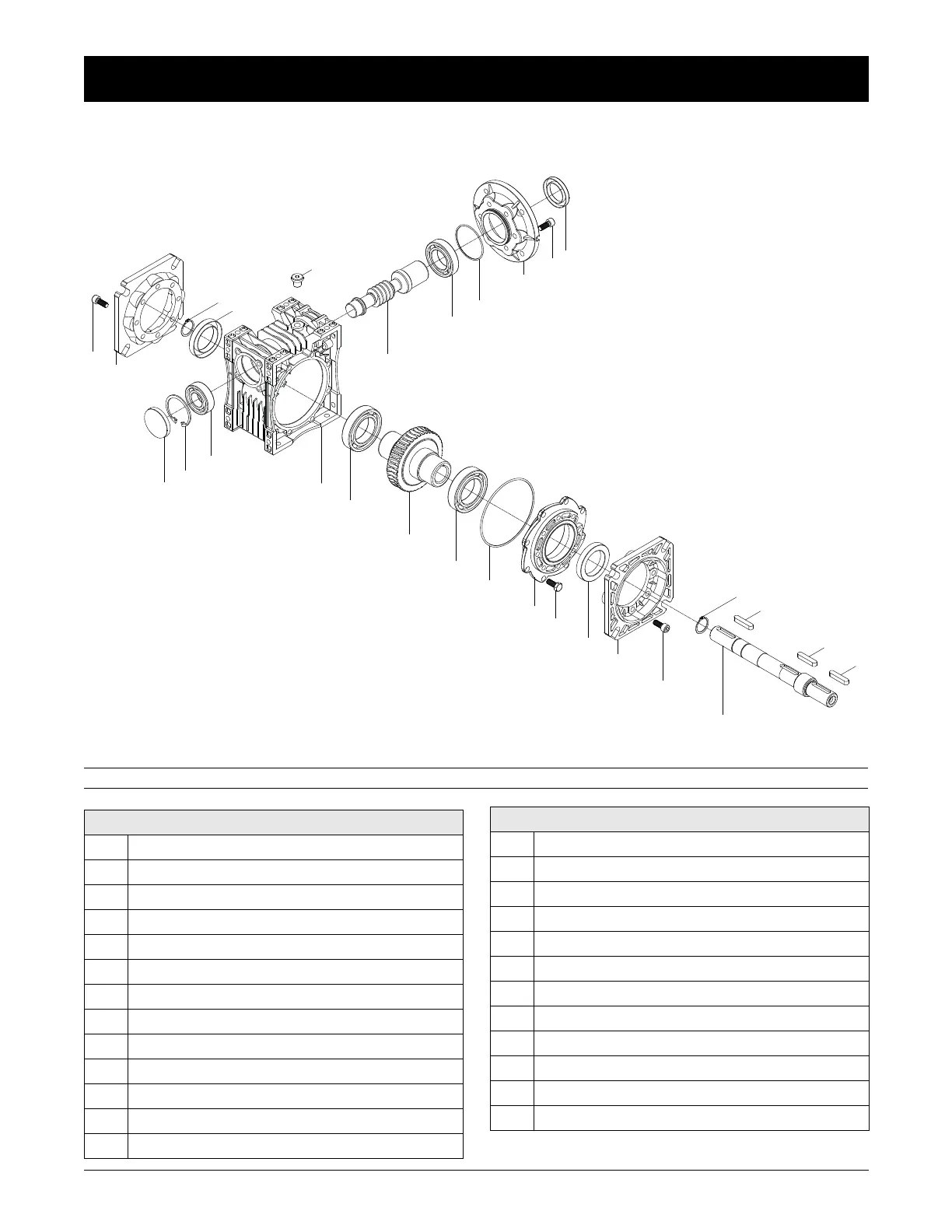

Standard E...05... type basic part diagram. Parts may differ for special applications.
6
7
8
9
13
16
15
14
18
19
20
21
22
23
24
25
5
4
12
11
2
10
4
5
17
1
1
1
3
Standard Part List
1Key
2Solid Output Shaft
3Circlips
4Bolt
5Flange
6O-Ring
7Bolt
8Side Cover
9O-Ring
10 Bearing
11 Worm Wheel
12 Bearing
13 Housing
14 Closing Cap
15 Circlips
16 Bearing
17 Circlips
18 Seal
19 Oil Plug
20 Worm Gear
21 Bearing
22 O-Ring
23 Input Flange
24 Bolt
25 Seal
Standard Part List
