PART LIST OF STANDARD TYPE GEAR UNITS
13Dana IncorporatedIMM-0017EN - Installation and Maintenance Manual
4.5 E...04 TYPES
IMPORTANT:

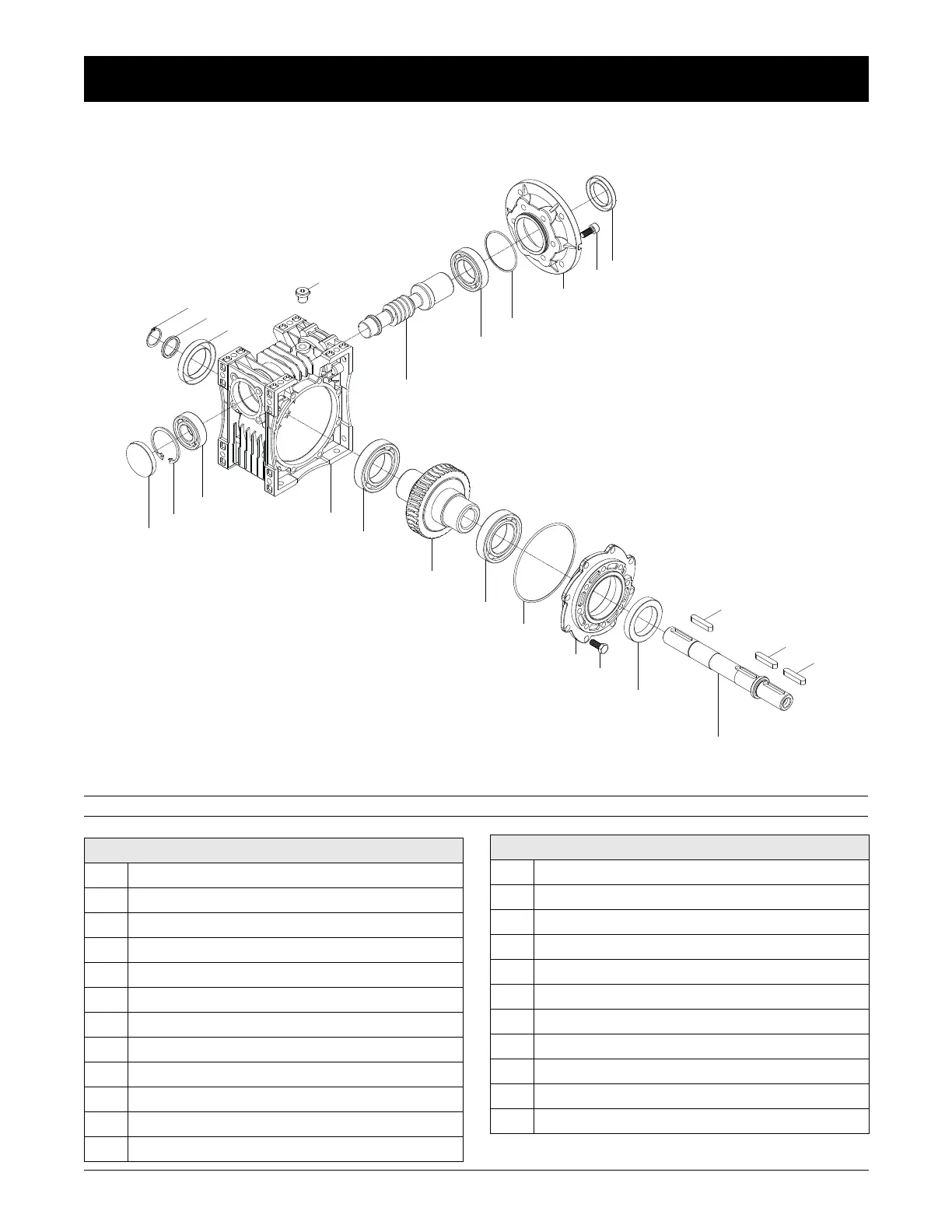

Standard E...04... type basic part diagram. Parts may differ for special applications.
20
21
22
23
2
1
1
1
15
14
3
4
5
6
7
8
9
10
13
12
11
16
17
18
19
Standard Part List
1Key
2Solid Output Shaft
3Seal
4Bolt
5Side Cover
6O-Ring
7Bearing
8Worm Wheel
9Bearing
10 Housing
11 Closing Cap
12 Circlips
13 Bearing
14 Circlips
15 Washer
16 Seal
17 Oil Plug
18 Worm Gear
19 Bearing
20 O-Ring
21 Input Flange
22 Bolt
23 Seal
Standard Part List
