4 PART LIST OF STANDARD TYPE GEAR UNITS
4.1 E....00 TYPES
IMPORTANT:

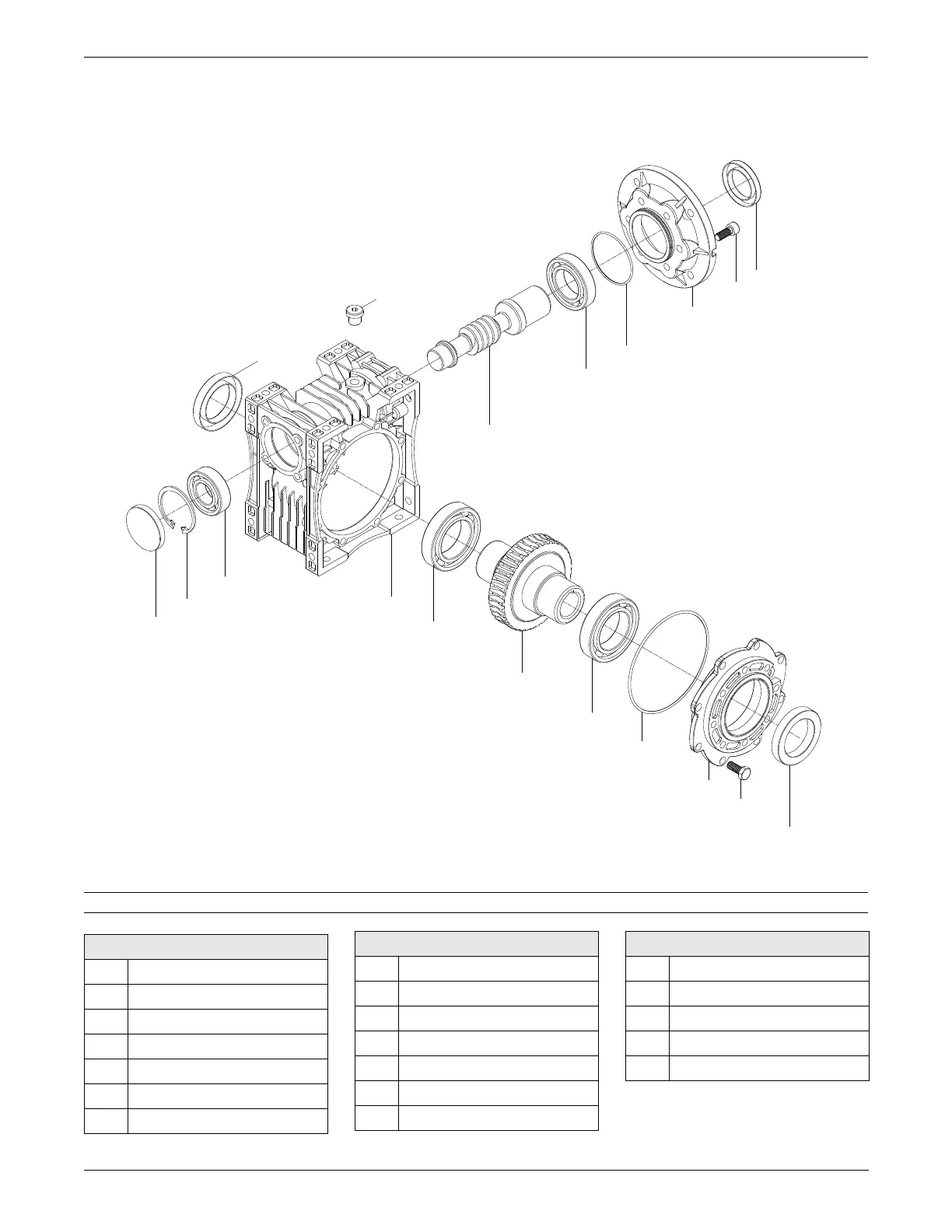

Standard E...00... type basic part diagram. Parts may differ for special applications.
1
2
3
4
5
6
7
8
11
10
9
12
13
14
15
16
17
18
19
Standard Part List
1Oil Seal
2Bolt
3Side Cover
4O-ring
5Bearing
6Worm Wheel
7Bearing
8Housing
9Closing Cap
10 Circlips
11 Bearing
12 Seal
13 Oil Plug
14 Worm Gear
Standard Part List
15 Bearing
16 O-Ring
17 Input Flange
18 Bolt
19 Seal
Standard Part List
