PART LIST OF STANDARD TYPE GEAR UNITS
Dana Incorporated IMM-0017EN - Installation and Maintenance Manual
4.8 ET...00 TYPES
IMPORTANT:

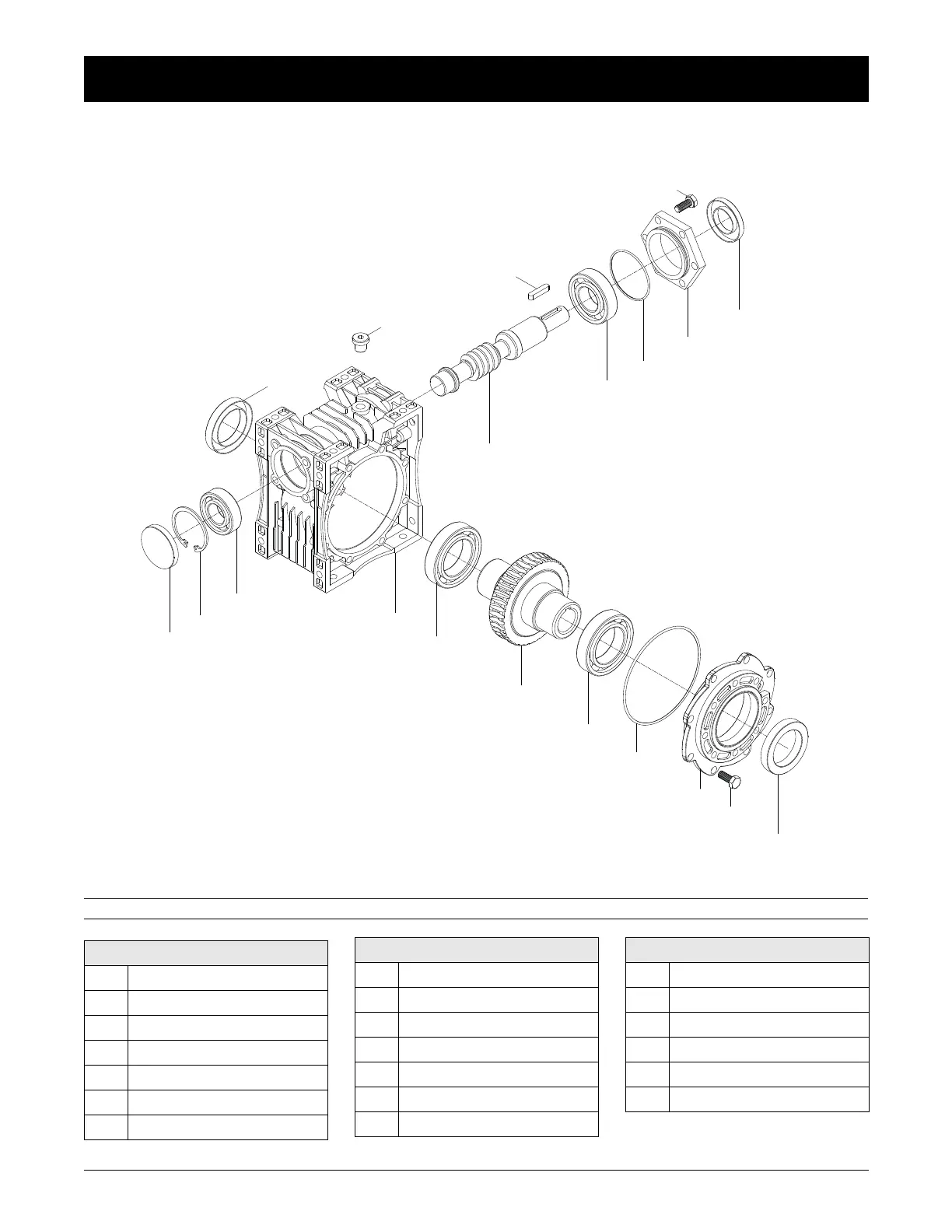

Standard ET...00... type basic part diagram. Parts may differ for special applications.
14
16
17
18
20
15
19
1
2
3
4
5
6
7
8
11
10
9
12
13
Standard Part List
1Seal
2Bolt
3Side Cover
4O-ring
5Bearing
6Worm Wheel
7Bearing
8Housing
9Closing Cap
10 Circlips
11 Bearing
12 Seal
13 Oil Plug
14 Worm Gear
Standard Part List
15 Key
16 Bearing
17 O-Ring
18 Flange
19 Bolt
20 Seal
