PART LIST OF STANDARD TYPE GEAR UNITS
Dana Incorporated IMM-0017EN - Installation and Maintenance Manual
4.10 ET...02 TYPES
IMPORTANT:

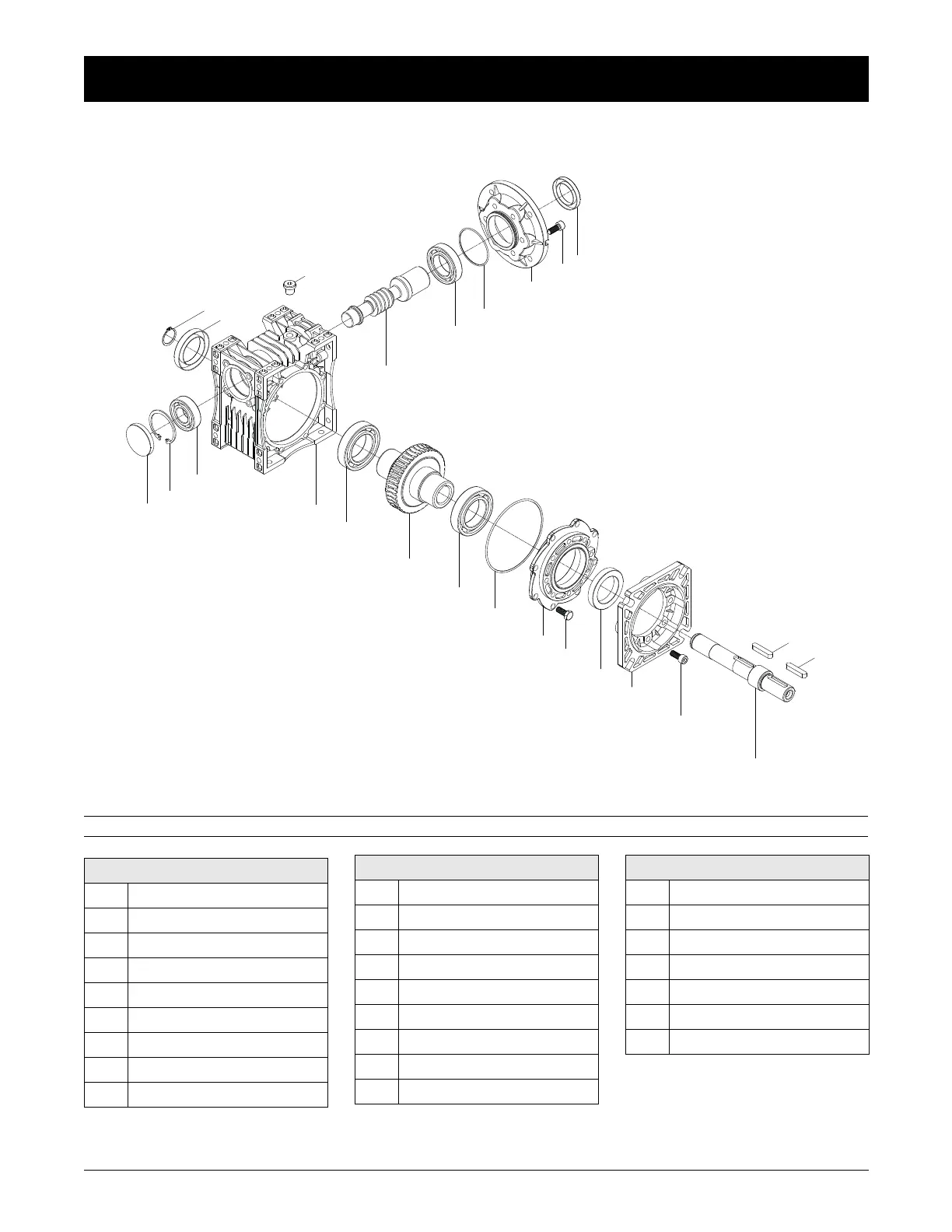

Standard ET..02... type basic part diagram. Parts may differ for special applications.
4
3
2
11
10
5
6
7
8
9
12
15
14
13
17
18
19
20
21
22
23
24
16
1
1
Standard Part List
1Key
2Solid Output Shaft
3Bolt
4Flange
5Seal
6Bolt
7Side Cover
8O-Ring
9Bearing
10 Worm Wheel
11 Bearing
12 Housing
13 Closing Cap
14 Circlips
15 Bearing
16 Circlips
17 Seal
18 Oil Plug
Standard Part List
19 Worm Gear
20 Key
21 Bearing
22 O-Ring
23 Input Flange
24 Bolt
25 Seal
