PART LIST OF STANDARD TYPE GEAR UNITS
Dana Incorporated IMM-0017EN - Installation and Maintenance Manual
4.12 ET...04 TYPES
IMPORTANT:

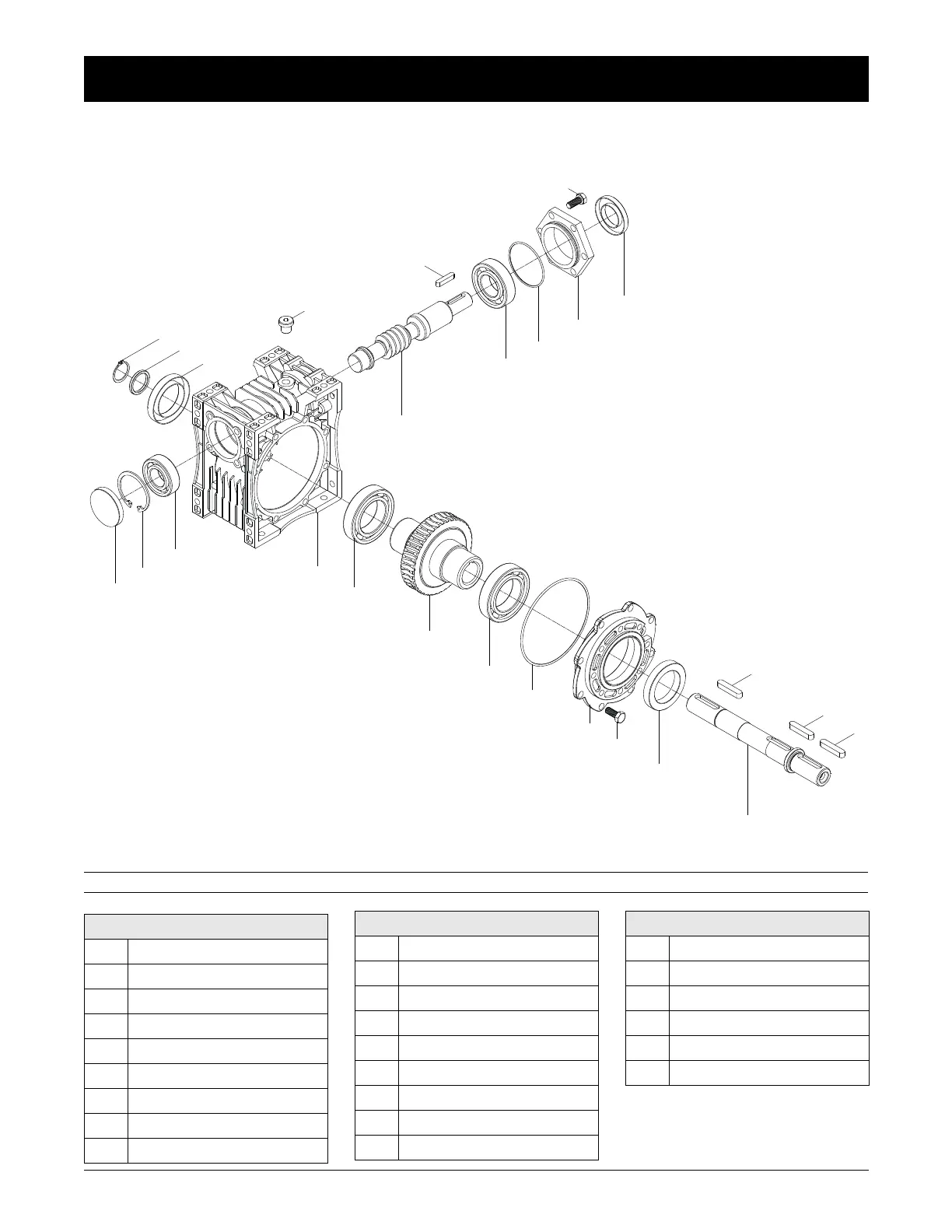

Standard ET...04... type basic part diagram. Parts may differ for special applications.
3
4
5
6
7
8
9
10
13
12
11
16
17
2
1
1
1
15
14
18
20
21
22
24
19
23
Standard Part List
1Key
2Solid Output Shaft
3Seal
4Bolt
5Side Cover
6O-Ring
7Bearing
8Worm Wheel
9Bearing
10 Housing
11 Closing Cap
12 Circlips
13 Bearing
14 Circlips
15 Washer
16 Seal
17 Oil Plug
18 Worm Gear
Standard Part List
19 Key
20 Bearing
21 O-Ring
22 Input Flange
23 Bolt
24 Seal
