PART LIST OF STANDARD TYPE GEAR UNITS
22Dana IncorporatedIMM-0017EN - Installation and Maintenance Manual
4.14 ET....08 TYPES
IMPORTANT:

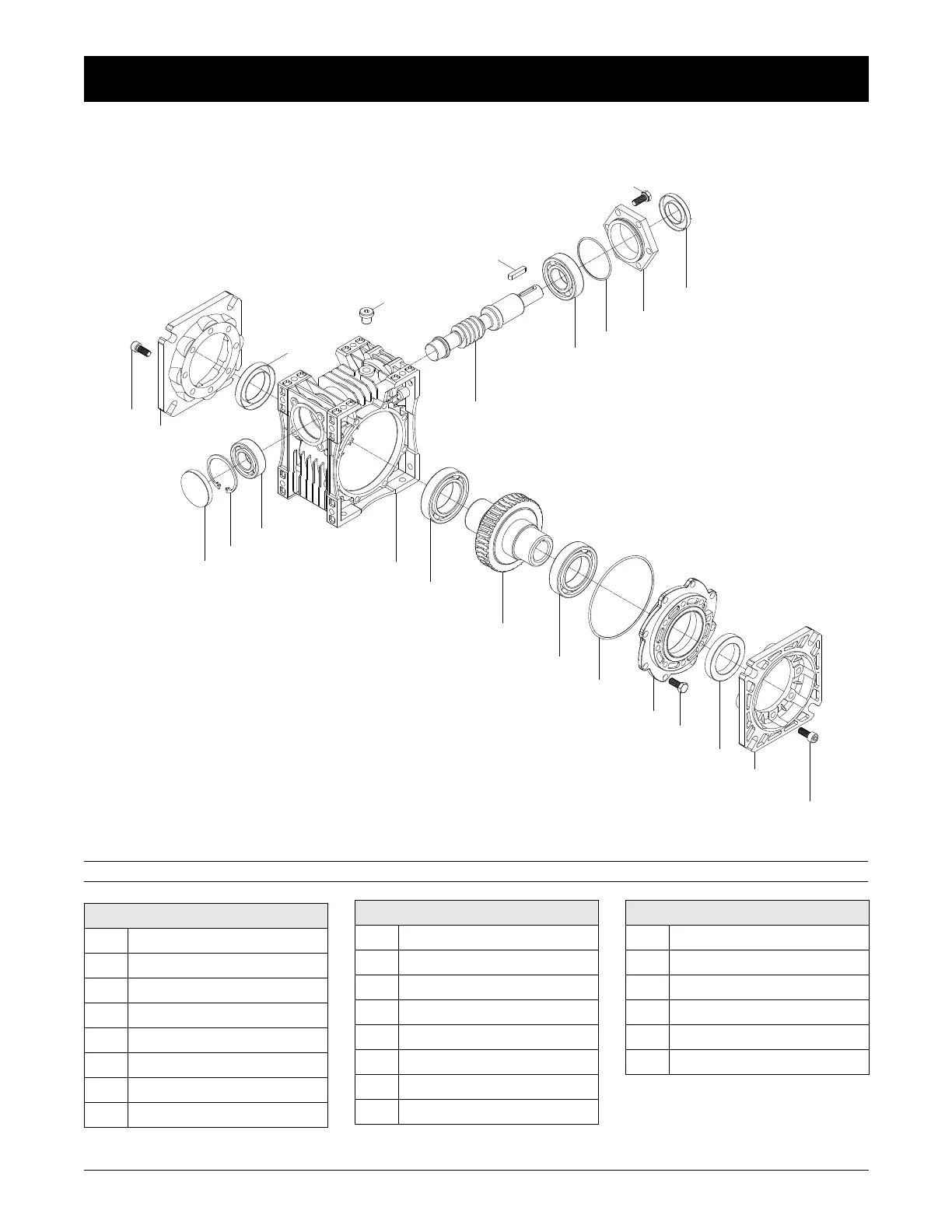

Standard ET...08... type basic part diagram. Parts may differ for special applications.
3
4
5
6
7
10
13
12
11
14
15
2
1
9
8
1
2
16
18
19
20
22
17
21
Standard Part List
1Bolt
2Output Flange
3Seal
4Bolt
5Side Cover
6O-Ring
7Bearing
8Worm Wheel
9Bearing
10 Housing
11 Closing Cap
12 Circlips
13 Bearing
14 Seal
15 Oil Plug
16 Worm Gear
Standard Part List
17 Key
18 Bearing
19 O-Ring
20 Input Flange
21 Bolt
22 Seal
Standard Part List
