MECHANICAL INSTALLATION
39Dana IncorporatedIMM-0017EN - Installation and Maintenance Manual

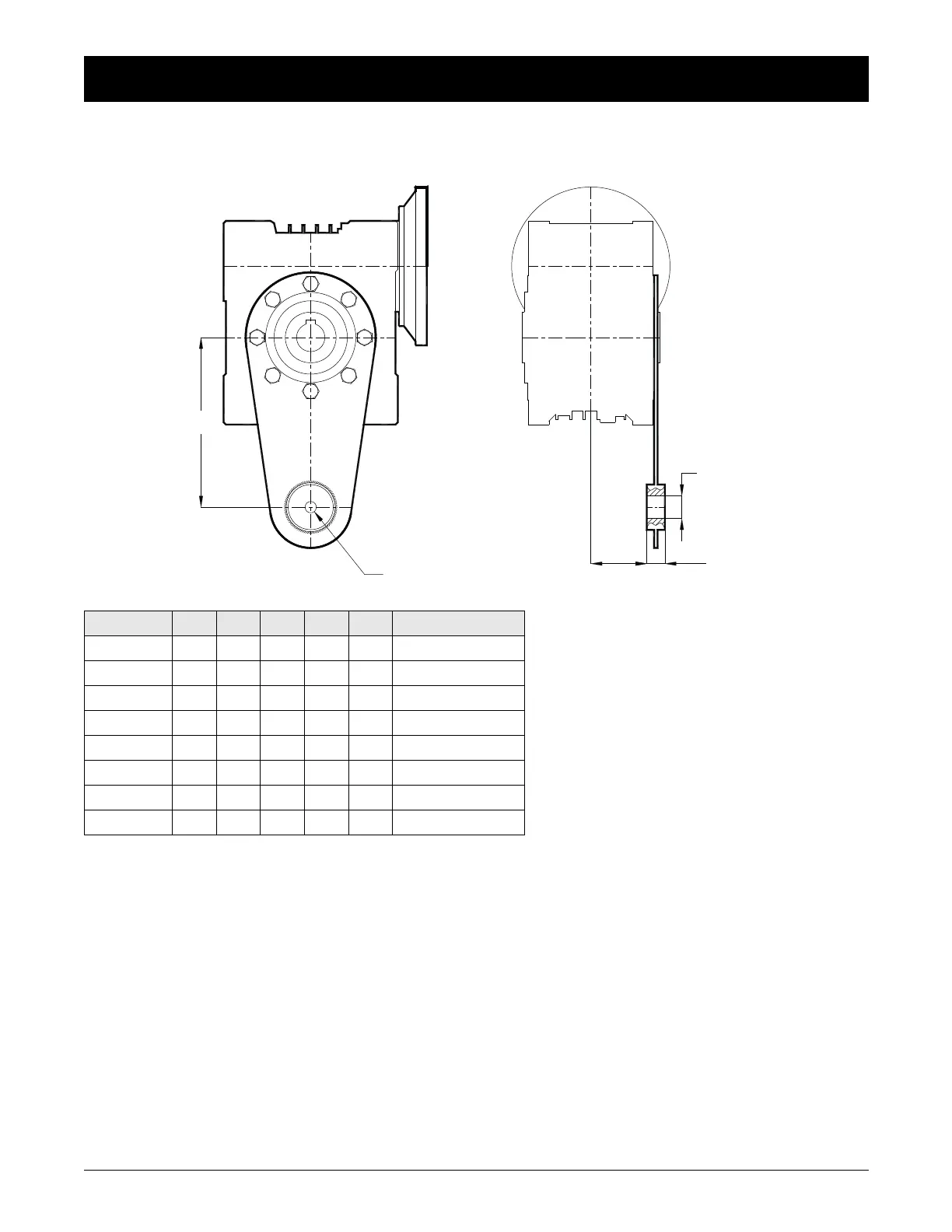

For the fixing bold position refer to the following dimensions
Table 7:
Type b e d h R Part No
E.030.. 22 14 10 85 25 9E030
E.040.. 31 14 10 100 25 9E040
E.050.. 38 16 10 100 32 9E050
E.063.. 49,5 16 10 150 36 9E063
E.075.. 49,5 25 20 200 45 9E075
E.080.. 49,5 25 20 200 45 9E080
E.100.. 57,5 30 25 250 50 9E100
E.125.. 72 30 25 300 55 9E125
R
h
d
eb
