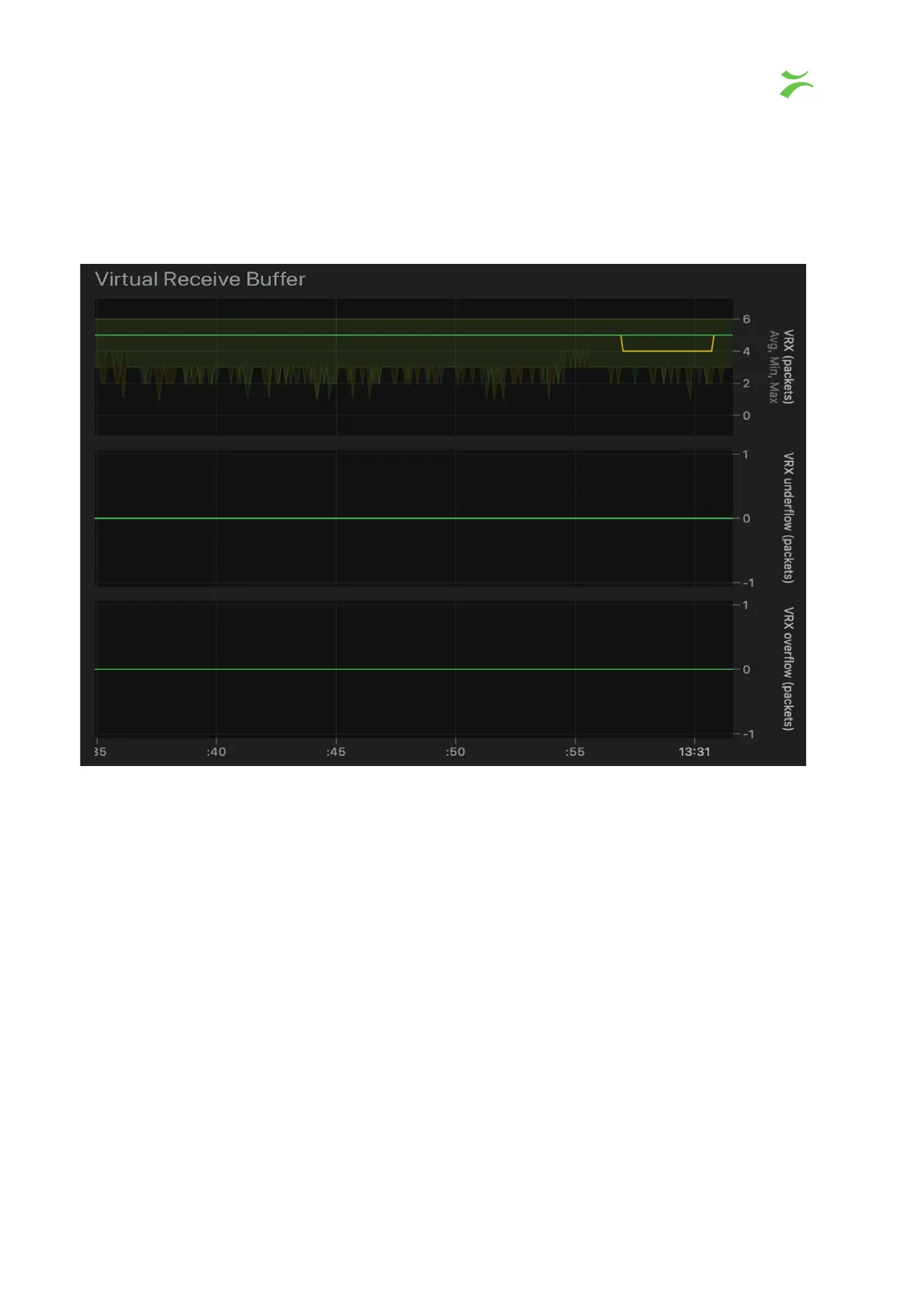

Virtual Receive Buffer (VRX)
This section contains three graphs. The VRX graph measures the number of packets
present during the steady state window. The next two graphs show if the Virtual receiver
buffer underflow or overflow.
Network Burstiness (C)
The first graph shows average and maximum packets in real time. The maximum value is
pre-defined based on the type of transmitter. The second graph shows the number of
packets exceeding the maximum allowed value.
VB440 Studio Probe User’s Manual v6.0 © Bridge Technologies Co AS 27
