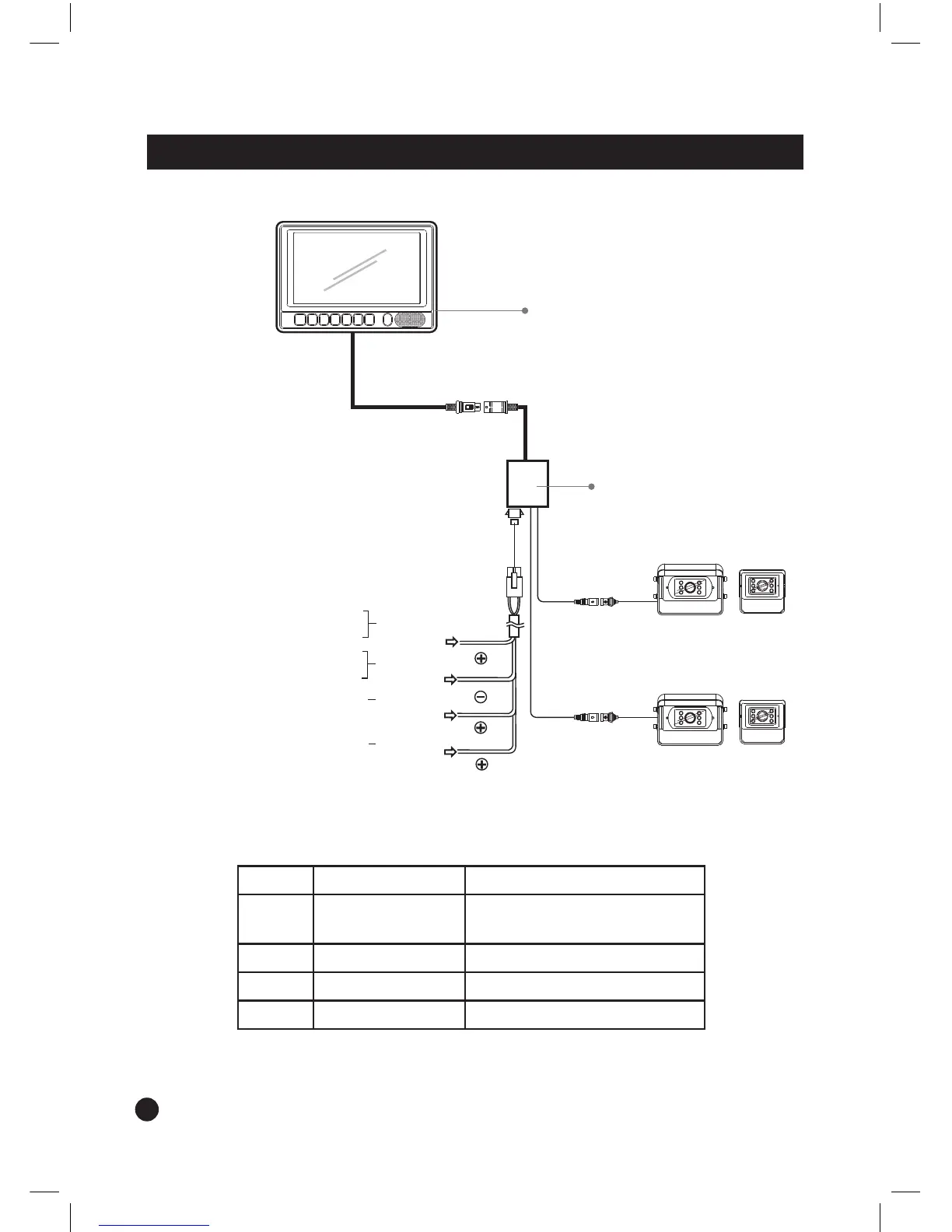

SYSTEM CONNECTIONS

POWER/TRIGGER WIRE FUNCTIONS

REF# WIRE COLOUR DESCRIPTION

1 RED POWER IN DC (10.5V TO

32V)

2 GREEN TRIGGER 1

3 WHITE TRIGGER 2

4 BLACK GROUND





















 
























