Infinite recording
When there are no events, it continues recording at intervals of 1 min.
1 min. 1 min. 1 min. 1 min. 1 min.
Continued…
3
Event recording
It performs recording 10 seconds before and 10 seconds after an event (20
seconds in total).
10 sec. before an event
EVENT
10 sec. after an event
• When the recorder is configured to Infinite and Event mode, any event
(impact) that is detected during normal recording, normal recording will stop and
event recording will start. After event recording, normal recording will resume.

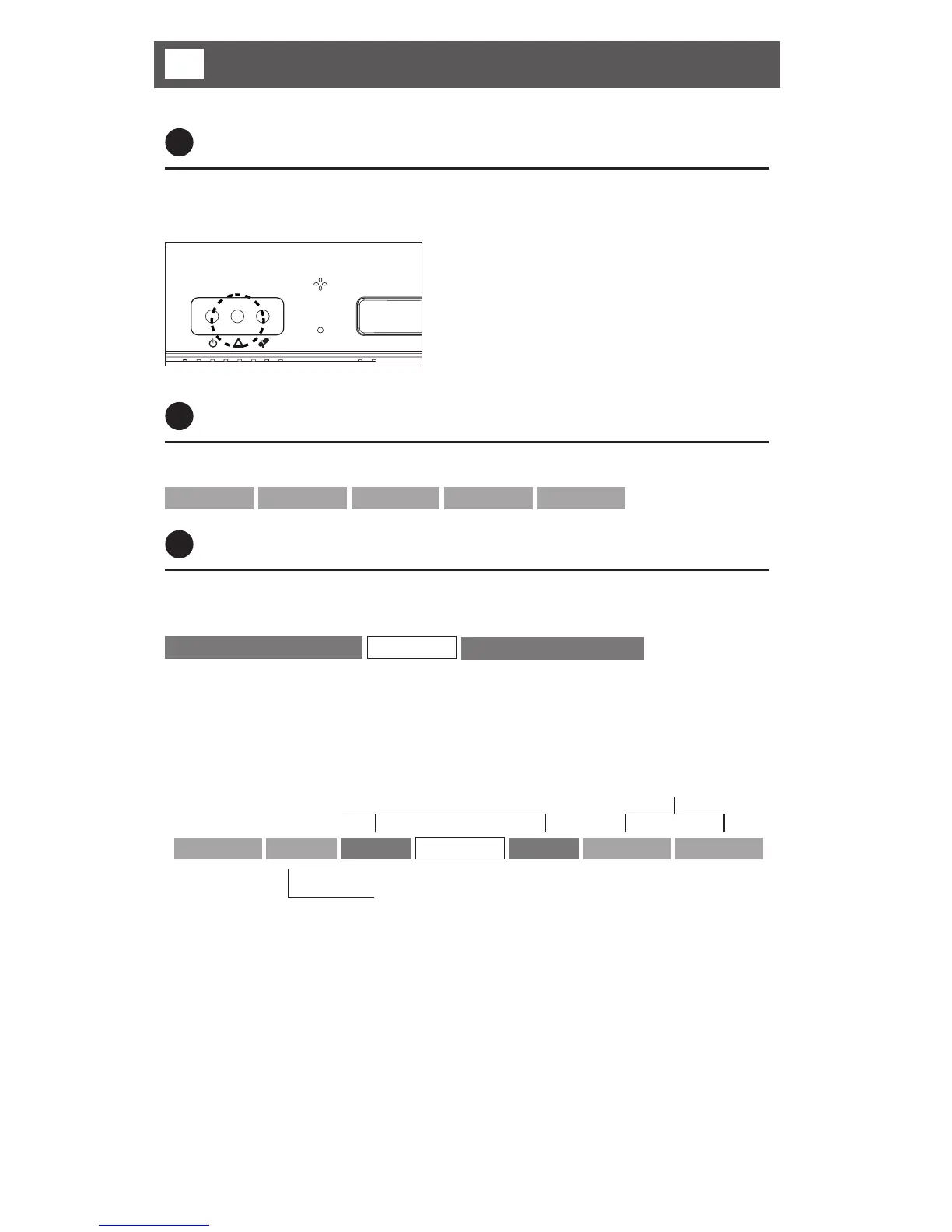

Example: If an event happens 1 minute and 50 seconds after starting recording:
1 min. 40 sec. 10 sec.
EVENT
10 sec. 1 min. 1 min.
Event recording
Normal recording
The portion up to 10 seconds before the event
from 1 minute to 1 minute and 40 seconds will be
saved as a file of normal recording (40 seconds).
Save as
a normal
recording
file. (1 min).
• ‘Event’ is when any shock or impact is detected. The higher the sensitivity, the
finer the shock or impact will be detected. The lower the sensitivity, the stronger
the shock or impact will be detected. It is possible to adjust the sensitivity of the
detection in the PC VIEWER MANAGER (refer to page 13).
When the recorder is set to Infinite and Event recording, the micro SD card
separates the storage space approximately 60% for Infinite 40% for Event.
When the recording is over the micro SD Card capacity, it overwrites the
recordings starting with the oldest one first.
6
Operation - Recording modes
1
Video recording
Once the installation is complete, turn on the vehicle ignition. The recording will
start when the recorder has finished starting up.
LED operation.
Infinite recording: Blue LED flashes at
intervals of 2.5 seconds.
Event recording: Blue LED flashes at
intervals of 0.5 second.
