Generator Troubleshooting
Figure 4

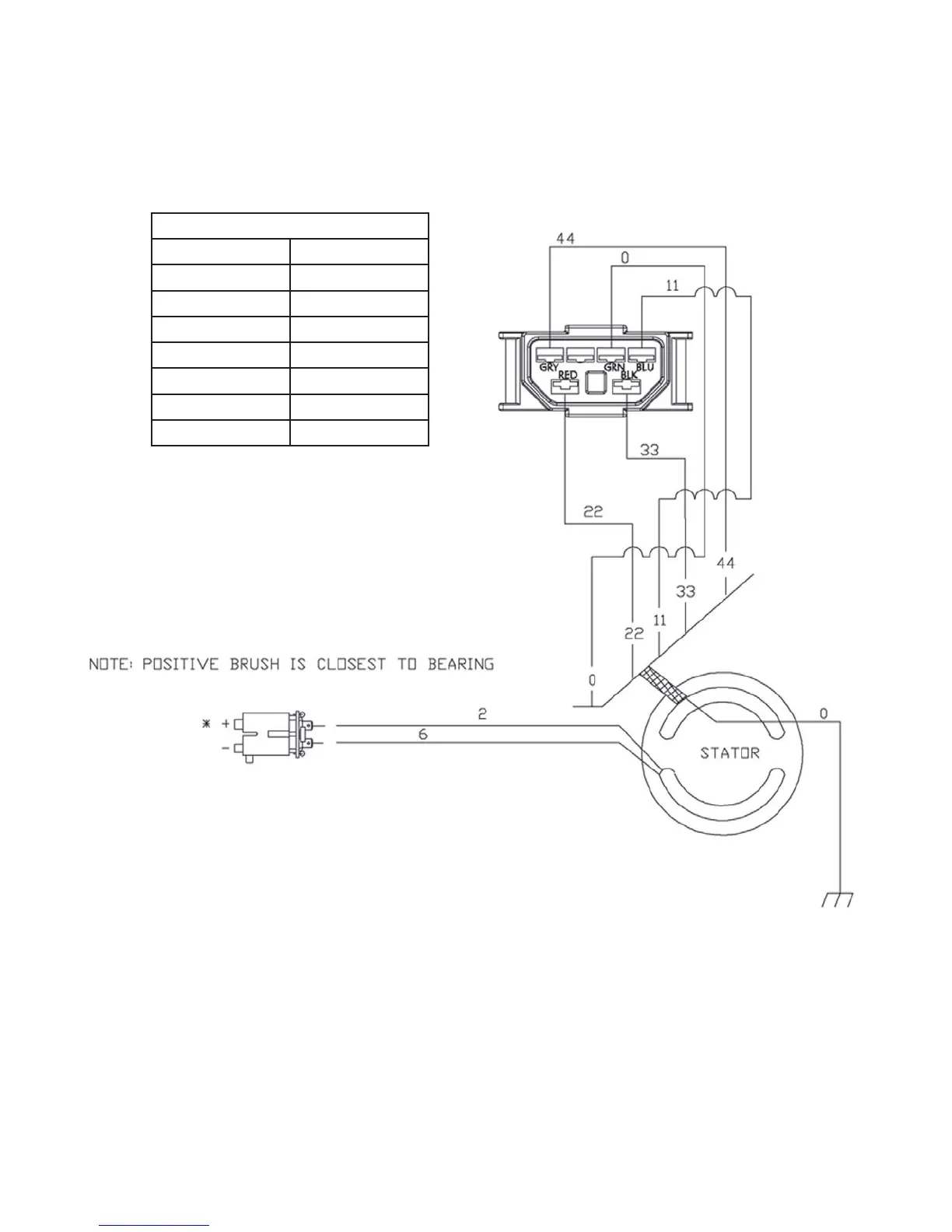

Refer to Figure 4 for wire identification and locations when
performing the troubleshooting procedures.
LEGEND
WIRE NUMBER WIRE COLOR
0 Green
2 Red
6 Blue
11 Blue
22 Red
33 Black
44 Gray
