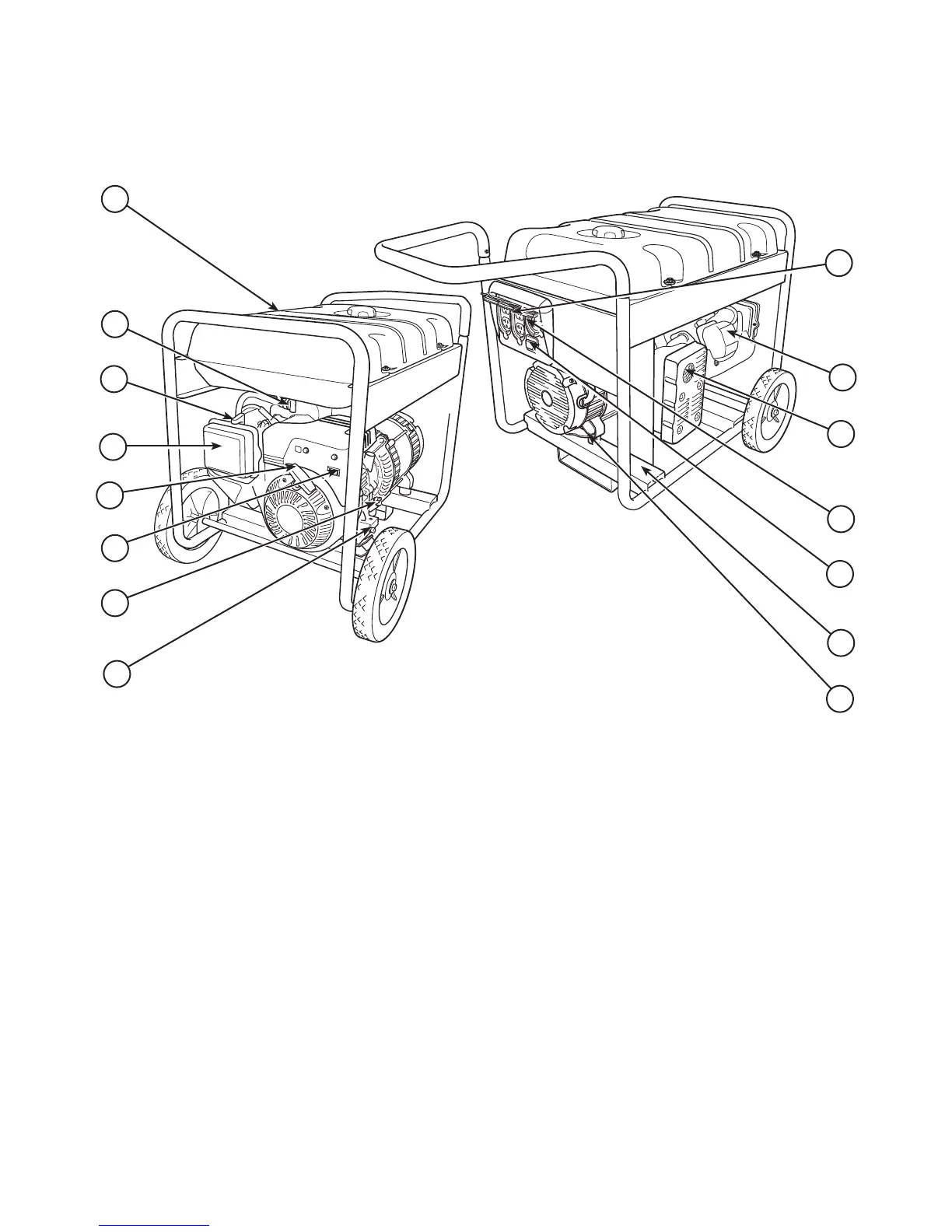

Generator Components
A - Fuel Tank — Capacity of seven (7) U.S. gallons (26.5 L)
B - Fuel Valve — Used to turn fuel supply on and off to
engine.
C - Choke Lever — Used when starting a cold engine.
D - Air Cleaner — Protects engine by filtering dust and
debris out of intake air.
E - Recoil Starter — Used to start the engine.
F - Engine Rocker Switch — Set this switch to “ON” before
using recoil starter. Set switch to “OFF” to stop engine.
G - Oil Fill Cap — Check and fill engine with oil here.
H - Oil Drain Plug — Drain engine oil here
J - Grounding Fastener — Consult your local agency having
jurisdiction for grounding requirements in your area.
K - Identification Label — Provides model, revision, and
serial number of generator. Please have this readily
available when calling for assistance.
L - Rocker Switch Circuit Breaker — The receptacles are
provided with a rocker switch circuit breaker to protect
the generator against electrical overload.
M - 120/240 Volt AC, 30 Amp Locking Receptacle — May
be used to supply electrical power for the operation of
120 and/or 240 Volt AC, 30 Amp, single phase, 60 Hz
electrical, lighting, appliance, tool, and motor loads.
N - Spark Arrester Muffler — Exhaust muffler lowers engine
noise and is equipped with a spark arrester screen.
P - Engine Data Tag — Provides model, type, trim, and date
code for the engine.
R - 120 Volt AC, 20 Amp, Duplex Receptacles — May be
used to supply electrical power for the operation of 120
Volt AC, 20 Amp, single phase, 60 Hz electrical, lighting,
appliance, tool, and motor loads.
A
B
C
D
E
F
G
H
J
K
L
M
N
R
P
