Item Part # Description
1 186059GS ADAPTER, Mounting, Alternator
2 204105GS ASSY., Rotor (Includes Item 8)
3 208368GS STATOR
4 186060GS RBC, with O-Ring (p/n 189197GS)
5 86308CGS HHCS, M6 - 1.0 x 130 SEMS
6 91825GS ASSY., Holder, Rectifier/Brush
7 66849GS TAPTITE, M5 - 0.8 x 16
8 65791GS BEARING
9 81917GS PIN, Roll, 4mm x 10

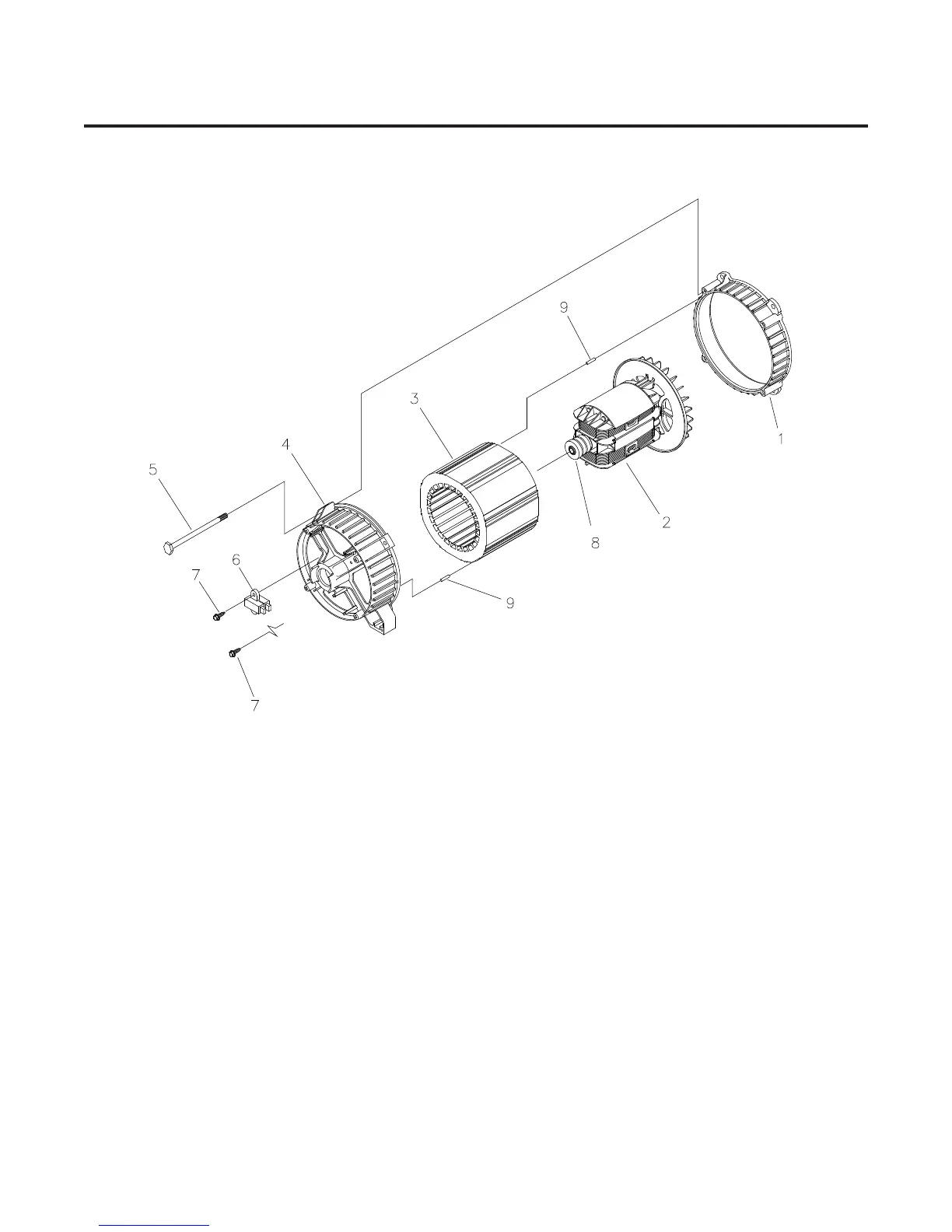

Alternator
NOTICE: Alternator Identification. Use this
exploded view on Model 030430 Generators that
have a Revision Number of 02.
See data tag for revision number.
