Features and Controls
Read this Operator’s Manual and safety rules before operating your pressure washer.
Compare the illustrations with your pressure washer, to familiarize yourself with the locations of various controls and
adjustments. Save this manual for future reference.
10 BRIGGSandSTRATTON.COM

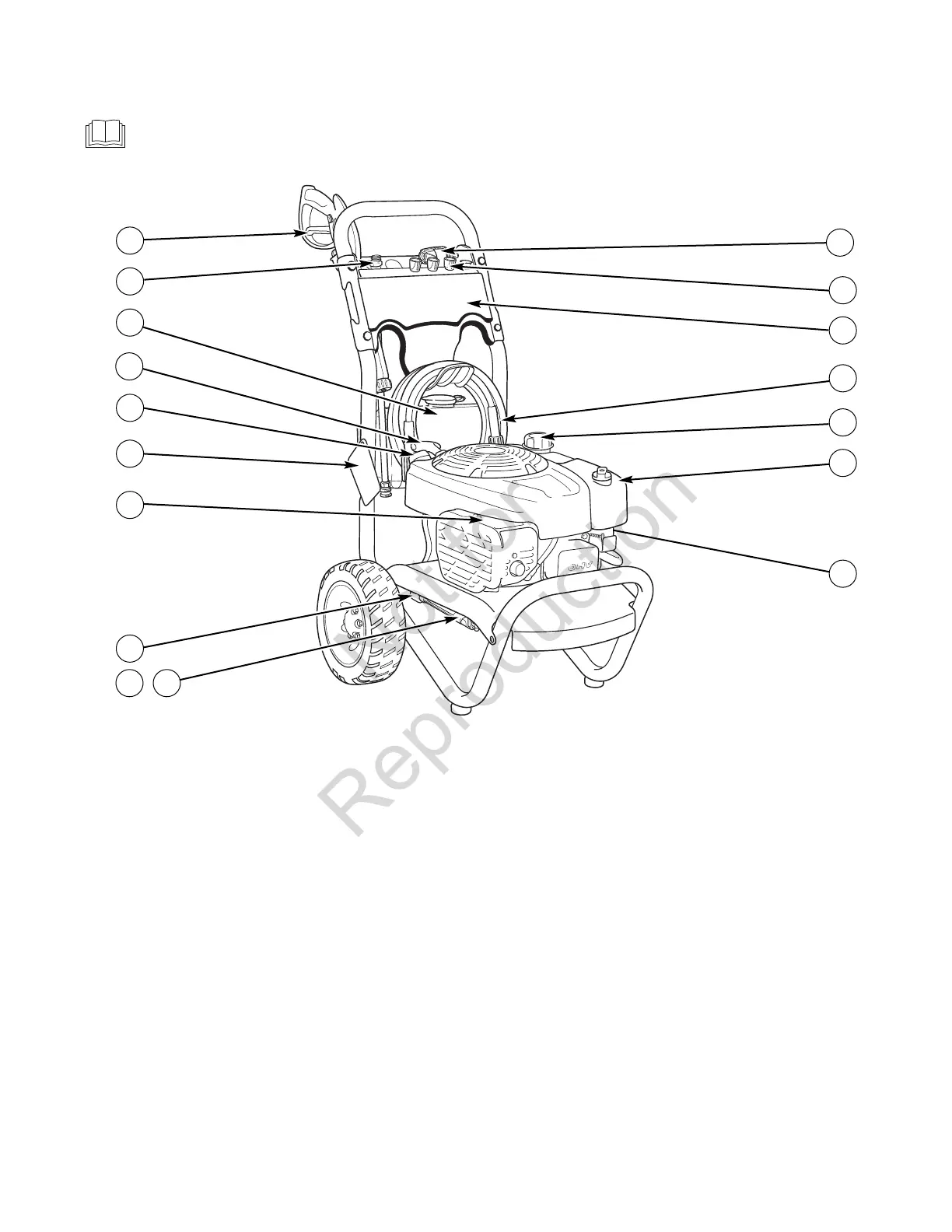

A - Spray Gun — Controls the application of water onto
cleaning surface with trigger device. Includes trigger lock.
B - Nozzle Extension with Quick Connect — Allows you to
switch between four different nozzles.
C - Cleaning Tank — Use to hold up to one gallon (3.78 l)
of pressure washer safe detergent in tank.
D - Recoil Starter — Used for starting the engine manually.
E - Oil Fill/Dipstick — Check, fill and drain engine oil here.
F - Warning/Operating Instructions Tag — Identifies hazards
and proper procedure to start/stop pressure washer.
G - Engine Identification — Provides model, type and code
of engine. Please have these readily available if calling for
assistance.
H - Water Inlet — Connection for garden hose.
J - Pump — Develops high pressure.
K - Automatic Cool Down System — Cycles water through
pump when water reaches 125°-155°F. Warm water will
discharge from pump onto ground. This system prevents
internal pump damage.
L - Engine Rocker Switch — Push this switch to on position
(I or ON) before using recoil starter. Push switch to off
position (O or OFF) for shutting off engine.
M - Air Filter — Protects engine by filtering dust and debris
out of intake air.
N - Fuel Tank — Fill tank with regular unleaded fuel. Always
leave room for fuel expansion.
P - High Pressure Hose — Connect one end to water pump
and the other end to spray gun.
R - Accessory Tray — Provides convenient storage for
standard and optional accessories, such as brushes,
turbo wands, etc.
S - Project Pro® Nozzles — Detergent, Max., General and
Delicate: for various high pressure cleaning applications.
T - Turbo Nozzle — Whirls a powerful pin-point jet of water
for intense cleaning.
Items Not Shown:
High Pressure Outlet — Connection for high pressure hose.
Identification Label (near rear of base plate) — Provides
model and serial number of pressure washer. Please have
these readily available if calling for assistance.
F
E
M
A
K
,
J
C
G
R
B
N
P
S
L
T
D
H
